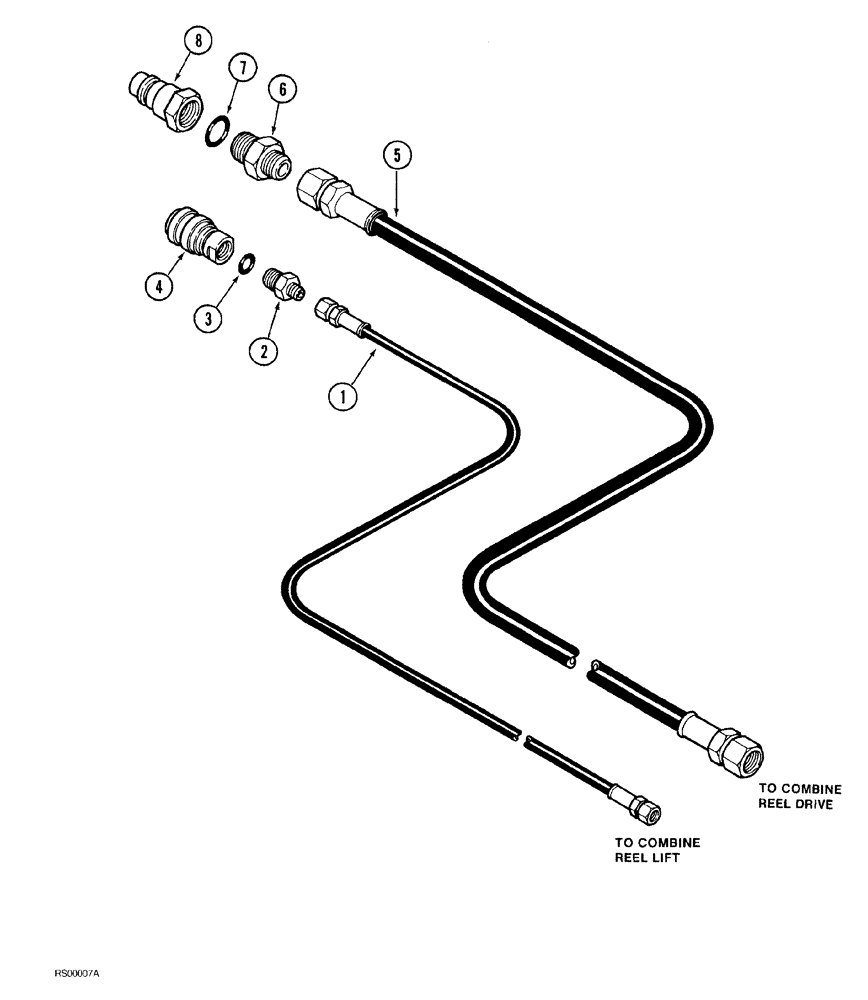

Запчасти Case IH 1015 (8-010) - HEADER TO COMBINE HYDRAULIC HOSES, FOR 1420, 1440, 1460 AND 1480 COMBINE (35) - HYDRAULIC SYSTEMS

1326596C91

PACKAGE

HOSE ATTACHMENT, Serial Range: header-combine

1шт.

1

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

68 inch (1727 mm) long, header to combine reel lift

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref 3

1шт.

4

REF

INSTRUCTION

COUPLING female, 9/16-18 inch thread, See Fig. 8-12

1шт.

5

165678C91

HOSE

3/8 ID x 66 inch, header to combine reel drive

1шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

REF

INSTRUCTION

COUPLING male, 7/8-14 inch thread, See Fig. 8-12

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
