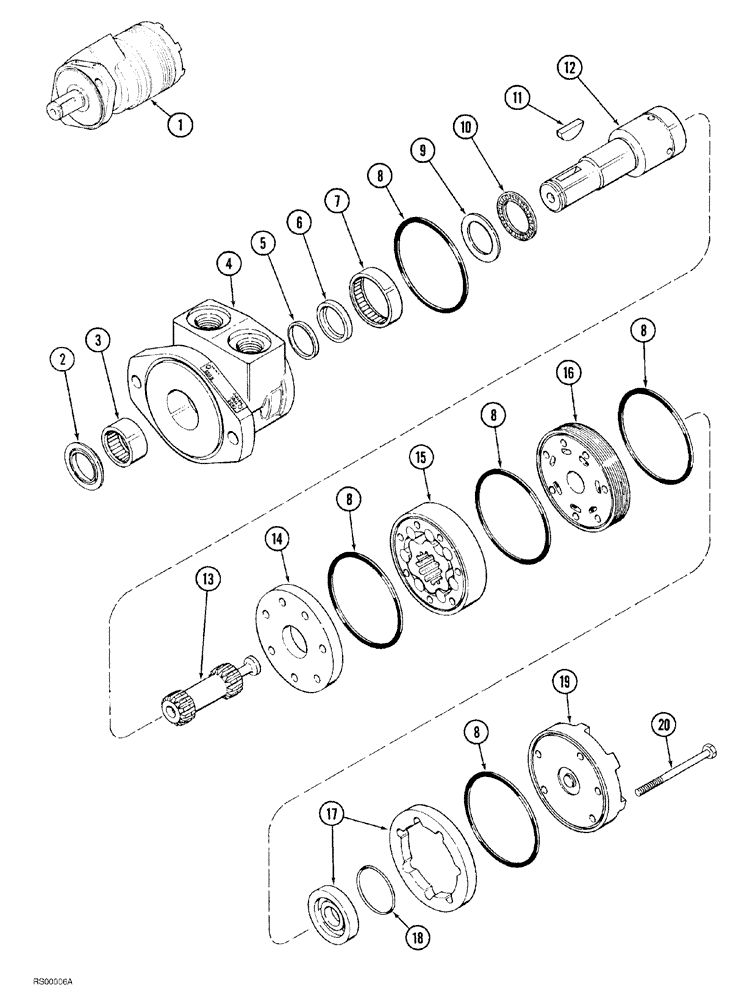

Запчасти Case IH 1015 (8-008) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

1

1986619C1

MOTOR, HYDRAULIC

ASSEMBLY, Includes Ref: 2-20

1шт.

1986619C1R

REMAN-HYD MOTOR

1015, S/N JJC0310000 & Before

1шт.

1986619C1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

Part of seal kit 1980817C1

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING needle

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

5

NSS

NOT SOLD SEPARAT

RING backup

1шт.

Part of seal kit 1980817C1

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

Part of seal kit 1980817C1

1шт.

7

NSS

NOT SOLD SEPARAT

BEARING needle

1шт.

8

NSS

NOT SOLD SEPARAT

RING seal

1шт.

Part of seal kit 1980817C1

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER thrust

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

11

NSS

NOT SOLD SEPARAT

KEY shaft

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT coupling

1шт.

13

NSS

NOT SOLD SEPARAT

LINK drive

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE wear

1шт.

15

NSS

NOT SOLD SEPARAT

ROTOR drive motor

1шт.

16

NSS

NOT SOLD SEPARAT

MANIFOLD plate

1шт.

17

NSS

NOT SOLD SEPARAT

COMMUTATOR motor

1шт.

18

NSS

NOT SOLD SEPARAT

RING seal

1шт.

Part of seal kit 1980817C1

1шт.

19

NSS

NOT SOLD SEPARAT

COVER end

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT special

5шт.

1980817C1

SEAL KIT

seal, Includes Refs. 2, 5, 6, 8 and 18

1шт.
