Запчасти Case IH 1015 (8-006) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

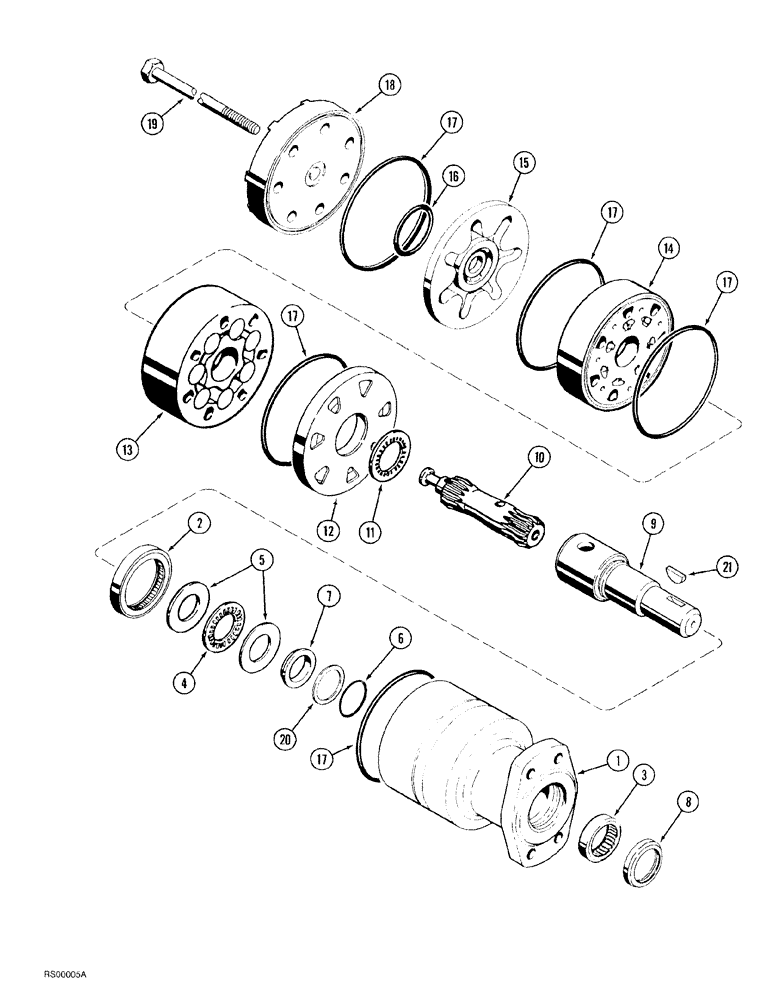

Схема запчастей Case IH 1015 - (8-006) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

93404C1

MOTOR, HYDRAULIC

ASSEMBLY, hydraulic, (Order 1986619C1) Also order 2 elbows 218-5146, 2 bolts 433-824 and 2 nuts 231-4118, Includes Ref: 1-21

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY, motor, Includes Ref: 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING needle, large

1шт.

3

NSS

NOT SOLD SEPARAT

BEARING needle, small

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING thrust, shaft

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER thrust, bearing

2шт.

6

NSS

NOT SOLD SEPARAT

RING backup, seal, housing

1шт.

Part of seal kit 1980156C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL housing

1шт.

Part of seal kit 1980156C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL shaft, outer

1шт.

Part of seal kit 1980156C1

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT coupling

1шт.

10

NSS

NOT SOLD SEPARAT

LINK drive

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING thrust, link

1шт.

12

NSS

NOT SOLD SEPARAT

PLATE wear

1шт.

13

NSS

NOT SOLD SEPARAT

ROTOR drive motor

1шт.

14

NSS

NOT SOLD SEPARAT

MANIFOLD plate

1шт.

15

NSS

NOT SOLD SEPARAT

COMMUTATOR motor

1шт.

16

NSS

NOT SOLD SEPARAT

RING seal, small

1шт.

Part of seal kit 1980156C1

1шт.

17

NSS

NOT SOLD SEPARAT

RING seal, large

5шт.

Part of seal kit 1980156C1

1шт.

18

NSS

NOT SOLD SEPARAT

COVER end

1шт.

19

NSS

NOT SOLD SEPARAT

BOLT special

7шт.

20

NSS

NOT SOLD SEPARAT

WASHER flat

1шт.

Part of seal kit 1980156C1

1шт.

21

NSS

NOT SOLD SEPARAT

KEY shaft

1шт.

1980156C1

SEAL KIT

seal, Includes Refs. 6, 7, 8, 16, 17 and 20

1шт.

Выбрано товаров: 30
