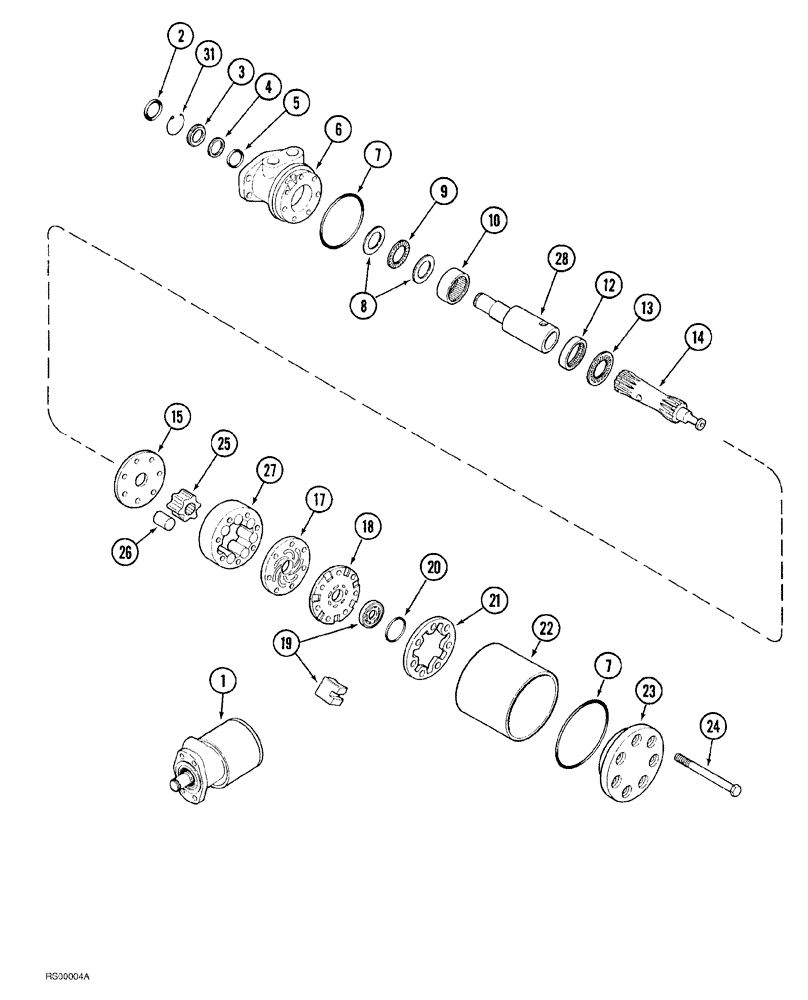

Запчасти Case IH 1015 (8-004) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

1

173828C91

MOTOR, HYDRAULIC

ASSEMBLY, Order 1986619C1, Also order 2 elbows 218-5146, 2 bolts 433-824 and 2 nuts 231-4118, Includes Ref: 2-31

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL oil

1шт.

Part of seal kit P/N 174397C2

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER back up

1шт.

Part of seal kit P/N 174397C2

1шт.

4

NSS

NOT SOLD SEPARAT

WASHER

1шт.

Part of seal kit P/N 174397C2

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL oil

1шт.

Part of seal kit P/N 174397C2

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING motor

1шт.

7

NSS

NOT SOLD SEPARAT

RING seal

2шт.

Part of seal kit P/N 174397C2

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER thrust

2шт.

9

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

10

NSS

NOT SOLD SEPARAT

BEARING shaft

1шт.

12

NSS

NOT SOLD SEPARAT

BEARING link

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING thrust

1шт.

14

NSS

NOT SOLD SEPARAT

LINK drive

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE wear

1шт.

17

NSS

NOT SOLD SEPARAT

PLATE manifold

1шт.

18

NSS

NOT SOLD SEPARAT

MANIFOLD motor

1шт.

19

NSS

NOT SOLD SEPARAT

COMMUTATOR motor

1шт.

20

NSS

NOT SOLD SEPARAT

RING seal

1шт.

Part of seal kit P/N 174397C2

1шт.

21

NSS

NOT SOLD SEPARAT

RING commutator

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE motor

1шт.

23

NSS

NOT SOLD SEPARAT

COVER end

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT through

1шт.

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY, motor, Includes Ref: 25-27

1шт.

25

NSS

NOT SOLD SEPARAT

ROTOR motor

1шт.

26

NSS

NOT SOLD SEPARAT

VANE rotor

7шт.

27

NSS

NOT SOLD SEPARAT

STATOR rotor

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT coupling

1шт.

31

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

Part of seal kit P/N 174397C2

1шт.

174397C2

SEAL KIT

seal, Includes Refs. 2, 3, 4, 5, 7, 20 and 31

1шт.
