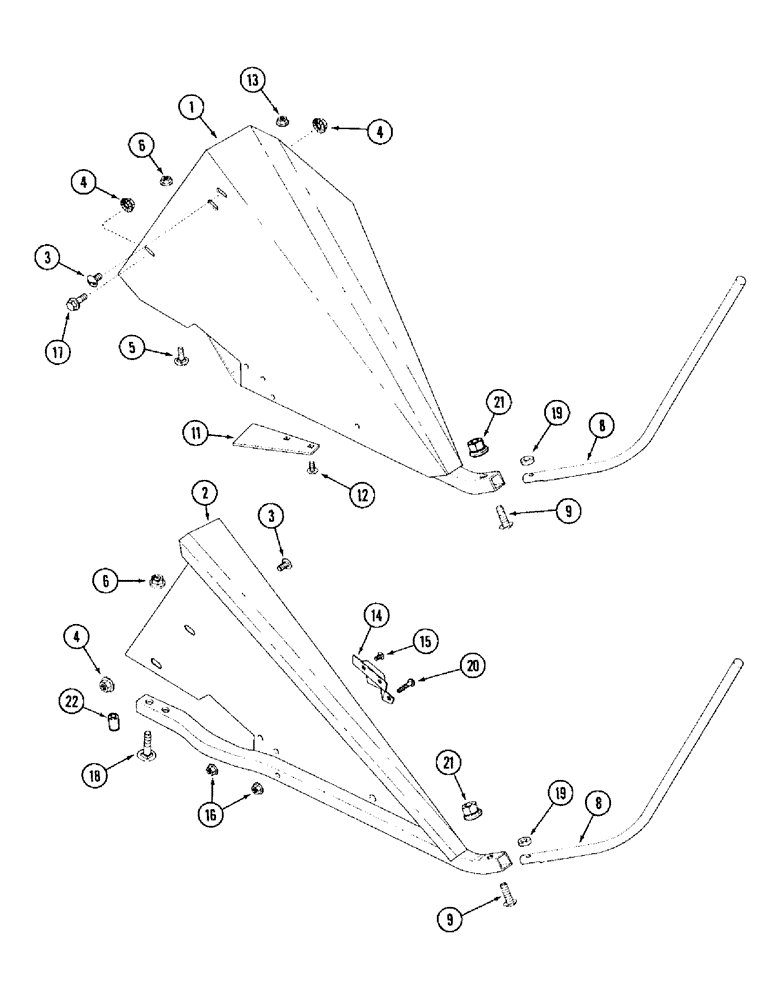

Запчасти Case IH 1010 (9D-10) - DIVIDERS (58) - ATTACHMENTS/HEADERS

1

132645A1

DIVIDER

- crop, left-hand

1шт.

2

131684A2

DIVIDER

- crop, right-hand

1шт.

4

231-5146

FLANGE NUT,3/8"-16

5шт.

5

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

6шт.

8

131686A1

ROD

- divider

2шт.

9

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

- slotted truss head, 5/16 NC x 1-1/2 inch

2шт.

11

1316704C1

LARGE PLATE

PLATE - divider, left-hand

1шт.

12

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

14

1326343C1

DEFLECTOR

- divider, right-hand

1шт.

ITEM # 14 PER HERB HOLLAND, THERE IS NO LEFT HAND DEFLECTOR.

1шт.

15

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

2шт.

16

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

17

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

1шт.

18

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

2шт.

19

86224H

SPACER,1/4" Pipe x 3/8"

2шт.

20

340-12524

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/2"

- pan head, Phillips, 1/4 NC x 1-1/2 inch

1шт.

21

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

2шт.

22

573713R1

SPACER,3/4" Tube x 11/16"

- 3/4 x 11/16 tube

2шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

4шт.
