(9D-08) - MAIN FRAME, 22.5, 25.0 AND 30.0 FOOT HEADER

Запчасти Case IH 1010 (9D-08) - MAIN FRAME, 22.5, 25.0 AND 30.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

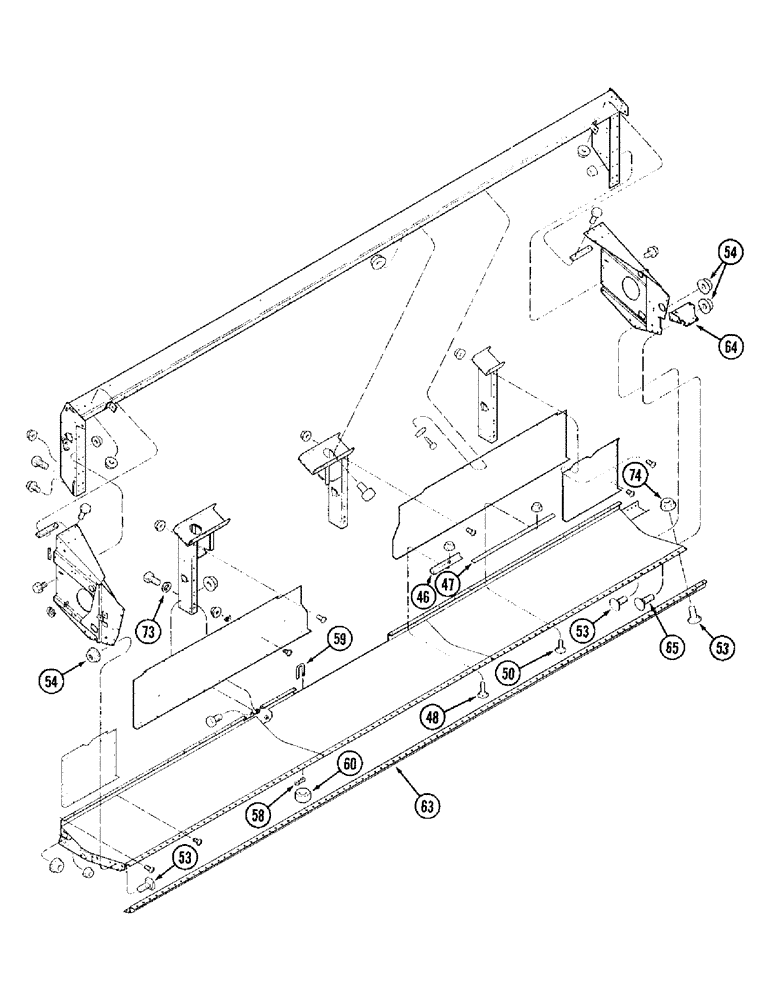

Схема запчастей Case IH 1010 - (9D-08) - MAIN FRAME, 22.5, 25.0 AND 30.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS
60
46
59
47
74
58
65
50
48
53
53
63
54
64
53
73
54
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

46

1316564C1

ANGLE

- stripper extension

2шт.

47

189825C2

STRIPPER

BAR - auger stripper, adjustable

1шт.

48

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

1шт.

50

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

53

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

15шт.

54

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

58

1307371C1

LATCH

BAR - feeder latch

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

- feeder latch

2шт.

60

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.

63

REF

INSTRUCTION

BAR - cutter (See Page 9B-3 or 9B-5)

1шт.

64

125450A1

SUPPORT

- knife box

1шт.

65

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

2шт.

73

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

4шт.

74

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

9шт.
