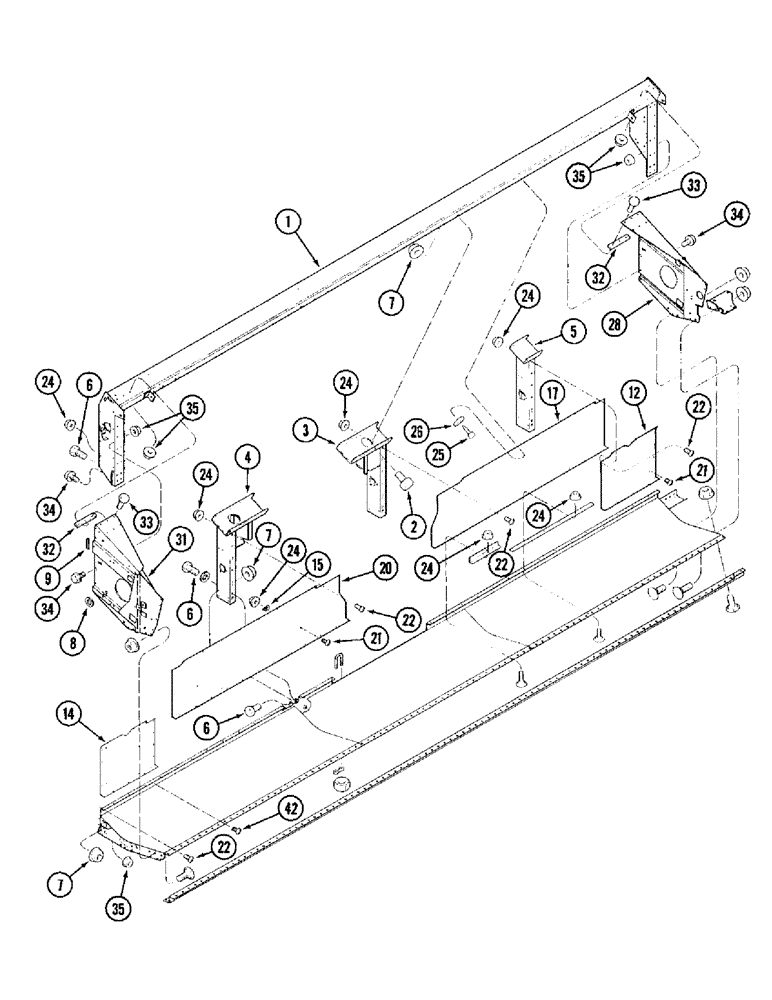

Запчасти Case IH 1010 (9D-06) - MAIN FRAME, 22.5, 25.0 AND 30.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

133213A1

FRAME

BEAM - main, with decals (22.5 foot)

1шт.

1

133214A1

FRAME

BEAM - main, with decals (25.0 foot)

1шт.

1

133215A1

FRAME

BEAM - main, with decals (30.0 foot)

1шт.

2

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

20шт.

3

1307374C5

SUPPORT

POST - vertical, left-hand

1шт.

4

1307375C5

SUPPORT

POST - vertical, right-hand

1шт.

5

1307376C4

SUPPORT

POST - intermediate, left-hand

1шт.

5

128414A2

SUPPORT

POST - intermediate, right-hand

1шт.

6

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

40шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

56шт.

8

135370A1

PROTECTION STRIP

TRIM - edge, 194 mm (7-5/8 inch) long, cut from 1330108CX bulk trim, lift cylinder hose, front

1шт.

9

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

TRIM - edge, 76 mm (3 inch) long, cut from 1330108CX bulk trim, lift cylinder hose, rear

1шт.

12

1307093C1

SHEET

- rear, left-hand (22.5 foot)

1шт.

12

1307095C1

SHEET

- rear, left-hand (25.0 foot)

1шт.

12

1307097C1

SHEET

- rear, left-hand (30.0 foot)

1шт.

14

1307094C1

SHEET

- rear, right-hand (22.5 foot)

1шт.

14

1307096C1

SHEET

- rear, right-hand (25.0 foot)

1шт.

14

1307098C1

SHEET

- rear, right-hand (30.0 foot)

1шт.

15

133973A1

ANGLE

- chain

4шт.

17

1326062C92

SHIELD

SHEET - center rear, left-hand, with decals

1шт.

20

1326063C93

SHIELD

SHEET - center rear, right-hand, with decals

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

5шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

39шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

25

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

1шт.

26

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

28

130816A2

SHEET

- end, left-hand

1шт.

31

130817A1

SHEET

- end, right-hand

1шт.

32

1313966C1

BAR

- shim

2шт.

33

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

6шт.

34

409-7612

BOLT,3/8"-16 x 1.09" OAL

16шт.

35

231-5146

FLANGE NUT,3/8"-16

22шт.

42

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

1шт.

45

132962A1

BEAM

- lower (22.5 foot)

1шт.

45

132960A1

BEAM

- lower (25.0 foot)

1шт.

45

132959A1

BEAM

- lower (30.0 foot)

1шт.

1308461C1

ASSEMBLY

support for bottom sheet, left hand

1шт.

1308462C1

ASSEMBLY

support for bottom sheet, right hand

1шт.
