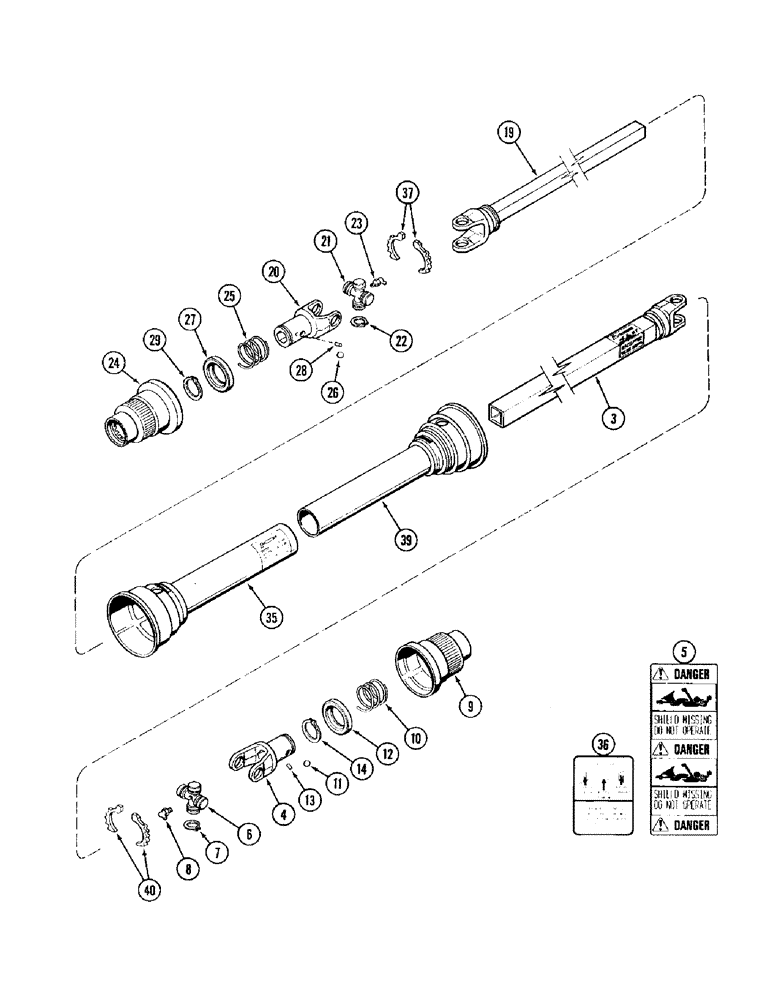

Запчасти Case IH 1010 (9B-36) - KNIFE DRIVE SHAFT, 22.5, 25.0 AND 30.0 FOOT HEADER (HAYES-DANA) (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1316989C91
SHAFT
ASSEMBLY - drive, header (With decals)
1шт.
1326740C91
DRIVE SHAFT
SHAFT ASSEMBLY - female drive
1шт.
3
NSS
NOT SOLD SEPARAT
TUBE - female, outer
1шт.
4
NSS
NOT SOLD SEPARAT
YOKE - outer
1шт.
5
1326528C1
DECAL
- Danger, shield missing, do not operate
1шт.
757443
U-JOINT SPIDER
KIT - cross and bearing, drive shaft
1шт.
6
NSS
NOT SOLD SEPARAT
CROSS ASSEMBLY - bearing
1шт.
7
606177R1
SNAP RING
RING - retaining, 0.078 inch thick
1шт.
7
1986059C1
SNAP RING
RING - retaining, 0.058 inch thick
1шт.
8
219-40
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease, 65 degree, 1/8 PT x 7/8 inch
1шт.
9
1326580C1
COLLAR
- yoke
1шт.
10
1326585C1
SPRING
- shield
1шт.
11
21505R1
BALL,1/2" Dia, Stainless
- 1/2 inch
3шт.
12
1326583C1
COLLAR
RACE - shaft retainer
1шт.
13
19877R1
DOWEL
PIN - dowel, 3/16 x 1/2 inch
3шт.
14
100-11187
SNAP RING,#187, Ext
Ring, Snap, #187, Ext
1шт.
1326743C91
DRIVE SHAFT
SHAFT ASSEMBLY - male drive
1шт.
19
NSS
NOT SOLD SEPARAT
SHAFT - male, inner
1шт.
20
NSS
NOT SOLD SEPARAT
YOKE - drive
1шт.
757443
U-JOINT SPIDER
KIT - cross and bearing, drive shaft
1шт.
21
NSS
NOT SOLD SEPARAT
CROSS ASSEMBLY - bearing
1шт.
22
606177R1
SNAP RING
RING - retaining, 0.078 inch thick
1шт.
22
1986059C1
SNAP RING
RING - retaining, 0.058 inch thick
1шт.
23
219-40
LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease, 65 degree, 1/8 PT x 7/8 inch
1шт.
24
1326580C1
COLLAR
- yoke
1шт.
25
1326585C1
SPRING
- shield
1шт.
26
21505R1
BALL,1/2" Dia, Stainless
- 1/2 inch
3шт.
27
1326583C1
COLLAR
RACE - shaft retainer
1шт.
28
19877R1
DOWEL
PIN - dowel, 3/16 x 1/2 inch
3шт.
29
100-11187
SNAP RING,#187, Ext
Ring, Snap, #187, Ext
1шт.
1326746C91
SHIELD
ASSEMBLY - outer, with decal
1шт.
35
NSS
NOT SOLD SEPARAT
SHIELD - outer
1шт.
36
1326579C1
DECAL
- lubricate journal and bearing
1шт.
37
1980787C1
BEARING ASSY
BEARING KIT - shield
1шт.
1326749C91
SHIELD
ASSEMBLY - inner
1шт.
39
NSS
NOT SOLD SEPARAT
SHIELD - inner
1шт.
40
1980787C1
BEARING ASSY
BEARING KIT - shield
1шт.
Выбрано товаров: 37
