(9B-28) - KNIFE DRIVE SHAFT, 15.0, 17.5 AND 20.0 FOOT HEADER (WALTERSHIELD)

Запчасти Case IH 1010 (9B-28) - KNIFE DRIVE SHAFT, 15.0, 17.5 AND 20.0 FOOT HEADER (WALTERSHIELD) (58) - ATTACHMENTS/HEADERS

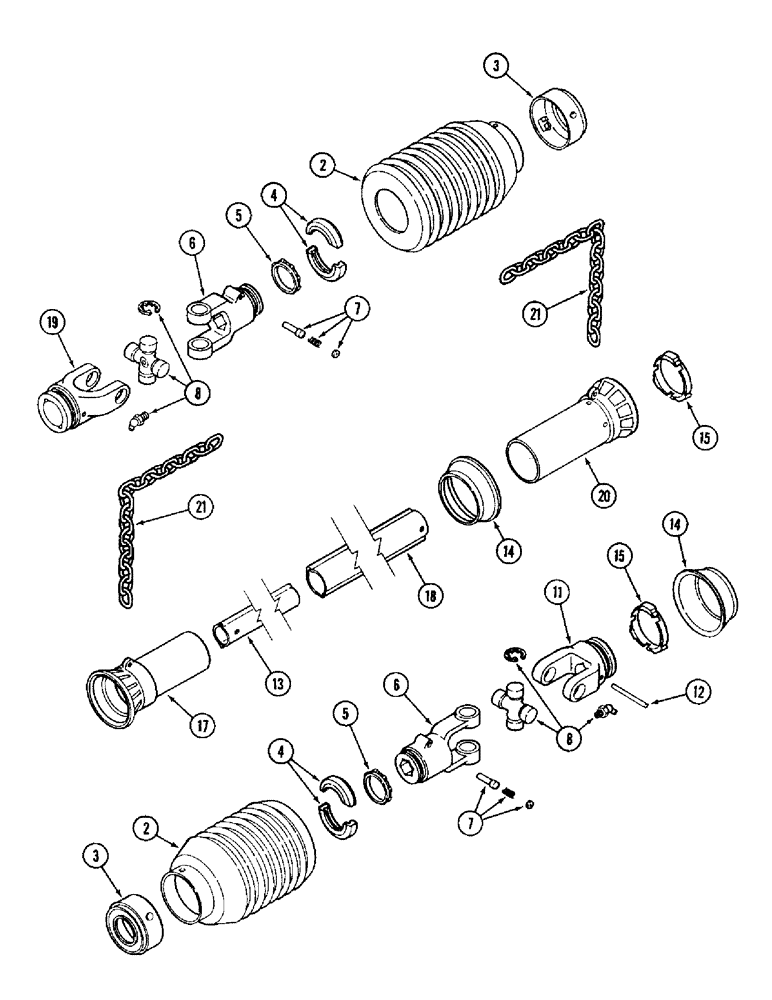

Схема запчастей Case IH 1010 - (9B-28) - KNIFE DRIVE SHAFT, 15.0, 17.5 AND 20.0 FOOT HEADER (WALTERSHIELD) (58) - ATTACHMENTS/HEADERS
3
21
20
12
6
11
5
7
5
2
19
18
8
14
14
17
8
4
13
3
4
15
15
7
2
6
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1316216C91

SHAFT

- drive, header

1шт.

2

1326494C1

SHIELD

- drive shaft

2шт.

3

1326500C1

COLLAR

- drive shaft

2шт.

4

1326498C1

RING

- outer

4шт.

5

1326499C1

WASHER

BEARING - ball

2шт.

6

1326490C1

YOKE

ASSEMBLY - drive shaft

2шт.

7

1281458C1

KIT

- pin

1шт.

8

1281444C1

KIT

KIT - cross and bearing, drive shaft

2шт.

11

1281445C1

YOKE

- end, male

1шт.

12

30907R1

LOCK PIN,M10 x 70, Slotted

PIN - slotted spring, 10 x 70 mm

2шт.

13

1326501C1

TUBE,800 mm Length

- drive shaft, inner

1шт.

14

1326495C1

SHIELD

FLANGE - guard

2шт.

15

1281450C1

RING

- bearing

2шт.

17

1326503C1

SHIELD

- outer

1шт.

18

1326502C1

TUBE

- drive shaft, outer

1шт.

19

1326493C1

YOKE

- end, female

1шт.

20

1326504C1

TUBE

- shield, inner

1шт.

21

1281453C1

CHAIN (AG)

CHAIN - anti-rotation

1шт.
