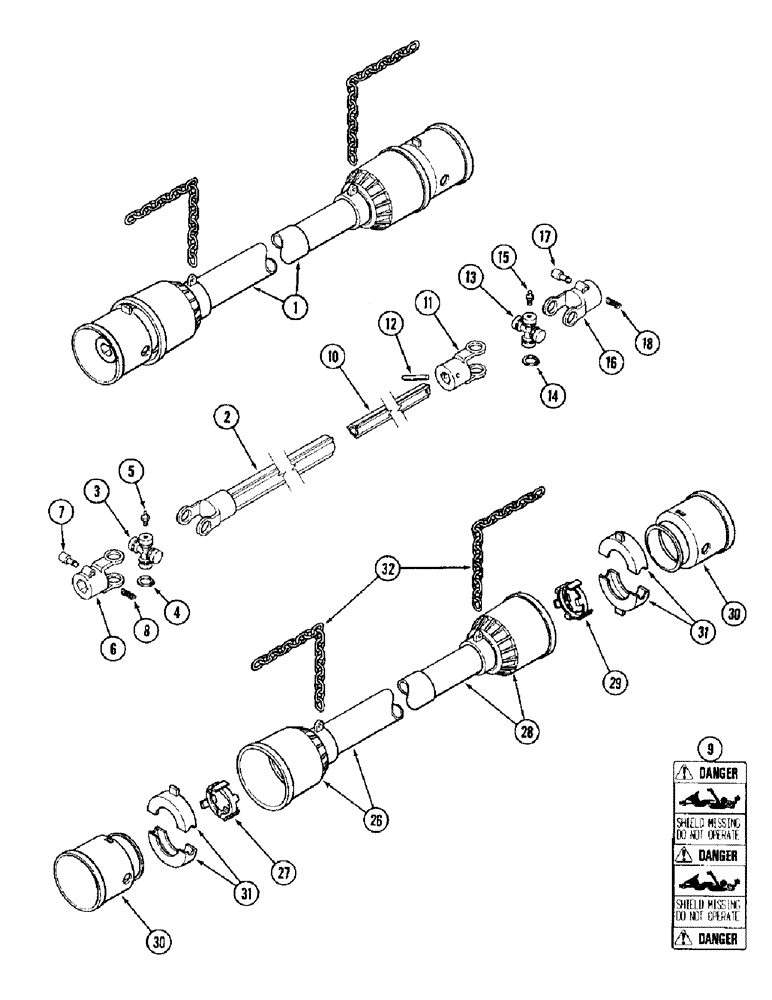

Запчасти Case IH 1010 (9B-26) - KNIFE DRIVE SHAFT, 15.0, 17.5 AND 20.0 FOOT HEADER (BONDIOLI & PAVESI) (58) - ATTACHMENTS/HEADERS

1

1313569C92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, auger (With decals)

1шт.

1326658C92

DRIVE SHAFT

SHAFT ASSEMBLY - female drive

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY - outer

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing

1шт.

3

NSS

NOT SOLD SEPARAT

CROSS AND BEARING ASSEMBLY - drive shaft

1шт.

4

933916R1

SNAP RING,M24, Int

RING - internal retaining, 26 mm

4шт.

5

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, 6 x 1.00 mm, straight

2шт.

6

1325022C1

YOKE

- drive shaft

1шт.

1311950C1

KIT

- push pin, yoke

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - yoke release

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

9

1326528C1

DECAL

- Danger, shield missing, do not operate

1шт.

1326623C92

DRIVE SHAFT

SHAFT ASSEMBLY - male drive

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - inner

1шт.

11

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

12

838-5845

LOCK PIN,M8 x 45, Slotted

PIN - roll, 8 x 45 mm

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing

1шт.

13

NSS

NOT SOLD SEPARAT

CROSS AND BEARING ASSEMBLY - drive shaft

1шт.

14

933916R1

SNAP RING,M24, Int

RING - internal retaining, 26 mm

4шт.

15

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, 6 x 1.00 mm, straight

2шт.

16

1325022C1

YOKE

- drive shaft

1шт.

1311950C1

KIT

- push pin, yoke

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - yoke release

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

26

1326627C92

INNER SHIELD

SHIELD ASSEMBLY - outer

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

28

1326630C92

OUTER SHIELD

SHIELD ASSEMBLY - inner

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

30

1326625C91

SHIELD

ASSEMBLY - yoke

2шт.

31

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

32

1326632C1

CHAIN

- drive shaft

2шт.
