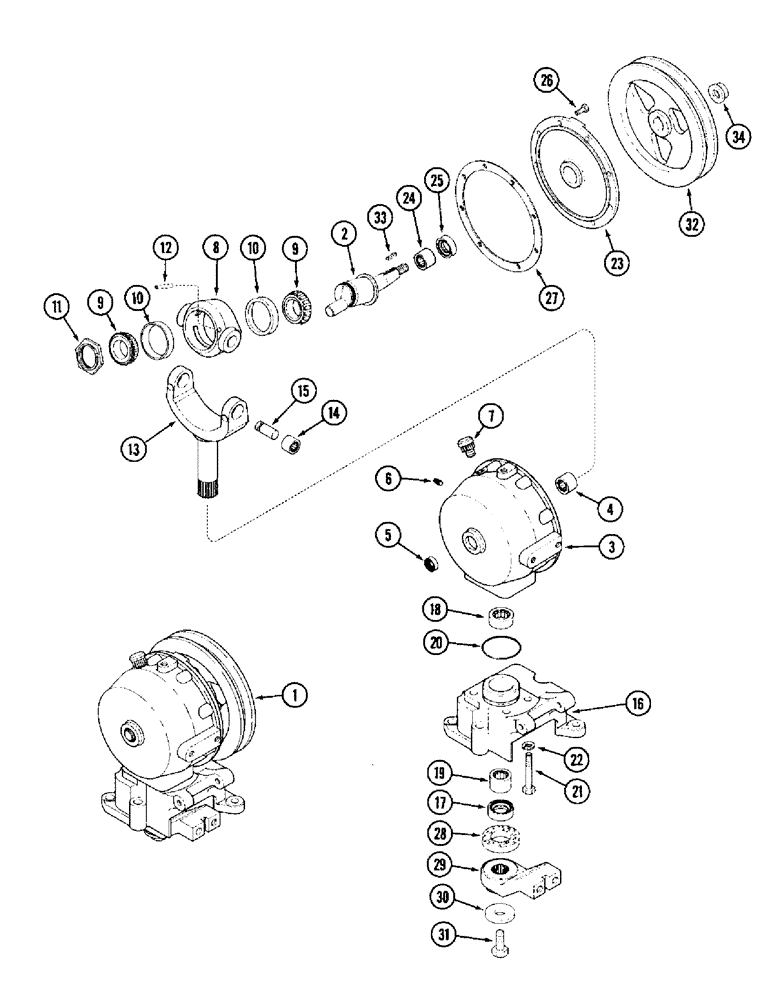

Запчасти Case IH 1010 (9B-14) - KNIFE DRIVE BOX ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

133157A2

WOBBLE BOX

BOX ASSEMBLY - knife drive

1шт.

2

182581A1

SHAFT

- wobble

1шт.

3

130820A1

HOUSING

ASSEMBLY - knife box

1шт.

4

140436A1

NEEDLE BEARING,Needle, 22.23mm ID x 34.92mm OD x 25.4mm W

BEARING - needle

1шт.

5

544667R91

SEAL,22.23mm ID x 31.85mm OD x 4.78mm Thk

SEAL - oil

1шт.

6

217-407

PLUG,Hex Hd, 3/8" - 18 NPT

1шт.

7

219-436

BREATHER,3/8" - 18 NPT, Short, W/ Washer

- straight, 3/8 PT x 1-1/2 inch, housing

1шт.

8

62520C2

TRUNNION

- wobble shaft

1шт.

9

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

CONE - tapered roller bearing

2шт.

10

364462C1

BEARING CUP,82.55mm OD x 16.51mm W

CUP - tapered roller bearing

2шт.

11

133466A1

BEARING LOCK NUT

- bearing lock, special

1шт.

12

38-32024

PIN,5/16" x 1 1/2", Coiled

2шт.

130822A2

YOKE

ASSEMBLY - trunnion, wobble shaft

1шт.

13

182580A1

YOKE

- trunnion, wobble shaft

1шт.

14

550839R91

BEARING, NEEDLE

BEARING - needle

2шт.

15

141162A1

STUD

- trunnion

2шт.

16

128962A1

SUPPORT

ASSEMBLY - wobble box

1шт.

17

101295C1

OIL SEAL

- oil

1шт.

18

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

BEARING - needle

1шт.

19

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING - needle

1шт.

20

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

21

136322C1

LOCK BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

BOLT - hex dry lock, special, 5/8 NC x 2-1/4 inch, grade 8

4шт.

22

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

130821A1

COVER

ASSEMBLY - knife drive box

1шт.

23

62526C1

COVER

- knife drive box

1шт.

24

F60368

NEEDLE BEARING

BEARING - needle

1шт.

25

62527C1

OIL SEAL,25.4mm ID x 41.35mm OD x 6.5mm Thk

- oil

1шт.

26

117045C1

LOCK BOLT

BOLT - hex, special, 3/8 NC x 1 inch

8шт.

27

62525C2

GASKET,0.76mm Thk

- cover

1шт.

28

116955C1

GASKET,41.27mm ID x 76.2mm OD x 14.22mm Thk

GASKET - felt

1шт.

29

126314A2

ARM

- crank

1шт.

30

116954C1

WASHER

- flat, special, 5/32 x 2-13/32 x 5/16 inch

1шт.

31

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

1шт.

32

138775A1

PULLEY

- driven, knife

1шт.

33

Q53

KEY,1/4" Sq x 1", Par

1шт.

34

414089C1

FLANGE NUT,5/8" - 18

NUT - hex flange, special, 5/8 inch NF, grade 8

1шт.
