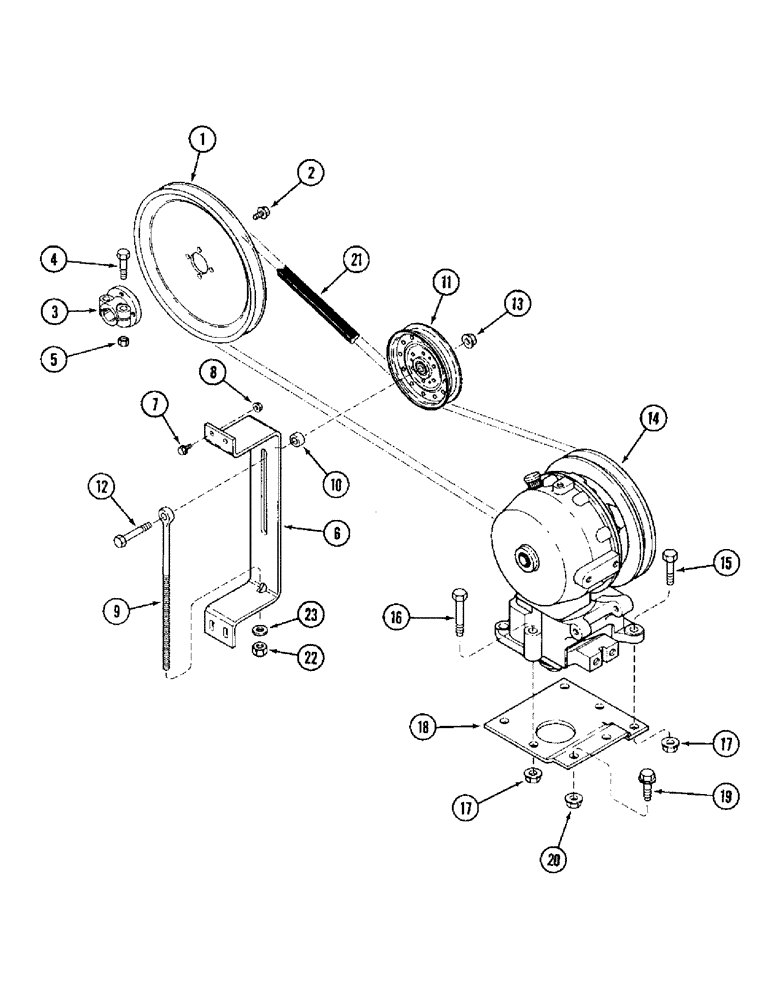

Запчасти Case IH 1010 (9B-12) - KNIFE DRIVE (58) - ATTACHMENTS/HEADERS

1

125959A1

PULLEY

- drive, 500 RPM, 267 mm OD

1шт.

1

125962A1

PULLEY

- drive, 600 RPM, 318 mm OD (See Note A)

1шт.

1

126012A1

PULLEY

- drive, 460 RPM, 245 mm OD (See Note B)

1шт.

2

133587A1

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, W/ Scotch Grip

BOLT - hex flange, self-locking, special, 3/8 NC x 3/4 inch

4шт.

3

125966A1

HUB

- knife drive pulley

1шт.

4

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

131445A1

SUPPORT

- knife drive ldler

1шт.

7

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

9

132230A1

EYEBOLT,1/2" - 13 x 344mm

BOLT - eye, special, knife drive tightener

1шт.

10

132231A1

SPACER

- tightener bolt

1шт.

11

1338456C1

IDLER

- idler, 6 inch OD

1шт.

12

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

13

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

1шт.

14

REF

INSTRUCTION

BOX ASSEMBLY - knife drive (See Page 9B-14)

1шт.

15

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

4шт.

16

326-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

BOLT, Hex, 5/8"-11 x 3 1/2", G8

1шт.

17

232-53110

FLANGE NUT,Flg, 5/8"-11

NUT - hex flange, self-locking, 5/8 inch NC

5шт.

18

126316A1

LARGE PLATE

PLATE - knife box support

1шт.

19

414077C1

BOLT,Hex, 5/8" - 18 x 1 3/4"

- hex flange, special, 5/8 NC x 1-3/4 inch

2шт.

20

414089C1

FLANGE NUT,5/8" - 18

NUT - hex flange, special, 5/8 inch NF, grade 8

2шт.

21

1316573C2

V-BELT,22.33 mm W x 2481.22 mm L

Drive, For 500 and 460 RPM Drive 22.33 mm W x 2481.22 mm L

1шт.

21

1316574C2

V-BELT,22.33 mm W x 2640.09 mm L

Drive, For 600 RPM Drive 22.33 mm W x 2640.09 mm L

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

23

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.
