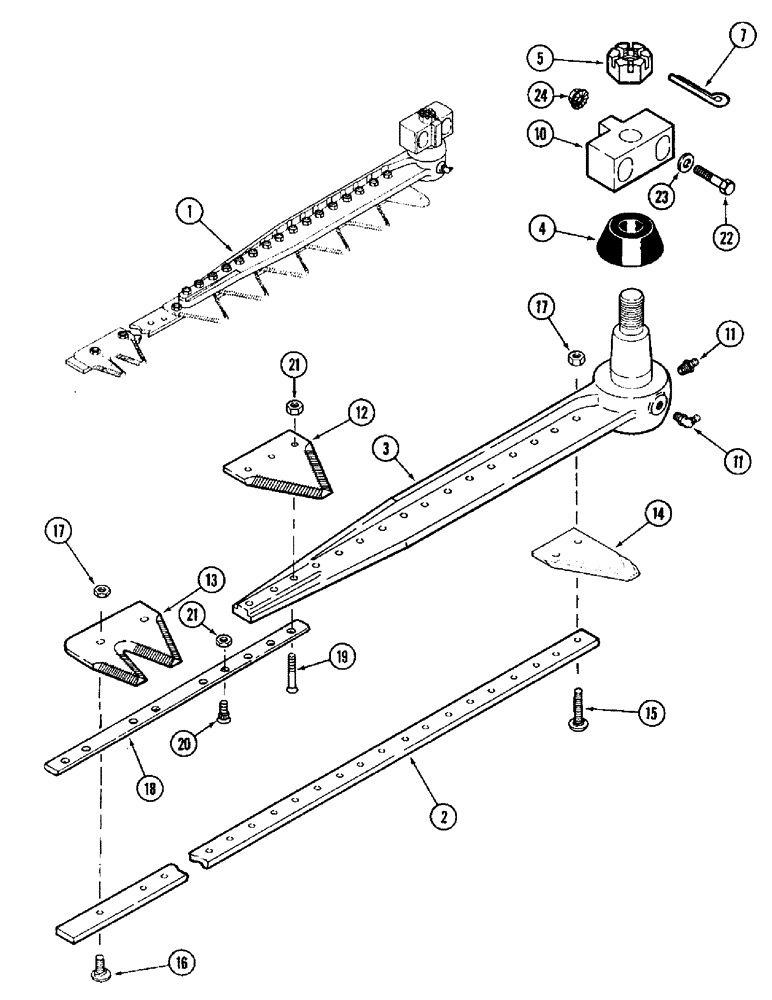

Запчасти Case IH 1010 (9B-10) - KNIFE ASSEMBLY - FINE, 3 INCH - BOLTED, (TRW) (58) - ATTACHMENTS/HEADERS

1

230600A1

KNIFE ASSY

KNIFE ASSEMBLY - 15.0 foot

1шт.

1

230601A1

KNIFE ASSY

KNIFE ASSEMBLY - 17.5 foot

1шт.

1

230602A1

KNIFE ASSY

KNIFE ASSEMBLY - 20.0 foot

1шт.

1

230603A1

KNIFE ASSY

KNIFE ASSEMBLY - 22.5 foot

1шт.

1

230604A1

KNIFE ASSY

KNIFE ASSEMBLY - 25.0 foot

1шт.

1

226433A1

BLADE

KNIFE ASSEMBLY - 30.0 foot

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1316161C94

KNIFE HEAD

HEAD ASSEMBLY - knife

1шт.

4

1345491C2

DUST CAP

COVER - dust

1шт.

5

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

7

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

10

1313797C1

BLOCK

- knife head

1шт.

11

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper, if used 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , If used 1/4"-28 x .56" lg, Self-Tap

1шт.

12

826720C3

KNIFE SECTION

SECTION - knife, overserrated, 3 inch

1шт.

12

596321R4

KNIFE SECTION

SECTION - overserrated knife, chrome, 3 inch, if used

1шт.

13

148200C1

KNIFE SECTION

SECTION - knife, 3 inch, right-hand end

1шт.

14

1316030C2

KNIFE SECTION

SECTION - knife, 3 inch, plain half

1шт.

15

1979166C1

BOLT

BOLT - truss head ribbed neck, special, No. 12 NC x 1-1/8 inch

16шт.

16

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

SCREW - truss head ribbed neck, special, No. 12 NC x 5/8 inch, no longer available, order 700705296, see below

1шт.

17

1954816C1

LOCK NUT

NUT - hex, self-locking, special, No. 12 NC

1шт.

18

227455A1

STRAP

- knife back reinforcement, if used

1шт.

Part of Knife Back Reinforcement Kit, P/N 227213A1

1шт.

19

227456A1

SCREW,FLAT, #12 - 24 x 1-1/4", Gr 8

- machine, socket head, special, No.12 NC x 1-1/4 inch

3шт.

Part of Knife Back Reinforcement Kit, P/N 227213A1

1шт.

20

227457A1

SCREW,#12 - 24 x 13/16", Gr 8

- machine, socket head, special, No. 12 NC x 13/16 inch

6шт.

Part of Knife Back Reinforcement Kit, P/N 227213A1

1шт.

21

1954816C1

LOCK NUT

NUT - hex, self-locking, special, No. 12 NC

9шт.

Part of Knife Back Reinforcement Kit, P/N 227213A1

1шт.

22

280355

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, for spare knife

1шт.

23

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

(flat, washer 5/8 id x 1-1/2"od), for spare knife 3/8"

1шт.

24

231-5146

FLANGE NUT,3/8"-16

For spare knife Flg, USR, 3/8"-16

1шт.

700705296

BOLT AND NUT

PACKAGE - bolt and lock nut, box of 50 each

1шт.

227213A1

KIT

- knife back reinforcement, Includes: ref. nos. 18, 19, 20, and 21

1шт.
