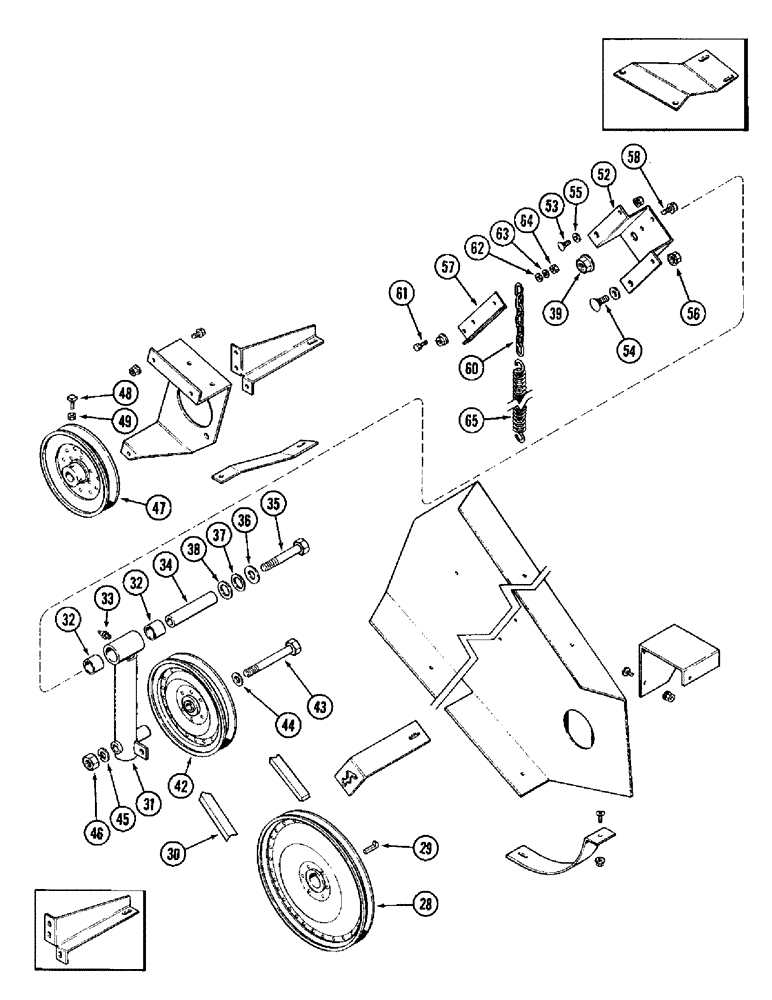

Запчасти Case IH 1010 (9A-46) - REEL CONTROL ATTACHMENT, HYDRAULIC REEL DRIVE, 1440E, 1460E, 1480E COMBINE (58) - ATTACHMENTS/HEADERS

28

176562C2

PULLEY

- drive, feeder jackshaft pump, 13-1/2 inch OD

1шт.

29

Q1497

KEY,Gib, 3/8" Sq x 2"

- square gib, 3/8 x 2 inch

1шт.

30

197414C2

BELT,22.33 mm W x 3706.69 mm L

V-BELT , Reel drive, 1460E and 1480E combine with 54.5 inch feeder 22.33 mm W x 3706.69 mm L

1шт.

30

197411C1

V-BELT,132" L

131.69" L, Reel drive, 1440E and 1460E combine with 47 inch feeder

1шт.

31

195528C92

ARM

ASSEMBLY - pump tightener

1шт.

32

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

- tightener arm

2шт.

33

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

34

198410C1

SPACER

- tightener arm

1шт.

35

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

36

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

37

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

38

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 7/64 inch

1шт.

39

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

42

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

- belt idler, 8-3/4 inch OD

1шт.

43

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

44

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

1шт.

45

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

46

425-1010

NUT,5/8"-11, G5

1шт.

47

193252C1

PULLEY

ASSY, pump driven, 7.5" O.D., 7/8" I.D.

1шт.

48

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

1шт.

49

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

52

195526C1

SUPPORT

pivot anchor, 1440E and 1460E Combine with 47 inch feeder, and 1460E Combine with 54.5 inch feeder

1шт.

52

195527C1

SUPPORT

pivot anchor, 1480E Combine with 54.5 inch feeder.

1шт.

53

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

54

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

1шт.

55

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

56

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

1шт.

57

195531C1

SUPPORT

- spring anchor

1шт.

58

409-7612

BOLT,3/8"-16 x 1.09" OAL

1шт.

60

167570C1

CHAIN,203.2mm L

- latch, reel drive idler pulley arm

1шт.

61

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

62

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

63

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

64

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

65

P303

SPRING

- reel drive idler pulley arm

1шт.

1330177C2

PULLEY

5" OD

1шт.
