(9A-42) - REEL FORE AND AFT ADJUSTMENT, MECHANICAL

Запчасти Case IH 1010 (9A-42) - REEL FORE AND AFT ADJUSTMENT, MECHANICAL (58) - ATTACHMENTS/HEADERS

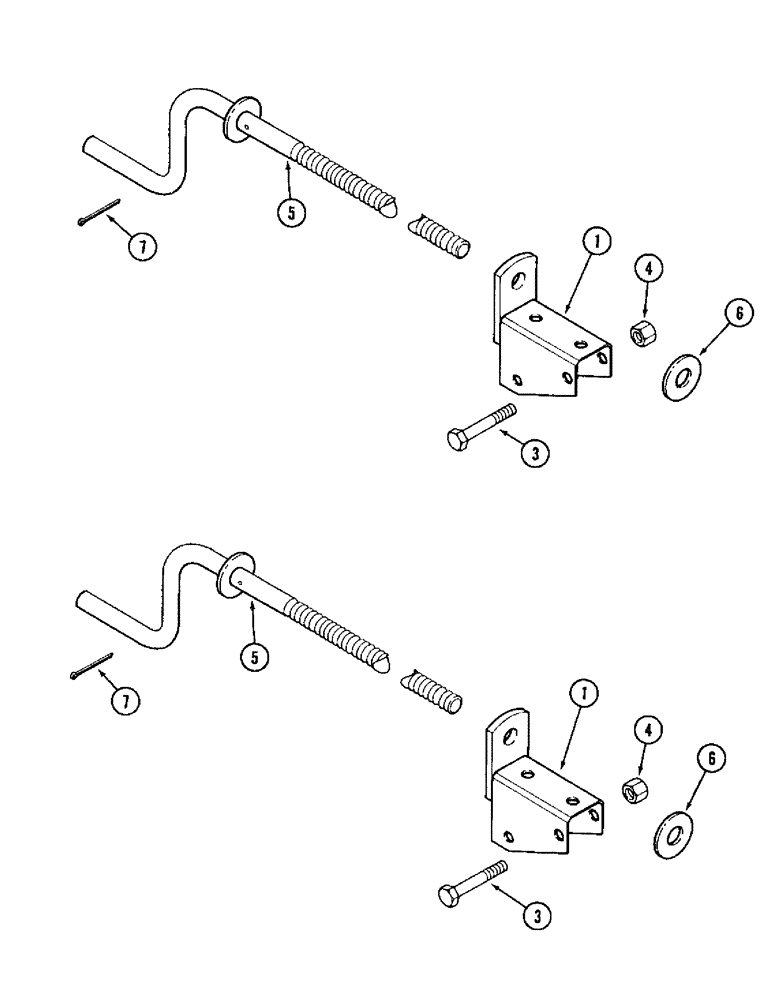

Схема запчастей Case IH 1010 - (9A-42) - REEL FORE AND AFT ADJUSTMENT, MECHANICAL (58) - ATTACHMENTS/HEADERS
4
6
7
7
1
4
1
3
6
5
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

129986A1

SUPPORT

- reel adjusting

2шт.

3

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

4шт.

4

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

5

129983A1

CRANK

- reel adjusting

2шт.

6

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

2шт.

7

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.
