(9A-30) - AUXILIARY PICKUP TINE, 6 BAT REEL WITH PLASTIC TINES

Запчасти Case IH 1010 (9A-30) - AUXILIARY PICKUP TINE, 6 BAT REEL WITH PLASTIC TINES (58) - ATTACHMENTS/HEADERS

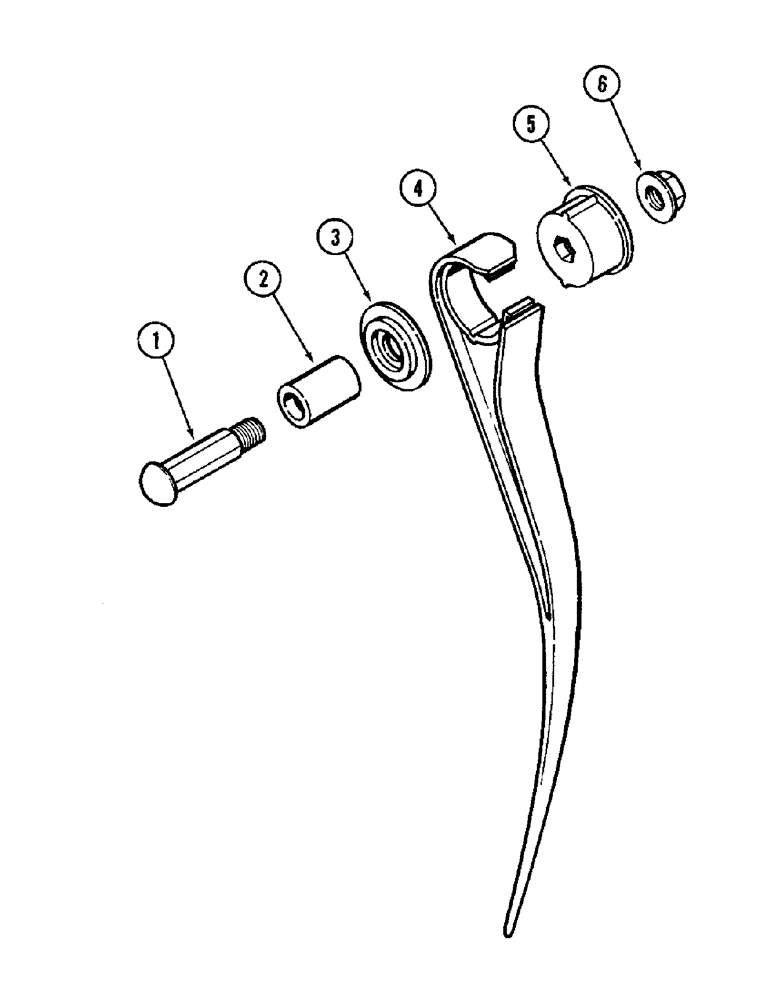

Схема запчастей Case IH 1010 - (9A-30) - AUXILIARY PICKUP TINE, 6 BAT REEL WITH PLASTIC TINES (58) - ATTACHMENTS/HEADERS
6
1
3
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1970589C1

REEL TINE

TINE ASSEMBLY - auxiliary pickup

1шт.

1

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

- round head hex shank, special, 1/2 NF x 2-1/2 inch

12шт.

2

598246R1

SPACER

- 9/16 ID x 1-1/4 inch

12шт.

3

1970591C1

RETAINER

- auxiliary tine

12шт.

4

1970590C1

TINE

- plastic, auxiliary

12шт.

5

1970592C1

SUPPORT

- auxiliary tine

12шт.

6

827386C1

FLANGE NUT

NUT - hex flange, self-locking, 1/2 inch NF

12шт.
