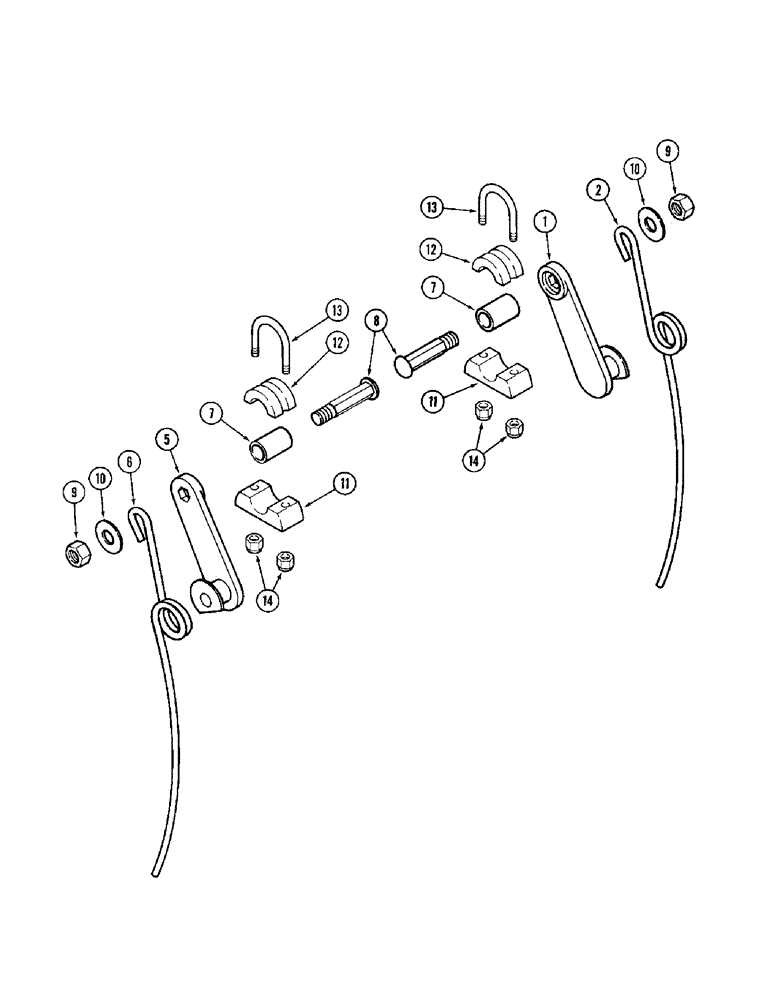

Запчасти Case IH 1010 (9A-28) - AUXILIARY PICKUP TINES, 6 BAT REEL WITH STEEL TINES (58) - ATTACHMENTS/HEADERS

167605C91

TINE

ASSEMBLY - auxiliary pickup, left-hand

6шт.

1

592627R21

STRAP

- finger

1шт.

2

167652C1

TINE,Coiled, 1 Prong, 437mm L

- left-hand

1шт.

167606C91

TINE

ASSEMBLY - auxiliary pickup, right-hand

6шт.

5

592627R21

STRAP

- finger

1шт.

6

167651C1

TORSION SPRING

- right-hand

1шт.

7

598246R1

SPACER

- 9/16 ID x 1-1/4 inch

12шт.

7

1316568C1

SPACER

BUSHING - tubing (See Note)

12шт.

8

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

- round head hex shank, special, 1/2 NF x 2-1/2 inch

12шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(See Note) Hex, 1/2"-13 x 2", G5

12шт.

9

827386C1

FLANGE NUT

NUT - hex flange, self-locking, 1/2 inch NF

12шт.

9

9411648

LOCK NUT,1/2"-20, GC

NUT - hex, self-locking, 1/2 inch NF (See Note)

1шт.

10

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

12шт.

10

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch (See Note)

12шт.

11

598234R1

BASE

- bearing (See Note)

36шт.

12

598235R1

BEARING CAP,1.025"

- bearing (See Note)

36шт.

13

598236R1

U-BOLT,U, 1/4" - 20

- bearing (See Note)

36шт.

14

231-4144

NUT,1/4"-20, GB

NUT, LOCK, (See Note) 1/4"-20, GB

72шт.
