(9A-24) - 6 BAT REEL, PLASTIC TINES, 22.5, 25.0 AND 30.0 FOOT HEADER

Запчасти Case IH 1010 (9A-24) - 6 BAT REEL, PLASTIC TINES, 22.5, 25.0 AND 30.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

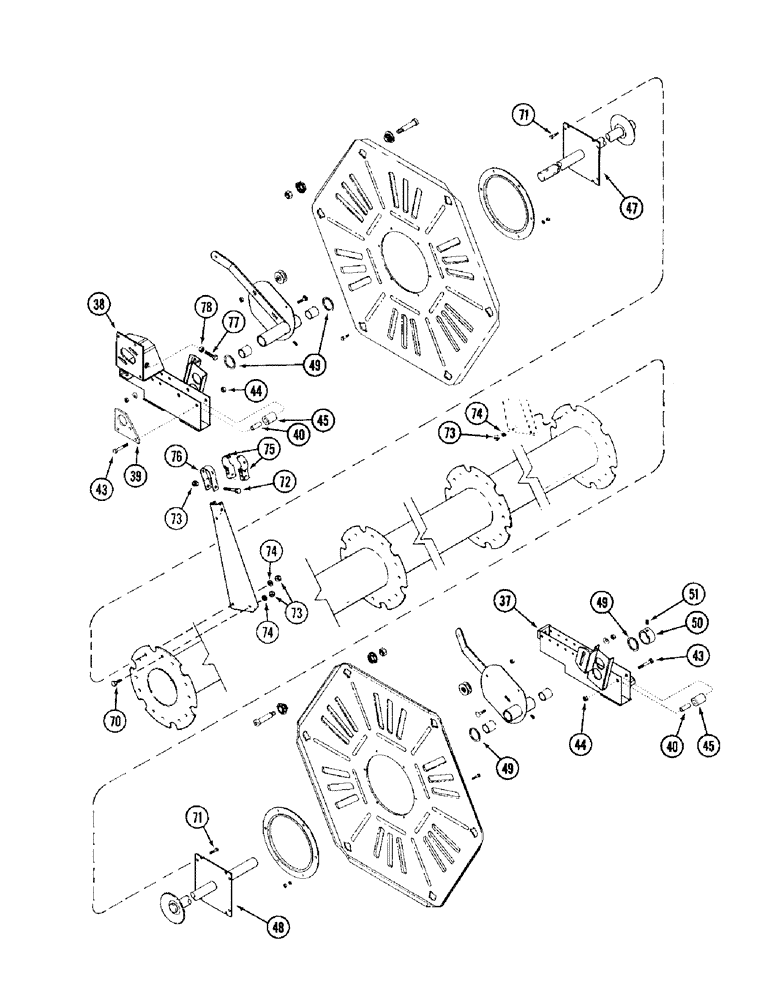

Схема запчастей Case IH 1010 - (9A-24) - 6 BAT REEL, PLASTIC TINES, 22.5, 25.0 AND 30.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS
45
49
74
39
77
48
71
44
73
40
49
49
43
47
44
74
40
43
76
51
73
74
75
71
72
73
78
37
50
45
70
38
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

37

129996A1

SUPPORT

- reel, left-hand

1шт.

38

129997A1

SUPPORT

- reel, right-hand

1шт.

39

135113A1

SUPPORT

PLATE - support, outer

1шт.

40

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

43

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

44

832-46412

NUT,M12 x 1.75, Cl 8

NUT - self-locking, 12 mm - 1.75

4шт.

45

1316328C1

SHIFTER ROLLER

BUSHING - reel support

4шт.

47

1989428C1

SHAFT

- drive end

1шт.

48

1989425C1

SHAFT

- driven end

1шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

4шт.

50

114943A1

COLLAR

- locking

1шт.

51

878-1106

SET SCREW,Hex Skt, M10 x 6mm, Cup Pt

SCREW - set, hex socket headless cup point, 3/8 NF x 5/16 inch

2шт.

70

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

71

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

8шт.

72

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

- Hex, Full Threads, 10-1.5 x 50 mm

1шт.

73

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10

1шт.

74

892-11010

LOCK WASHER,M10

1шт.

75

1347084C1

CLAMP,50.8 mm ID x 25.4 mm

BEARING - reel arm

1шт.

76

1347085C1

STRAP

- bearing

1шт.

77

113-2663

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

- hex, full threads, 1/2 NC x 3 inch

1шт.

78

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
