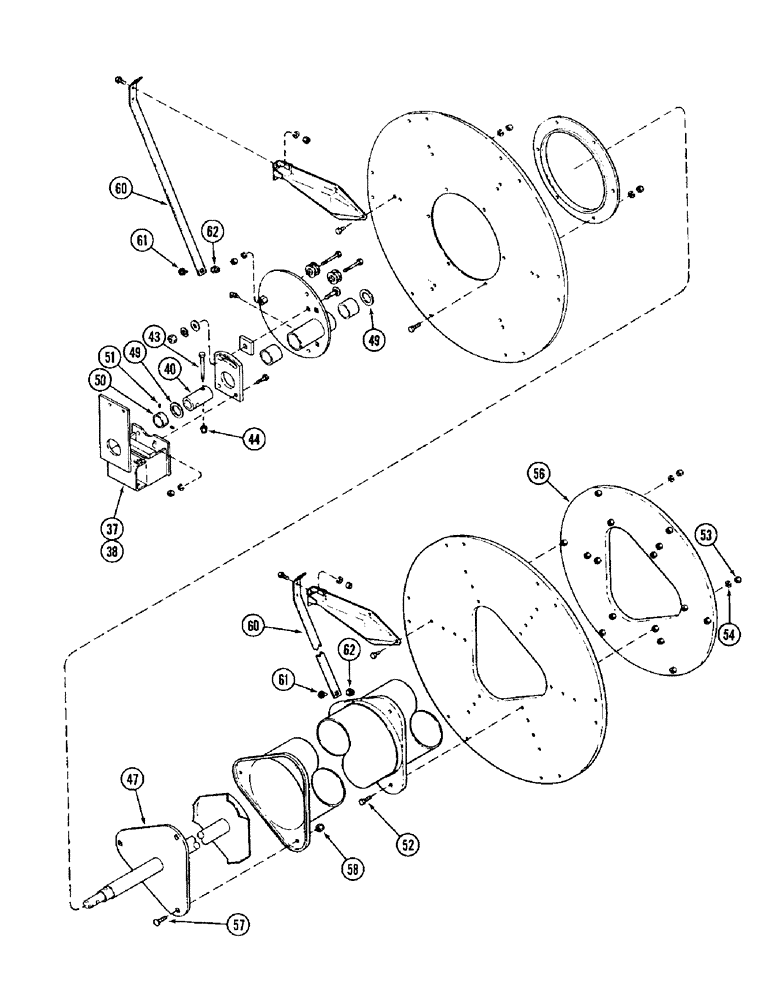

Запчасти Case IH 1010 (9A-14) - 6 BAT REEL, 52 INCH REEL WITH STEEL TINES (58) - ATTACHMENTS/HEADERS

37

180380C1

BRACKET

- adjusting, left-hand

1шт.

38

179231C2

BRACKET

- adjusting, right-hand (Shown)

1шт.

40

167612C1

SPACER

- driven hub

2шт.

43

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch, if used

4шт.

44

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, if used

4шт.

47

180251C1

SHAFT

- driving end

2шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

4шт.

50

180400C91

COLLAR

- with set screws

2шт.

51

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

SCREW - set, hex socket headless, 3/8 NF x 5/16 inch, cup point

3шт.

52

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

53

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

54

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

55

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch, grade 2

1шт.

56

180603C1

PLATE

- stiffening

4шт.

60

180787C1

SUPPORT

- reel arm brace

36шт.

61

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

36шт.

62

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

36шт.
