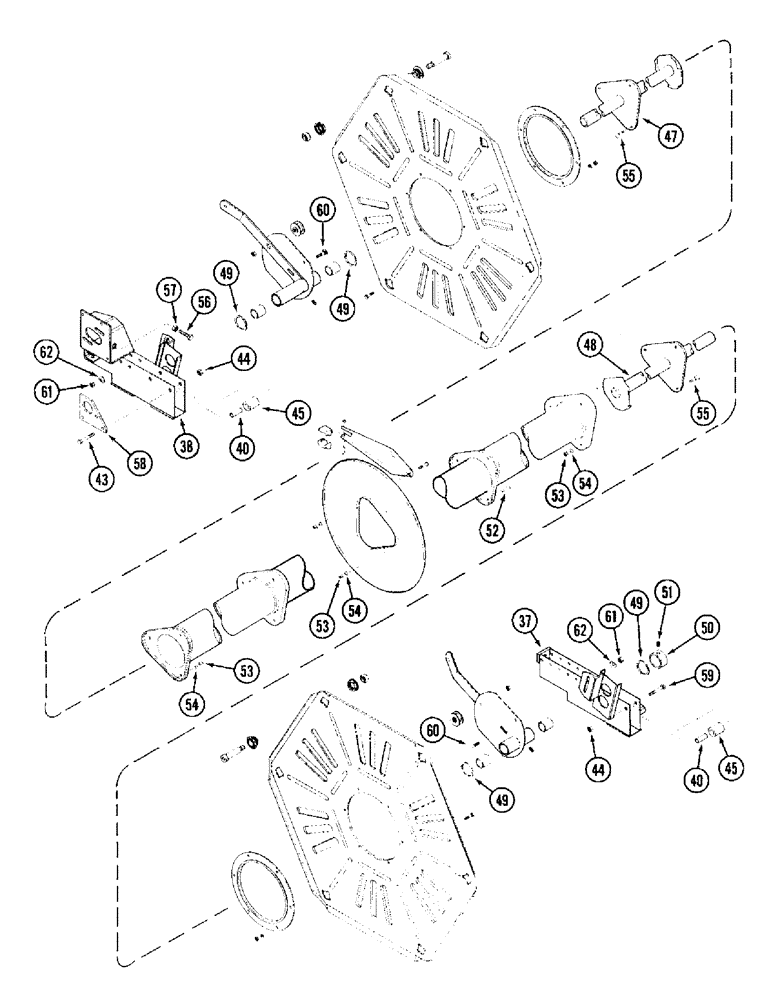

Запчасти Case IH 1010 (9A-10) - 6 BAT REEL, STEEL TINES (58) - ATTACHMENTS/HEADERS

37

129996A1

SUPPORT

- reel, left-hand

1шт.

38

129997A1

SUPPORT

- reel, right-hand

1шт.

40

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

43

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

- hex, 12 - 1.75 x 90 mm

2шт.

44

832-46412

NUT,M12 x 1.75, Cl 8

NUT - self-locking, 12 mm - 1.75

4шт.

45

1316328C1

SHIFTER ROLLER

BUSHING - reel support

4шт.

47

185519C1

SHAFT

- driving end (15.0 and 17.5 foot)

1шт.

47

185520C1

SHAFT

- driving end (20.0 and 22.5 foot)

1шт.

47

180134C1

SHAFT

- driving end (25.0 and 30.0 foot)

1шт.

48

185522C1

SHAFT

- driven end (15.0 and 17.5 foot)

1шт.

48

185523C1

SHAFT

- driven end (20.0 and 22.5 Foot)

1шт.

48

180135C1

SHAFT

- driven end (25.0 and 30.0 foot)

1шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

4шт.

50

114943A1

COLLAR

- locking

1шт.

51

878-1106

SET SCREW,Hex Skt, M10 x 6mm, Cup Pt

SCREW - set, hex socket headless cup point, 3/8 NF x 5/16 inch

2шт.

52

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

53

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

54

492-11038

LOCK WASHER,3/8"

1шт.

55

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

6шт.

56

113-2663

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

- hex, full threads, 1/2 NC x 3 inch

1шт.

57

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

58

135113A1

SUPPORT

PLATE - support, outer

1шт.

59

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

60

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

BOLT, CARRIAGE, M12 x 40, Cl8.8, Full Thd

2шт.

61

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

62

114944A1

BELLEVILLE WASHER

WASHER - belleville, 12 mm

2шт.
