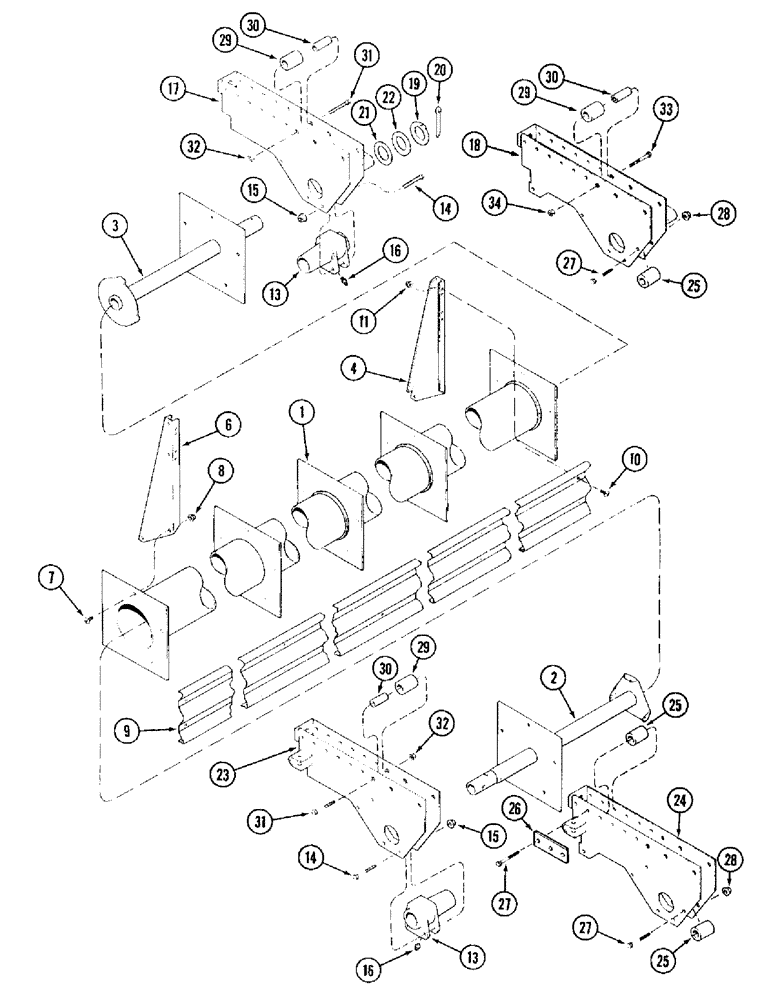

Запчасти Case IH 1010 (9A-02) - 5 BAT REEL, 15.0, 17.5, 20.0, 22.5 AND 25.0 FOOT HEADERS (58) - ATTACHMENTS/HEADERS

1

1307620C1

TUBE

- reel (15.0 foot)

1шт.

1

1307621C1

TUBE

- reel (17.5 foot)

1шт.

1

1307622C1

TUBE

- reel (20.0 foot)

1шт.

1

1307623C1

TUBE

- reel (22.5 foot)

1шт.

1

1307624C1

TUBE

- reel (25.0 foot)

1шт.

2

185772C2

SHAFT

- reel, right-hand, drive

1шт.

3

1316662C1

SHAFT

- reel, left-hand

1шт.

4

179108C1

SUPPORT

- reel bat, left-hand

10шт.

6

179109C1

SUPPORT

- reel bat, right-hand

1шт.

7

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

9

1307584C1

BAT

- reel (15.0 foot)

5шт.

9

1307585C1

BAT

- reel (17.5 foot)

5шт.

9

1307586C1

BAT

- reel (20.0 foot)

5шт.

9

1307587C1

BAT

- reel (22.5 foot)

5шт.

9

1307588C1

BAT

- reel (25.0 foot)

5шт.

10

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

1шт.

11

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

13

1308369C1

SUPPORT

- reel shaft

2шт.

14

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

17

129992A1

SUPPORT

- reel, left-hand, if used

1шт.

18

129992A2

SUPPORT

- reel, left-hand, if used

1шт.

19

633177R1

WASHER

- cotter pin

1шт.

20

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

21

495-81094

WASHER,1 25/32" x 2 3/4" x .048"

- flat, 1-25/32 x 2-3/4 x 3/64 inch

1шт.

22

95-81057

WASHER,1.78" ID x 2.75" OD x 0.12" Thk

- flat, 1-25/32 x 2-3/4 x 1/8 inch

1шт.

23

129993A1

SUPPORT

- reel, right-hand, if used

1шт.

24

129993A2

SUPPORT

- reel, right-hand, if used

1шт.

25

130011A1

SPACER

- 1/2 (12.5) ID x 2 -1/8 inch (53 mm) long

5шт.

26

222356A1

LARGE PLATE

PLATE - bracket reinforcement

1шт.

27

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

5шт.

28

231-5146

FLANGE NUT,3/8"-16

5шт.

29

1316328C1

SHIFTER ROLLER

BUSHING - reel support

4шт.

30

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch, tube

4шт.

31

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch, used with items 17, 129992A1, and 23, 129993A1, supports

4шт.

32

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC, used with items 17, 129992A1, and 23, 129993A1, supports

4шт.

33

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

34

832-46412

NUT,M12 x 1.75, Cl 8

NUT - self-locking, 12 mm - 1.75

4шт.
