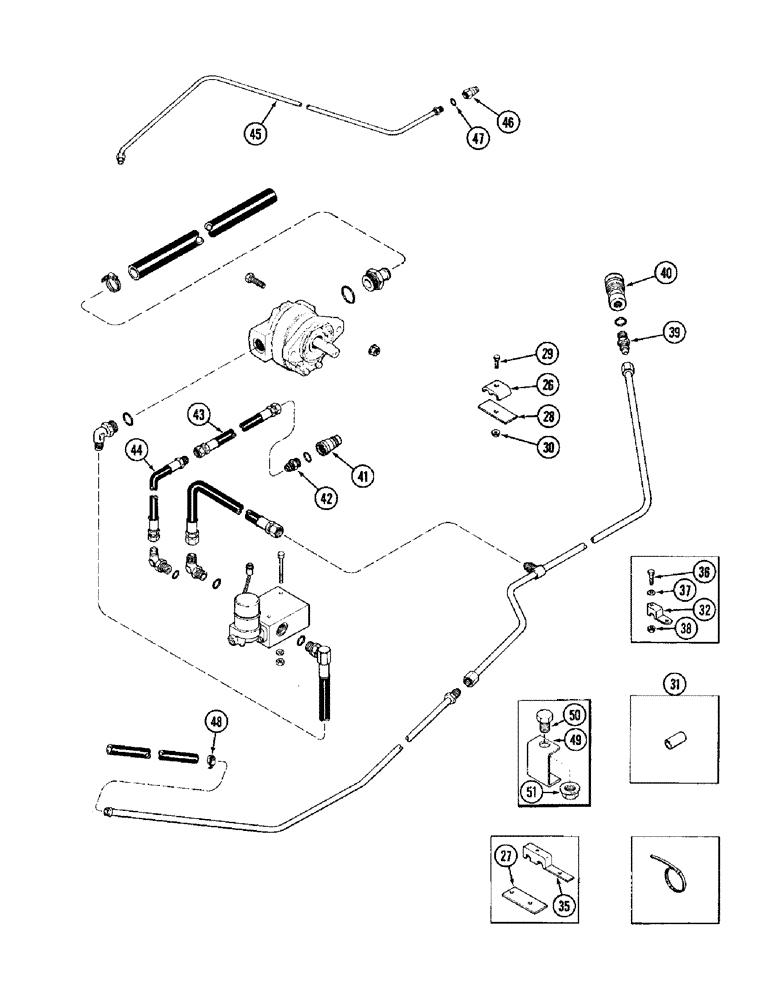

Запчасти Case IH 1010 (8-28) - REEL DRIVE SYSTEM, 1440E, 1460E AND 1480E COMBINE (35) - HYDRAULIC SYSTEMS

26

165601C1

CLAMP

- reservoir drain tube, retaining, 13/32 inch diameter hole

1шт.

26

165602C1

CLAMP

- retaining, 11/32 inch diameter hole

1шт.

27

196868C2

SUPPORT

PLATE - support, tube (See Notes A, B and D)

1шт.

28

573186R1

PLATE

BAR - support, tube (See Note C)

1шт.

29

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

29

424-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 2

- hex, 3/8 NC x 1-3/4 inch, grade 2

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

163490C1

RUBBER INSULATOR

INSULATOR - rubber, 3/8 ID x 1-13/64 inch long, tube clamp

1шт.

31

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long, tube clamp

1шт.

31

163492C1

RUBBER INSULATOR

INSULATOR - rubber, 5/8 ID x 1-13/64 inch long, tube clamp

1шт.

32

183821C1

CLAMP

- tube, single, 3/8 inch OD tube

1шт.

32

183822C1

CLAMP

- tube, single, 5/8 inch OD tube

1шт.

35

121714C1

CLAMP

- header lift tubes, double, 3/4 and 5/8 inch OD tube

1шт.

36

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

37

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

38

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

39

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

40

395150R91

COUPLING, QUICK, FEM

COUPLING - self sealing, female (Alternate with A177478)

1шт.

40

A177478

COUPLING, QUICK, FEM

COUPLING - self-sealing, female (Alternate with 395150R91)

1шт.

41

395149R1

QUICK MALE COUPLING

COUPLER - male, 7/8 inch NF (Alternate with 1272399C2)

1шт.

41

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF (Alternate with 395149R1)

1шт.

42

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

43

196878C1

HOSE

- 1422 mm (56 inch) long, hydraulic, 3/8 ID (See Notes A and B)

1шт.

43

179411C1

HOSE

- 1549 mm (61 inch) long, hydraulic, 3/8 ID (See Notes C and D)

1шт.

44

1317169C1

HOSE

- 686 mm (27 inch) long, hydraulic, 3/8 ID

1шт.

45

1312410C1

HYD TUBE

TUBE - reel lift (See Notes A, B and D)

1шт.

46

187562C1

QUICK MALE COUPLING

COUPLING - male, 9/16 NF inch

1шт.

48

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

49

1312409C1

SUPPORT

- pipe

1шт.

50

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

51

825-51410

FLANGE NUT,M10, Flg Ser

- hex serrated flange, 10 mm - 1.5

1шт.

36

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

47

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
