Запчасти Case IH 1010 (8-20) - HEADER TO COMBINE CONNECTING HOSES, 1420, 1440, 1460 AND 1480 COMBINE (35) - HYDRAULIC SYSTEMS

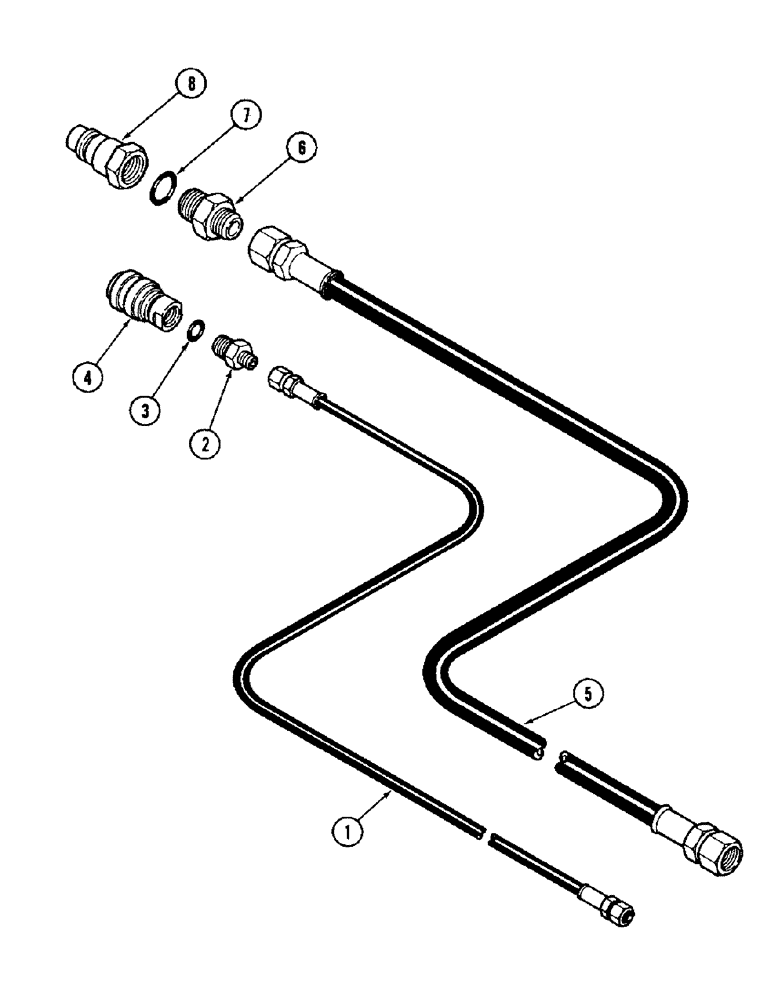

Схема запчастей Case IH 1010 - (8-20) - HEADER TO COMBINE CONNECTING HOSES, 1420, 1440, 1460 AND 1480 COMBINE (35) - HYDRAULIC SYSTEMS
7
1
5
3
2
8
6
4

Артикул

Название

Примечание

Количество

1

179202C1

HOSE,7.94mm ID x 1727.2mm L, SAE 100R1

- 1727 mm (68 inch) long, header to combine reel lift

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

4

187563C1

COUPLING, QUICK, FEM

COUPLING - female, 9/16-18 inch, thread

1шт.

5

D51685

HOSE

- 1676 mm (66 inch) long, header to combine reel drive, header to combine pick up drive

2шт.

6

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

395149R1

QUICK MALE COUPLING

COUPLER - male, 7/8 inch NF

1шт.

8

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 9
