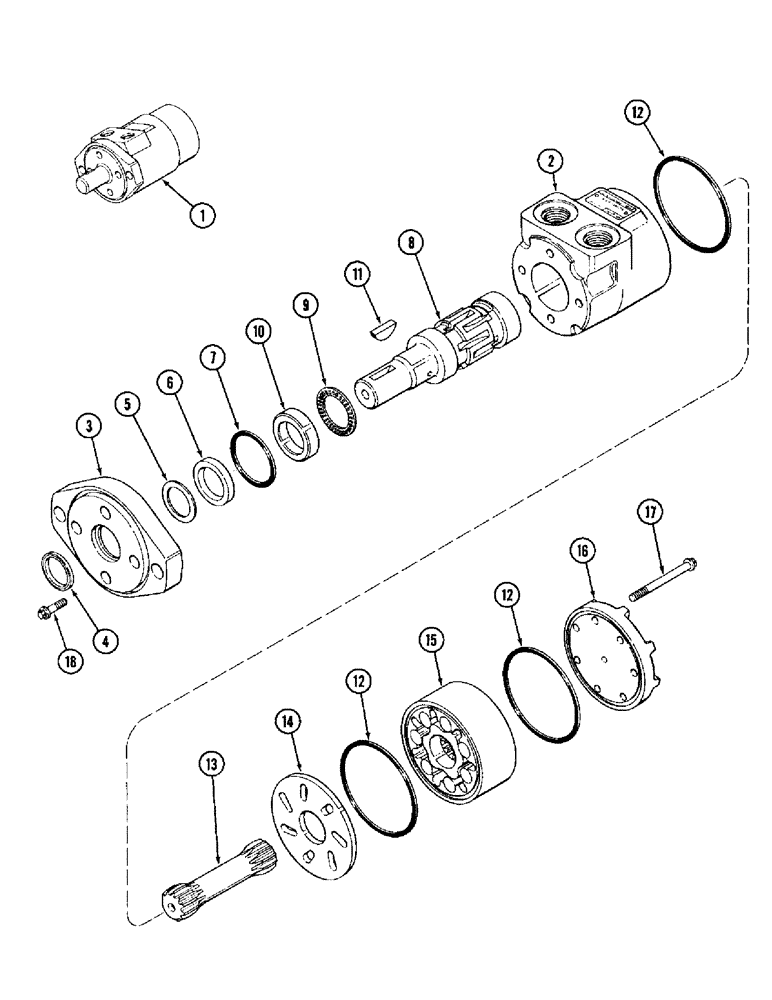

Запчасти Case IH 1010 (8-12) - REEL DRIVE MOTOR (35) - HYDRAULIC SYSTEMS

1

130409A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - reel drive

1шт.

87036557R

REMAN-HYD MOTOR

1010 S/N JJC0200001 THROUGH JJC0300000 ; Reman for new PN 130409A1

1шт.

87036557C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - motor

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - drive end

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

5

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - sealing

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - drive

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

10

NSS

NOT SOLD SEPARAT

SPACER - thrust bearing

1шт.

11

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

12

NSS

NOT SOLD SEPARAT

RING - sealing

3шт.

13

NSS

NOT SOLD SEPARAT

LINK - drive

1шт.

14

NSS

NOT SOLD SEPARAT

PLATE - manifold

1шт.

15

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - motor

1шт.

16

NSS

NOT SOLD SEPARAT

COVER - end

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - cover

7шт.

18

NSS

NOT SOLD SEPARAT

BOLT - cover

4шт.

188118A1

SEAL KIT

KIT - seal

1шт.
