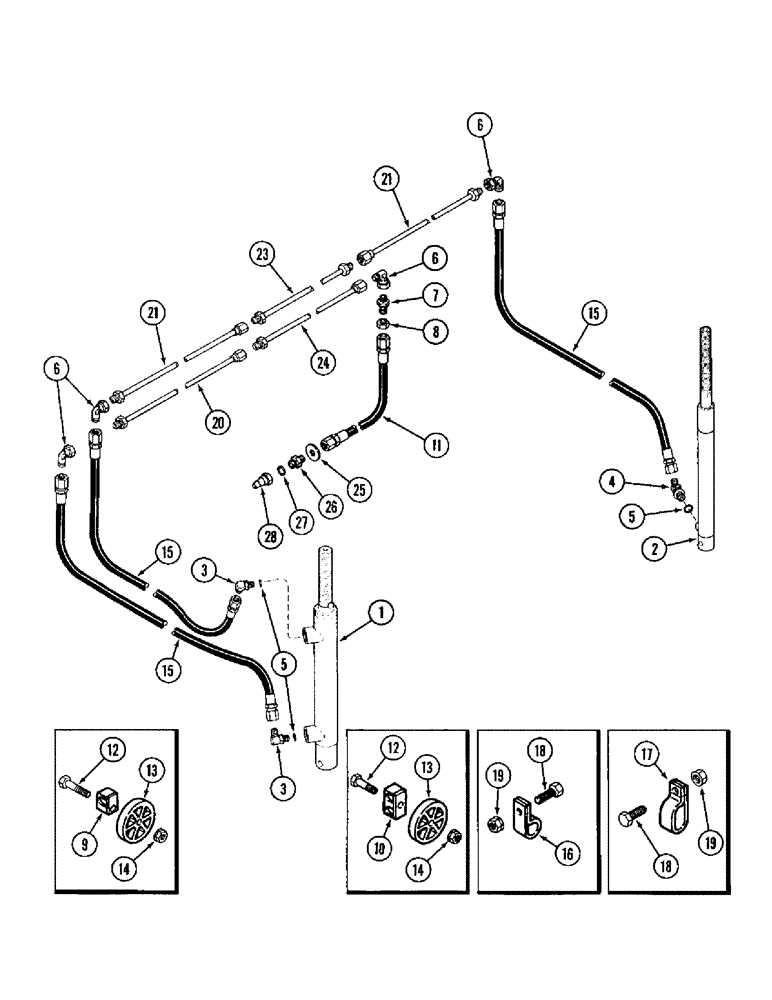

Запчасти Case IH 1010 (8-10) - REEL LIFT HYDRAULIC SYSTEM, 22.5, 25.0 AND 30.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, master (See page 8-17)

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, slave (See page 8-19)

1шт.

3

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

2шт.

4

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

6

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

4шт.

7

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

8

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

9

183821C1

CLAMP

- tube retaining, single

2шт.

10

183825C1

CLAMP

- tube retaining, double

4шт.

11

1254527C2

HYDRAULIC HOSE

HOSE - 940 mm (37 inch) long, hydraulic, 1/4 ID

1шт.

12

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

6шт.

13

1326572C1

SPACER

- 10 mm, long

6шт.

14

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

6шт.

15

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

6.40 mm ID x 890.00 mm, SAE 100R1

3шт.

16

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

Single, Hose 13/16", Insul, 3/8" Bolt

1шт.

17

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

- double, hose

1шт.

18

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

19

231-5146

FLANGE NUT,3/8"-16

2шт.

20

1316597C1

TUBE,0.375" OD, 1413 mm Length

- reel lift (22.5 foot)

1шт.

20

1316601C1

TUBE,0.375" OD, 1794 mm Length

- reel lift (25.0 foot)

1шт.

20

1316604C1

TUBE,0.375" OD, 2556 mm Length

- reel lift (30.0 foot)

1шт.

21

1316603C1

TUBE,0.375" OD, 2655 mm Length

- reel lift (22.5 foot)

2шт.

21

1316605C1

HYD TUBE,0.375" OD, 3035 mm Length

- reel lift (25.0 foot)

2шт.

21

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

- reel lift (30.0 foot)

2шт.

23

1316598C1

TUBE,0.375" OD, 1613 mm Length

- reel lift (22.5 and 25.0 foot)

1шт.

23

1338421C1

TUBE,0.375" OD, 3080 mm Length

- reel lift (30.0 foot)

1шт.

24

1338419C1

TUBE,0.375" OD, 3027 mm Length

- reel lift

1шт.

25

1541804C1

WASHER

- black, special

1шт.

26

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

3шт.
