Запчасти Case IH 1010 (8-04) - REEL FORE AND AFT HYDRAULIC SYSTEM, 15.0, 17.5 AND 20.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS

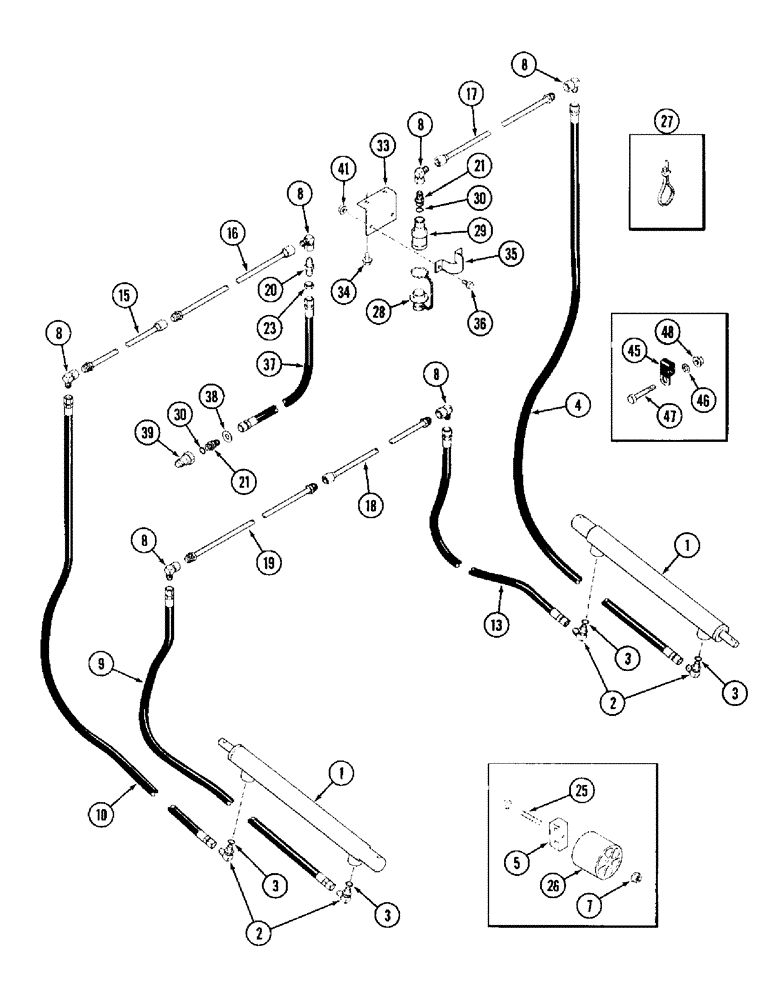

Схема запчастей Case IH 1010 - (8-04) - REEL FORE AND AFT HYDRAULIC SYSTEM, 15.0, 17.5 AND 20.0 FOOT HEADER (35) - HYDRAULIC SYSTEMS
19
8
37
10
45
8
21
21
13
30
3
41
30
5
8
17
2
23
38
16
2
25
8
26
48
33
47
9
35
8
1
3
46
27
28
16
1
34
4
3
7
39
3
15
36
8
20
29

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - fore and aft (See Page 8-15)

2шт.

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

4шт.

4

1277506C1

HYDRAULIC HOSE,6.35mm ID x 1195mm L

6.35 mm ID x 1195.00 mm

1шт.

5

183825C1

CLAMP

- tube retaining

4шт.

7

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

6шт.

9

147876C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long, hydraulic, 1/4 ID

1шт.

10

141425A1

HOSE

- 1448 mm (57 inch) long, hydraulic, 1/4 ID

1шт.

13

147875C1

HYDRAULIC HOSE,6.40 mm ID x 890.00 mm, SAE 100R1

6.40 mm ID x 890.00 mm, SAE 100R1

1шт.

15

1338414C1

TUBE,0.375" OD, 275 mm Length

- fore and aft (15.0 foot)

1шт.

15

1338416C1

TUBE,0.375" OD, 652 mm Length

- fore and aft (17.5 foot)

1шт.

15

1316596C1

TUBE,0.375" OD, 1033 mm Length

- fore and aft (20.0 foot)

1шт.

16

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

- fore and aft

1шт.

17

138333A1

TUBE,0.375" OD

- fore and aft (15.0 foot)

1шт.

17

138334A1

TUBE,0.375 mm OD, 1466 mm Length

- fore and aft (17.5 foot)

1шт.

17

138335A1

TUBE,0.375" OD, 1847 mm Length

- fore and aft (20.0 foot)

1шт.

18

1316601C1

TUBE,0.375" OD, 1794 mm Length

- fore and aft (15.0 foot)

1шт.

18

1316604C1

TUBE,0.375" OD, 2556 mm Length

- fore and aft (17.5 foot)

1шт.

18

1338420C1

HYDRAULIC HOSE,0.375" OD, 3080 mm Length

- fore and aft (20.0 foot)

1шт.

19

1338418C1

TUBE,0.375" OD, 2844 mm Length

- fore and aft (15.0 and 17.5 foot)

1шт.

19

1338421C1

TUBE,0.375" OD, 3080 mm Length

- fore and aft (20.0 foot)

1шт.

20

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

1шт.

21

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

2шт.

23

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

25

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

4шт.

26

1326573C1

SPACER

- 45 mm long

4шт.

27

702093C1

CABLE TIE

STRAP - tie, nylon

2шт.

28

1954133C1

PLUG

PLUG - coupling, dust

1шт.

29

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing female, 7/8-14 inch

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

33

1316779C1

SUPPORT

ANGLE - quick disconnect support

1шт.

34

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

2шт.

35

1321398C1

CLAMP

- quick disconnect

1шт.

36

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

37

1254527C2

HYDRAULIC HOSE

HOSE - 940 mm (37 inch) long, hydraulic, 1/4 ID

1шт.

38

1541792C1

WASHER

WASHER - lock, red, special

1шт.

39

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

41

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

45

485093C1

CLAMP,13/16" Insul, 13/32" Bolt

- double, hose

2шт.

46

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

47

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

48

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

4шт.
