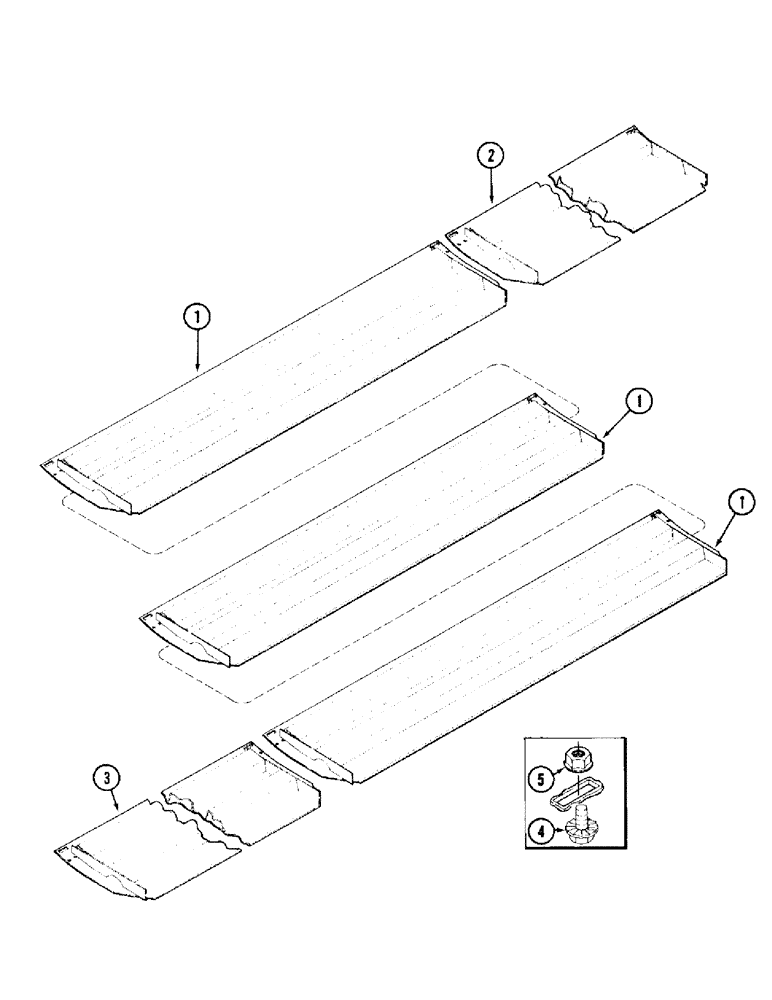

Запчасти Case IH 1010 (9D-14) - BOTTOM SHIELDS, 22.5, 25.0 AND 30.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

1307045C1

SHIELD

- center

3шт.

2

129279A1

GUARD

SHIELD - outer, left-hand (22.5 foot)

1шт.

2

129281A1

GUARD

SHIELD - outer, left-hand (25.0 foot)

1шт.

2

129283A1

GUARD

SHIELD - outer, left-hand (30.0 foot)

1шт.

3

129280A1

GUARD

SHIELD - outer, right-hand (22.5 foot)

1шт.

3

129282A1

GUARD

SHIELD - outer, right-hand (25.0 foot)

1шт.

3

129284A1

GUARD

SHIELD - outer, right-hand (30.0 foot)

1шт.

4

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

10шт.

5

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

10шт.
