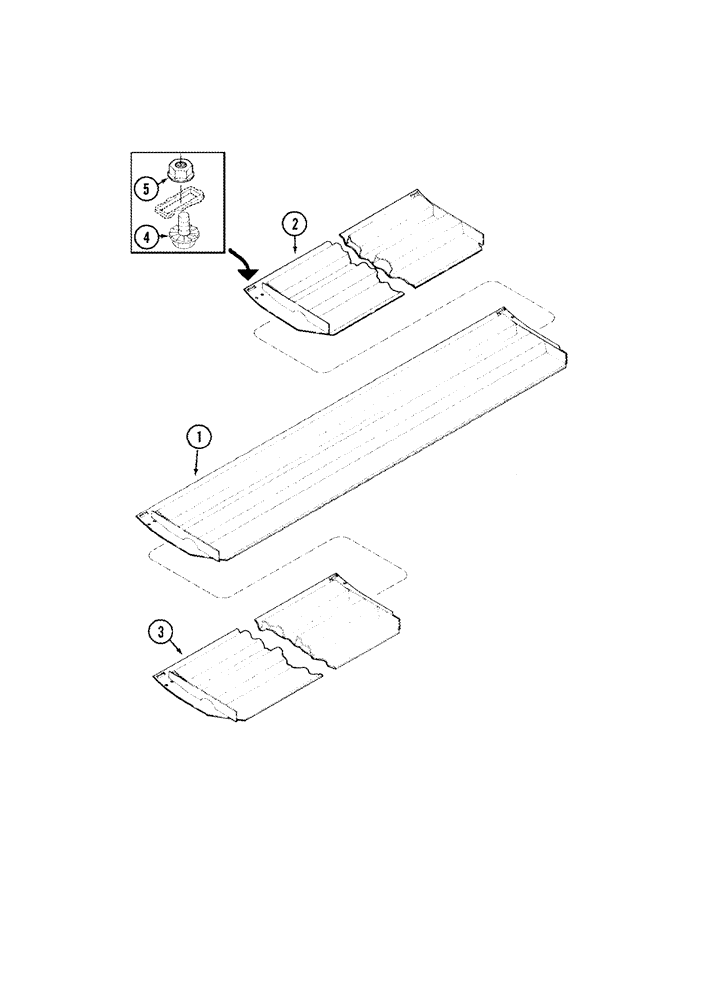

Запчасти Case IH 1010 (9D-12) - BOTTOM SHIELDS, 15.0, 17.5 AND 20.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

1307045C1

SHIELD

- center

1шт.

2

129273A1

GUARD

SHIELD - outer, left-hand (15.0 foot)

1шт.

2

129275A1

GUARD

SHIELD - outer, left-hand (17.5 foot)

1шт.

2

129277A1

GUARD

SHIELD - outer, left-hand (20.0 foot)

1шт.

3

129274A1

GUARD

SHIELD - outer, right-hand (15.0 foot)

1шт.

3

129276A1

GUARD

SHIELD - outer, right-hand (17.5 foot)

1шт.

3

129278A1

GUARD

SHIELD - outer, right-hand (20.0 foot)

1шт.

4

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

6шт.

5

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

6шт.
