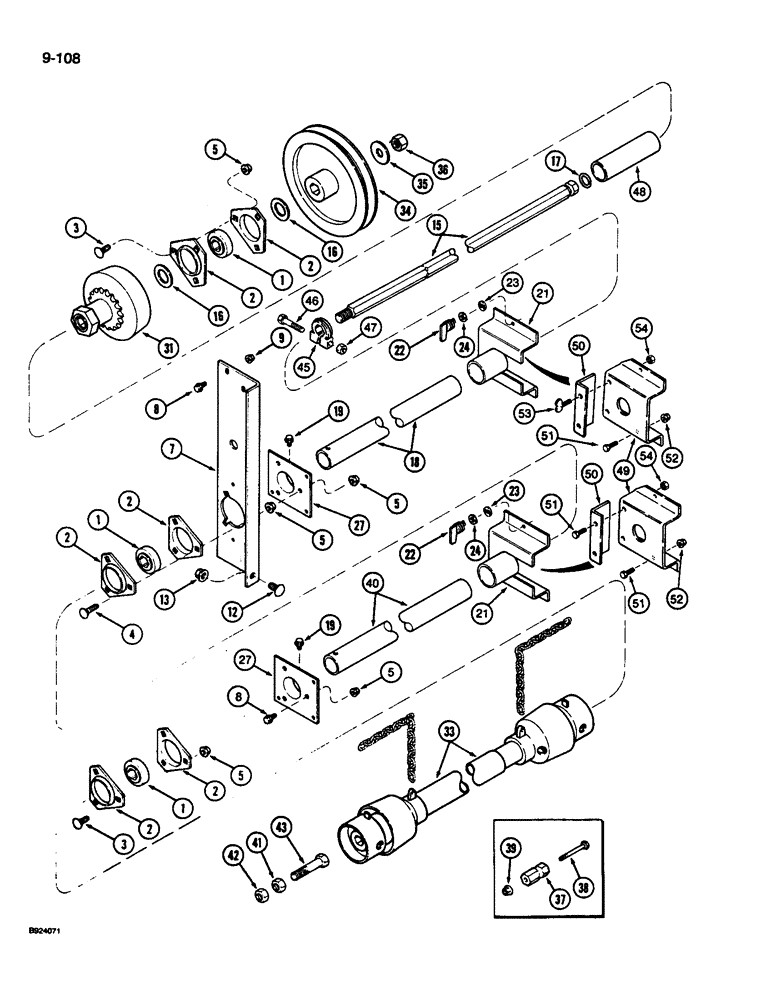

Запчасти Case IH 1010 (9-108) - AUGER AND KNIFE JACKSHAFT DRIVE, 30.0 FOOT HEADER, SPECIAL (58) - ATTACHMENTS/HEADERS

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSEMBLY - jackshaft

3шт.

2

180955C1

FLANGED BEARING,0.375"

FLANGE - jackshaft bearing

6шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

4

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

12шт.

7

1307339C1

SUPPORT

ASSEMBLY - jackshaft

1шт.

8

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flanged lock, 5/18 NC x 3/4 inch

5шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

5шт.

12

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

1шт.

13

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange lock, 1/2 inch NC

1шт.

15

1307345C2

JACKSHAFT

SHAFT - jackshaft (Replaces 1307345C1)

1шт.

16

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch

2шт.

17

575186R1

SNAP RING

RING - retaining, slip clutch

1шт.

18

1320876C1

TUBE,48.26 mm OD, 928 mm Length

- jackshaft shield, 36-1/2 inch

1шт.

19

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- flanged hex, 5/16 NC x 1/2 inch

2шт.

21

1320882C1

SHIELD

ASSEMBLY - clutch, used on models with auger and knife drive on left-hand side of header

2шт.

22

1316776C1

STUD

- shield fastener, if used

2шт.

23

1316777C1

LOCKING RING

RETAINER - shield, if used

4шт.

24

95-81068

WASHER,0.34" ID x 0.66" OD x 0.02" Thk

- flat, 11/32 x 21/32 x 1/64 inch, if used

1шт.

25

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- flanged hex lock, 1/4 NC x 1/2 inch, if used

2шт.

26

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flanged hex lock, 1/4 inch NC, if used

2шт.

27

1320880C1

SHIELD

ASSEMBLY - J-shaft shield

2шт.

31

REF

INSTRUCTION

CLUTCH ASSEMBLY - with sprocket (See Page 9-101)

1шт.

33

REF

INSTRUCTION

JOINT ASSEMBLY - drive shaft (See Figure 9-116, 9-118 or 9-120)

1шт.

34

REF

INSTRUCTION

PULLEY ASSEMBLY - drive (See Page 9-81)

1шт.

35

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch

1шт.

36

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

37

1307385C1

SHAFT

PIN - U-joint support (If equipped)

1шт.

38

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch (If equipped)

1шт.

39

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, (If equipped) 5/16"-18, GC

1шт.

40

1320875C1

TUBE,48.26 mm OD, 681 mm Length

- jackshaft shield, 26-5/16 inch

1шт.

41

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

42

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

43

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

45

1327106C1

COLLAR

- shaft, main

1шт.

46

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

1шт.

47

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

1шт.

48

106025A1

SPACER

- retainer SPECIAL PARTS USED ON MODELS WITH SPLIT AUGER AND KNIFE DRIVE ( ON RIGHT-HAND SIDE OFF HEADER)

1шт.

49

106073A1

SHIELD

- drive hub SPECIAL PARTS USED ON MODELS WITH SPLIT AUGER AND KNIFE ( ON RIGHT-HAND SIDE OFF HEADER)

2шт.

50

106072A1

SHIELD

COVER - shield SPECIAL PARTS USED ON MODELS WITH SPLIT AUGER AND KNIFE DRIVE ( ON RIGHT-HAND SIDE OFF HEADER)

2шт.

51

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex, 1/4 NC x 3/4 inch SPECIAL PARTS USED ON MODELS WITH SPLIT AUGER AND KNIFE DRIVE ( ON RIGHT-HAND SIDE OFF HEADER)

6шт.

52

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange, lock, 1/4 inch SPECIAL PARTS USED ON MODELS WITH SPLIT AUGER AND KNIFE DRIVE ( ON RIGHT-HAND SIDE OFF HEADER)

4шт.

53

62372C1

THUMB SCREW

- thumb, 1/4 x 1/2 inch SPECIAL PARTS USED ON MODELS WITH SPLIT AUGER AND KNIFE DRIVE ( ON RIGHT-HAND SIDE OFF HEADER)

2шт.

54

564791R1

SPRING NUT

- speed, 1/4 inch SPECIAL PARTS USED ON MODELS WITH SPLIT AUGER AND KNIFE DRIVE ( ON RIGHT-HAND SIDE OFF HEADER)

4шт.
