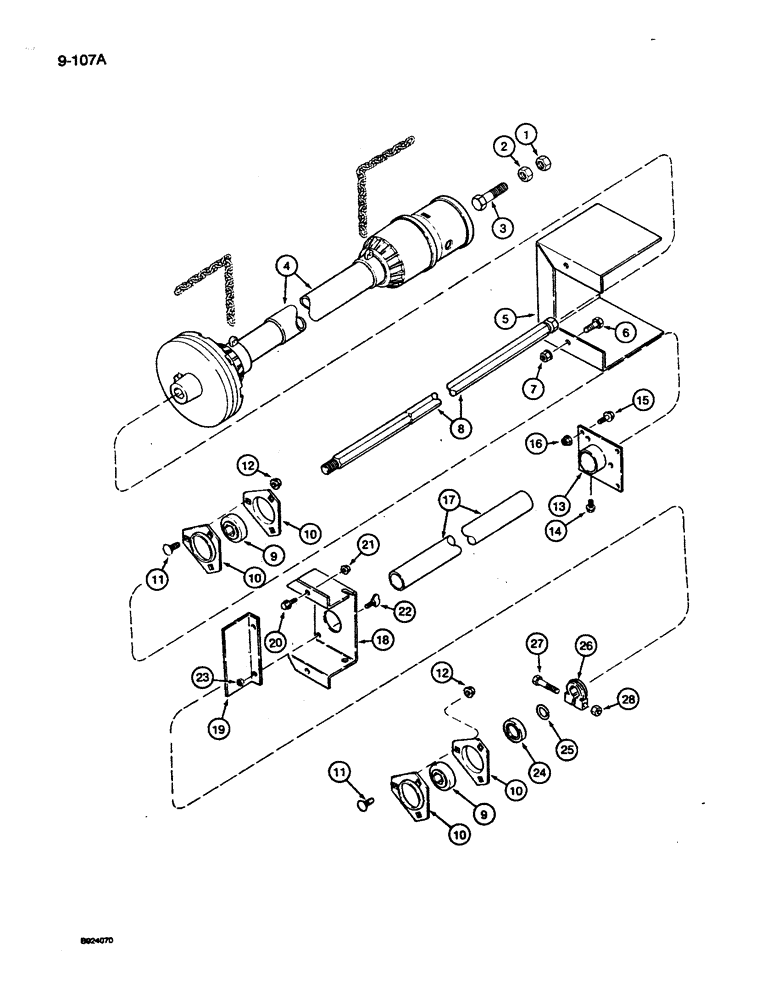

Запчасти Case IH 1010 (9-107A) - AUGER JACKSHAFT DRIVE, MOUNTED ON RIGHT-HAND SIDE OF HEADER, 22.5 AND 25.0 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

9413971

LOCK NUT,3/4"-10, GB

NUT - hex, self-locking, 3/4 inch NC

1шт.

2

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

3

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

1шт.

4

106043A1

DRIVE SHAFT

JOINT ASSEMBLY - drive shaft (See Figure 9-121A)

1шт.

5

106023A1

SHIELD

- clutch

1шт.

6

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex, 1/4 NC x 3/4 inch

2шт.

7

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange, lock, 1/4 inch

2шт.

8

106069A1

JACKSHAFT

SHAFT - jackshaft (22.5 foot)

1шт.

8

106070A1

JACKSHAFT

SHAFT - jackshaft (25.0 foot)

1шт.

9

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSEMBLY - jackshaft

2шт.

10

180955C1

FLANGED BEARING,0.375"

FLANGE - jackshaft bearing

4шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

6шт.

13

1320880C1

SHIELD

- J-shaft shield

1шт.

14

174856C1

BOLT,Hex Serr, 5/16" - 18 x 1/2"

- flanged hex, 5/16 NC x 1/2 inch

1шт.

15

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch NC

3шт.

16

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex lock, 5/16 NC x 3/4 inch

3шт.

17

1320877C1

TUBE,48.26 mm OD, 547 mm Length

- jackshaft shield (22.5 foot)

1шт.

17

1320876C1

TUBE,48.26 mm OD, 928 mm Length

- jackshaft shield (25.0 foot)

1шт.

18

106073A1

SHIELD

- drive hub

1шт.

19

106072A1

SHIELD

COVER - shield

1шт.

20

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex, 1/4 NC x 3/4 inch

2шт.

21

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange, lock, 1/4 inch

2шт.

22

62372C1

THUMB SCREW

- thumb, 1/4 x 1/2 inch

2шт.

23

564791R1

SPRING NUT

- speed, 1/4 inch

2шт.

24

935856R1

BUSHING

- drive shaft

1шт.

25

575186R1

SNAP RING

RING - retaining, slip clutch

1шт.

26

1327106C1

COLLAR

- shaft, main

1шт.

27

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

1шт.

28

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

1шт.
