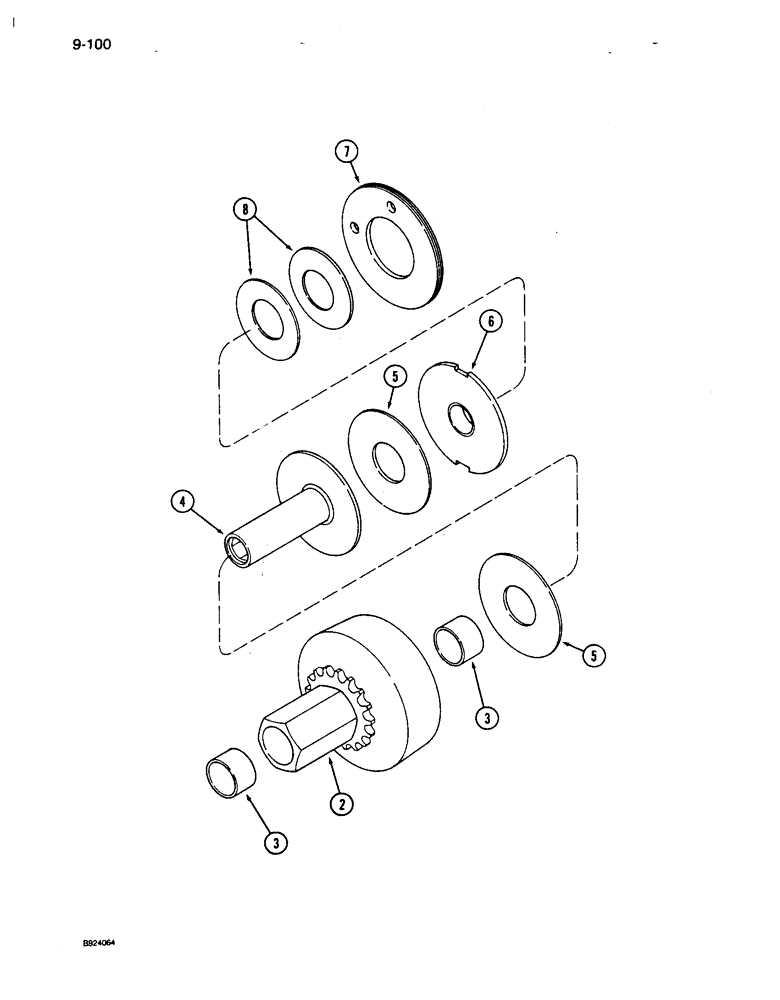

Запчасти Case IH 1010 (9-100) - AUGER DRIVE CLUTCH (58) - ATTACHMENTS/HEADERS

2

1326796C1

HOUSING

- auger drive clutch, Incl 3

1шт.

re itm no. 2, if dealers says the old plate asm does not fit the new hub, he will have to order the new plate 1326424c2 plate. see the sub on the old sprocket 1316739c91 for new part numbers to use.

1шт.

3

1305927C1

BUSHING

- housing

2шт.

4

1316741C1

HUB

- clutch inner

1шт.

5

1316742C1

FACING

- clutch

2шт.

6

1326424C2

PLATE

ASSEMBLY - clutch drive

1шт.

7

1316744C1

ADJUSTING PLATE

PLATE - clutch spring adjusting

1шт.

8

1316756C1

BELLEVILLE WASHER

WASHER - Belleville clutch

2шт.
