(9-096) - AUGER AND KNIFE DRIVE SHIELD AND SUPPORTS, PRIOR TO P.I.N. JJC0077390

Запчасти Case IH 1010 (9-096) - AUGER AND KNIFE DRIVE SHIELD AND SUPPORTS, PRIOR TO P.I.N. JJC0077390 (58) - ATTACHMENTS/HEADERS

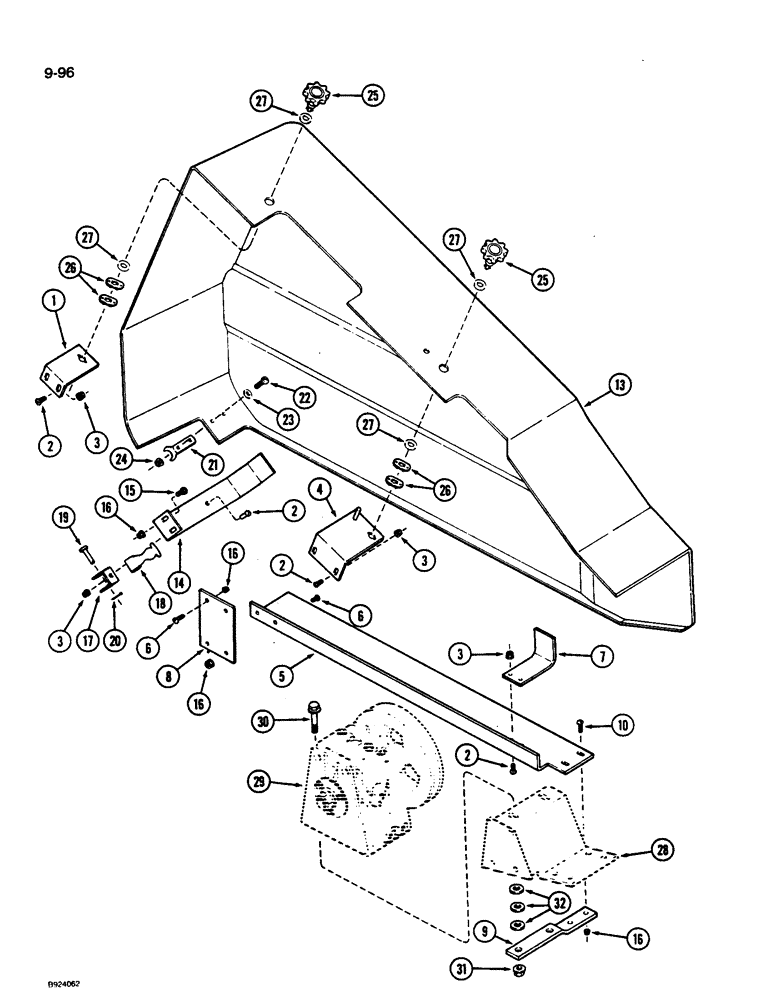

Схема запчастей Case IH 1010 - (9-096) - AUGER AND KNIFE DRIVE SHIELD AND SUPPORTS, PRIOR TO P.I.N. JJC0077390 (58) - ATTACHMENTS/HEADERS
20
31
22
32
29
27
16
28
3
26
2
8
16
15
4
17
2
3
24
16
18
16
13
14
27
7
10
1
21
25
25
6
27
26
3
30
27
9
19
2
6
5
23
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1316510C1

SUPPORT

ASSEMBLY - shield upper rear

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

6шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flanged hex lock, 5/16 inch NC

6шт.

4

1326758C1

SUPPORT

ASSEMBLY - shield upper front

1шт.

5

1320923C1

GUARD

SHIELD - lower tray

1шт.

6

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

4шт.

7

1316658C1

ANGLE

- shield support

1шт.

8

1320992C1

LARGE PLATE

PLATE - shield lower support

1шт.

9

1320955C1

BRACKET

SUPPORT - shield

1шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss, 3/8 NC x 1 inch

2шт.

13

1316691C2

COVER

SHIELD - drive, left

1шт.

ITEM #13 SHIELD - HEADER "RIGHT SIDE" CAN BE FOUND ON FIGURE 9-130 ITEM # 36 P/N# 1316566C3.

1шт.

14

1326386C1

SUPPORT

- shield lower rear

1шт.

15

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flanged hex, 3/8 NC x 3/4 inch

2шт.

16

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

8шт.

17

188103C1

BRACKET

YOKE - hook anchor

1шт.

18

494307C1

LATCH

HOOK - trim hold down

1шт.

19

22910R1

HEADED PIN

PIN - headed, 1/4 x 1-1/2 inch

1шт.

20

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

21

764071C1

BRACKET

- trim hook

1шт.

22

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

23

495-81101

WASHER,5.56mm ID x 19.05mm OD x 1.7mm Thk

Flat 7/32" x 3/4" x .060"

2шт.

24

174097C1

FLANGE NUT,Flg, USR, #10-24

- flanged hex lock, No. 10-24 inch

2шт.

25

1326408C2

STUD,25.4mm OD x 52.3mm L

STUD - shield fastener

2шт.

26

1326407C1

RETAINER

- shield stud

4шт.

27

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch

1шт.

28

REF

INSTRUCTION

SUPPORT - knife box (See Figure 9-128 or 132)

1шт.

29

REF

INSTRUCTION

BOX ASSEMBLY - knife drive (See Figure 9-82)

1шт.

30

414080C1

BOLT,Hex, 5/8" - 18 x 2 1/2"

- flanged hex, 5/8 NF x 2-1/2 inch, Grade 8

2шт.

31

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

32

25547R1

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, hardened, 21/32 x 1-5/16 x 3/16 inch

6шт.
