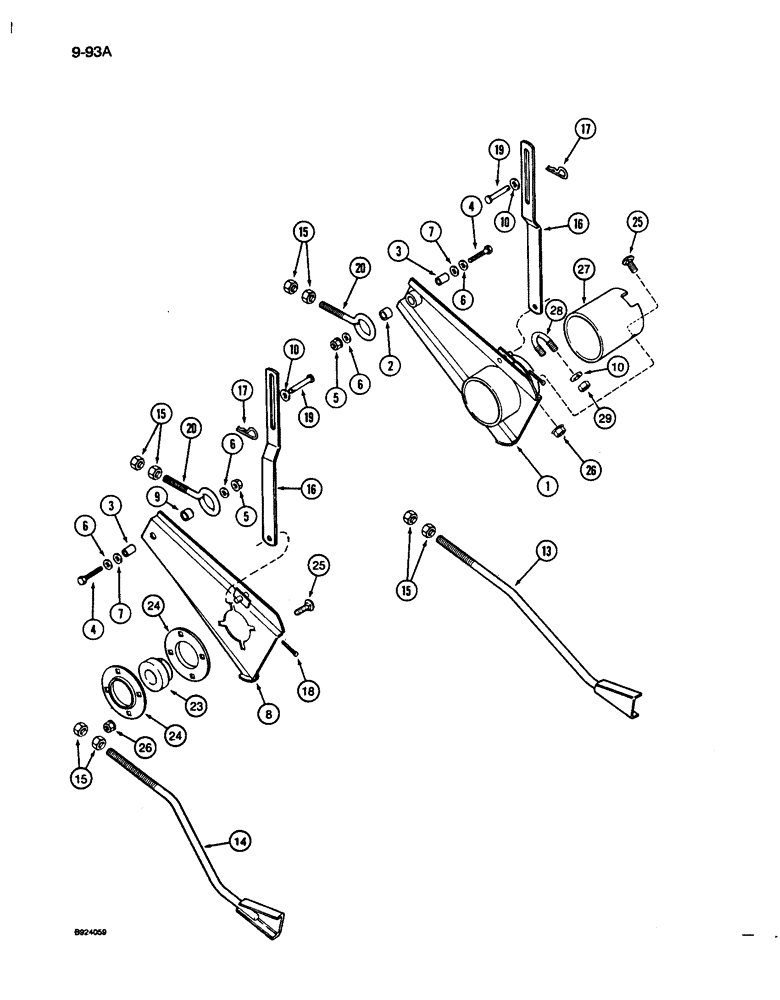

Запчасти Case IH 1010 (9-093A) - AUGER SUPPORTS, MODELS WITH AUGER DRIVE ON RIGHT-HAND SIDE OF HEADER, SPLIT KNIFE AND AUGER DRIVE (58) - ATTACHMENTS/HEADERS

1

106041A1

BRACKET

ASSEMBLY - left-hand side, auger

1шт.

2

189971C1

BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L

- pivot

1шт.

3

1968840C1

SPACER

- auger pivot

2шт.

4

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - flanged hex prevailing torque, 1/2 inch NC

2шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

7

495-81256

WASHER,19.84mm ID x 28.57mm OD x 0.84mm Thk

- flat, 25/32 x 1-1/8 x 3/64 inch

1шт.

8

106042A1

BRACKET

ASSEMBLY - right-hand side, auger

1шт.

9

189971C1

BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L

- pivot

1шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

8шт.

13

1307011C1

SUPPORT

- left-hand, auger adjusting

1шт.

14

106063A1

SUPPORT

- right-hand, auger adjusting

1шт.

15

425-1010

NUT,5/8"-11, G5

8шт.

16

1320723C1

SUPPORT

- auger lift

2шт.

17

480523R1

HAIR PIN COTTER

2шт.

18

432-1218

COTTER PIN,3/16" x 1 1/8"

3/16" x 1 1/8"

2шт.

19

23173R1

CLEVIS PIN

PIN - headed, 1/2 x 2-3/4 inch

2шт.

20

1308451C1

U-BOLT

EYE BOLT - auger pivot

2шт.

23

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING ASSEMBLY - drive shaft

1шт.

24

663562R1

FLANGE

- bearing, round (Alternate with 1307583C1)

2шт.

24

1307583C1

FLANGED BEARING

- bearing, square (Alternate with 663562R1)

2шт.

25

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

6шт.

26

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - flanged hex prevailing torque, 1/2 inch NC

6шт.

27

1320695C1

TUBE

ASSEMBLY - inner finger adjusting

1шт.

28

1307195C2

U-BOLT,1/2" - 13 x 40.37mm W x 55mm L, Gr 8

- 1/2 inch NC

1шт.

29

9413967

LOCK NUT,1/2"-13, GB

NUT - prevailing torque lock, 1/2 inch NC

2шт.
