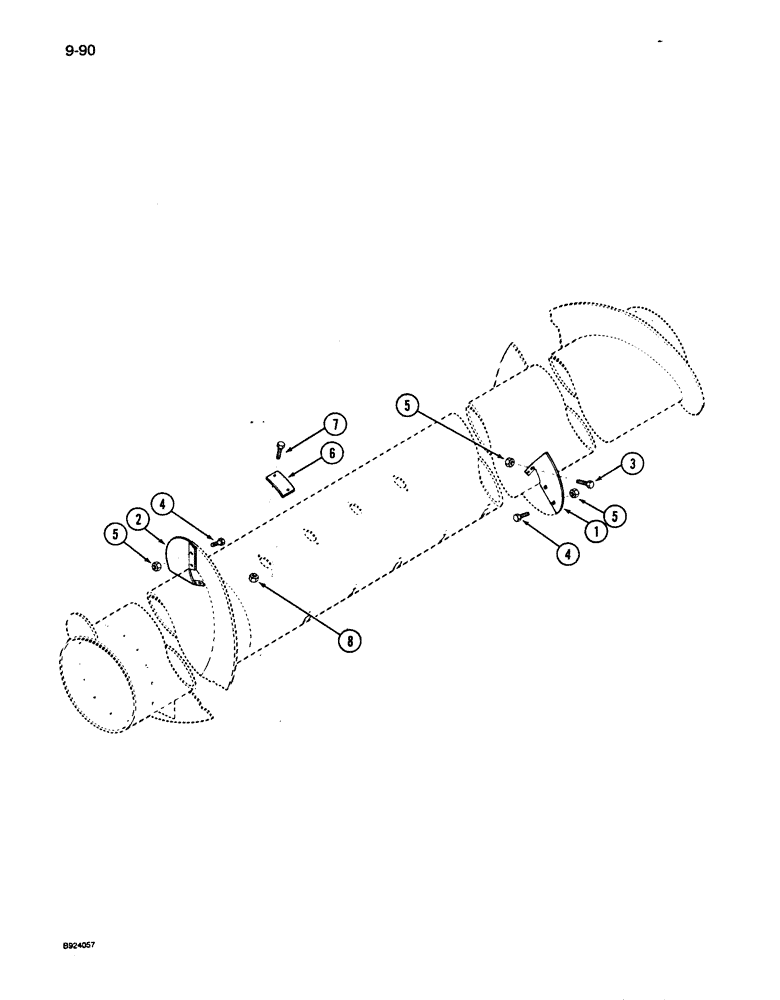

Запчасти Case IH 1010 (9-090) - AUGER FLIGHT EXTENSION (58) - ATTACHMENTS/HEADERS

1

1308445C2

EXTENSION

AUGER ASSEMBLY - left flight

1шт.

2

1308446C2

EXTENSION

AUGER ASSEMBLY - right flight

1шт.

3

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flanged hex, 1/2 NC x 1 inch

2шт.

4

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

4шт.

5

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - flanged hex prevailing torque lock, 1/2 inch NC

6шт.

6

167823C1

COVER

- finger hole

2шт.

7

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

8

273924

SNAP RING

NUT - hex lock, 1/4 inch NC

4шт.
