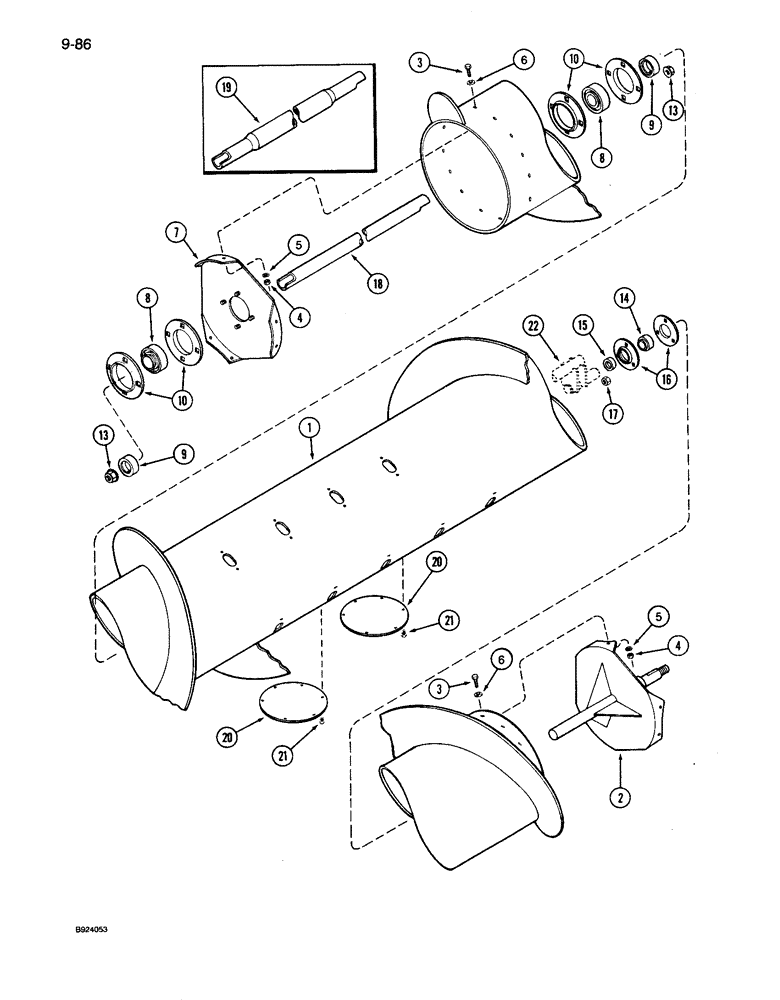

Запчасти Case IH 1010 (9-086) - AUGER, MODELS WITH AUGER DRIVE ON LEFT-HAND SIDE OF HEADER, WITH KNIFE DRIVE (58) - ATTACHMENTS/HEADERS

1

1307210C2

AUGER

ASSEMBLY - (15.0 foot)

1шт.

1

1307211C2

AUGER

ASSEMBLY - (17.5 foot)

1шт.

1

1307212C2

AUGER

ASSEMBLY - (20.0 foot)

1шт.

1

1338436C1

AUGER

ASSEMBLY - (22.5 foot) (Replaces 1313839C1)

1шт.

1

1313840C3

AUGER

ASSEMBLY - (25.0 foot)

1шт.

1

1313841C2

AUGER

ASSEMBLY - (30.0 foot)

1шт.

2

181817C1

SHAFT

ASSEMBLY - drive, left-hand end of auger, see page 9-93 for bearing flange and flanges on shaft end

1шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

12шт.

4

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, Grade 8

12шт.

5

366862C1

LOCK WASHER,3/8"

3/8"

12шт.

6

25534R1

WASHER

- flat, 13/32 x 13/16 x 1/16 inch

12шт.

7

1307256C1

RETAINER

ASSEMBLY - auger LH

1шт.

8

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING ASSEMBLY - auger shaft

2шт.

9

455112R11

COLLAR

- bearing lock (With set screw)

2шт.

10

663562R1

FLANGE

- bearing, round (Alternate with 1307583C1)

4шт.

10

1307583C1

FLANGED BEARING

- bearing, square (Alternate with 663562R1)

4шт.

13

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - flanged hex prevailing torque, 1/2 inch NC

8шт.

14

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - auger shaft inner

1шт.

15

455102R21

COLLAR

- bearing lock (With set screw)

1шт.

16

937517R1

FLANGE

- bearing

2шт.

17

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex prevailing torque lock, 5/16 inch NC

3шт.

18

1307262C1

TUBE,38.087 mm OD, 1793 mm Length

- finger adjusting (15.0 foot)

1шт.

18

1307263C1

TUBE,38.087 mm Diameter, 2174 mm Length

- finger adjusting (17.5 foot)

1шт.

18

1307264C1

TUBE,38.087 mm Diameter, 2555 mm Length

- finger adjusting (20.0 foot)

1шт.

18

1307265C1

TUBE,38.087 mm Diameter, 2936 mm Length

- finger adjusting (22.5 foot)

1шт.

19

1307266C1

TUBE

- finger adjusting (25.0 foot)

1шт.

19

1307267C1

TUBE

- finder adjusting (30.0 foot)

1шт.

20

184505C1

COVER

- handhole

2шт.

21

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

12шт.

22

REF

INSTRUCTION

SHAFT ASSEMBLY - finger (See Figure 9-88)

1шт.
