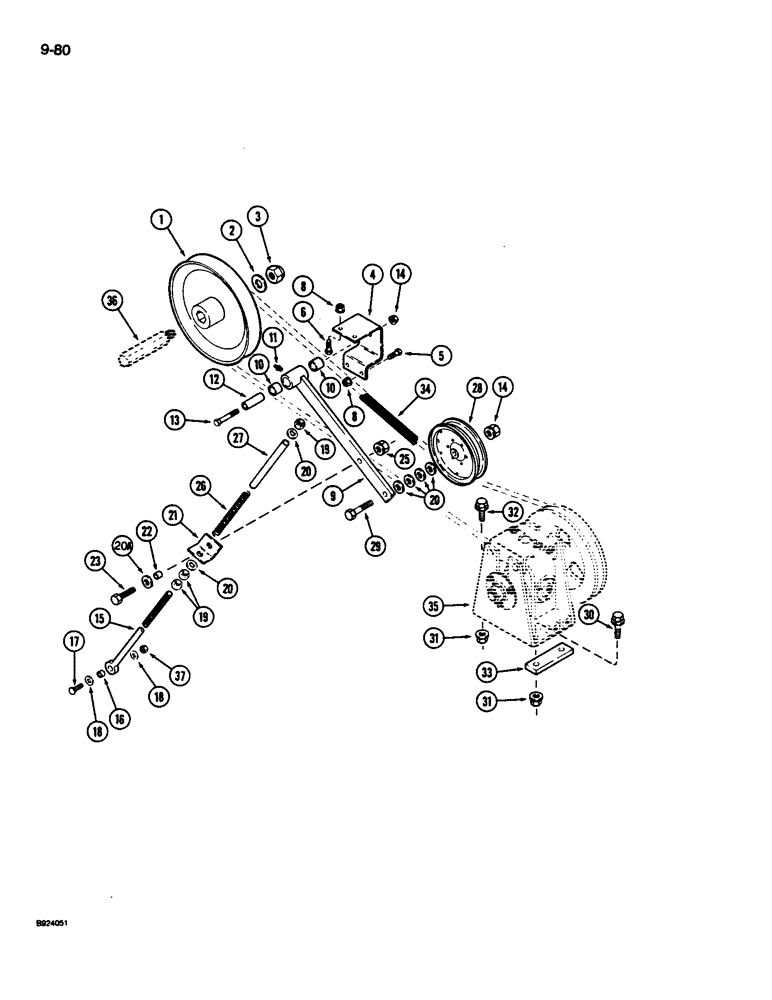

Запчасти Case IH 1010 (9-080) - KNIFE DRIVE (58) - ATTACHMENTS/HEADERS

1

1316047C1

PULLEY

ASSEMBLY - drive (267 mm OD), 500 rpm

1шт.

1

1316045C1

PULLEY

ASSEMBLY - drive (318 mm OD), 600 rpm

1шт.

For optional, use with 3 inch knife only.

1шт.

1

1989447C1

PULLEY

ASSEMBLY - drive (245 mm OD), 460 rpm

1шт.

For optional, use with 1.5 inch knife only.

1шт.

2

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch

1шт.

3

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

4

1307322C1

SUPPORT

- knife drive idler

1шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex flange lock, 3/8 NC x 1 inch

2шт.

6

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex lock, 3/8 NC x 1-1/4 inch

2шт.

8

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

9

1320835C91

ARM

ASSEMBLY - knife idler

1шт.

10

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- idler arm

2шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4 NF x 1/2 inch, self-tap

1шт.

12

1320825C1

SPACER

BUSHING - idler arm

1шт.

13

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

1шт.

14

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange lock, 1/2 inch NC

2шт.

15

1307324C1

EYEBOLT

BOLT - eye, knife drive tightener

1шт.

16

1316204C1

SPACER

- knife drive tightener bolt

1шт.

17

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - round head square neck, 3/8 NC x 1-1/2 inch (replaces 434-620 1-1/4 inch long bolt)

1шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 1/16", hardened

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

20

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

7шт.

20a

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

1шт.

21

1326001C1

ANGLE

- spring support

1шт.

22

484158R1

WASHER

- spacer

1шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces 413-820 1-1/4 inch bolt) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

25

487374R1

BEARING LOCK NUT,Flg, USR, 1/2"-13

- hex flange, self locking, 1/2 inch NC

1шт.

26

518926R1

SPRING

- knife drive idler

1шт.

27

1313255C1

TUBE,15.875 mm OD, 180 mm Length

- tightener spring

1шт.

28

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

- idler, 6 inch OD (Prior to P.I.N. JJC0077390)

1шт.

28

1338456C1

IDLER

- idler, 6 inch OD (P.I.N. JJC0077390 and After)

1шт.

29

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

30

414078C1

BOLT,Hex, 5/8" - 18 x 2", Gr 8

- hex flange, 5/8 NC x 2 inch, Grade 8

2шт.

A washer for Ref. 30 is P/N 25976R1.

1шт.

31

414089C1

FLANGE NUT,5/8" - 18

NUT, LOCK, 5/8"-18, GC

4шт.

32

414080C1

BOLT,Hex, 5/8" - 18 x 2 1/2"

- hex flanged, 5/8 NC x 2-1/2 inch, Grade 8

2шт.

33

1320172C1

BAR

- knife box front support

1шт.

34

1316573C1

V-BELT

BELT - drive, 97-11/16 inch (For 500 and 460 rpm drive)

1шт.

34

1316574C1

V-BELT,22.33 mm W x 2608.69 mm L

Drive, For 600 rpm Drive 22.33 mm W x 2608.69 mm L

1шт.

35

REF

INSTRUCTION

BOX ASSEMBLY - knife drive (includes pulley) (See Figure 9-82)

1шт.

36

REF

INSTRUCTION

SHAFT - jackshaft (See Pages 9-103 - 9-109B)

1шт.

37

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC

1шт.
