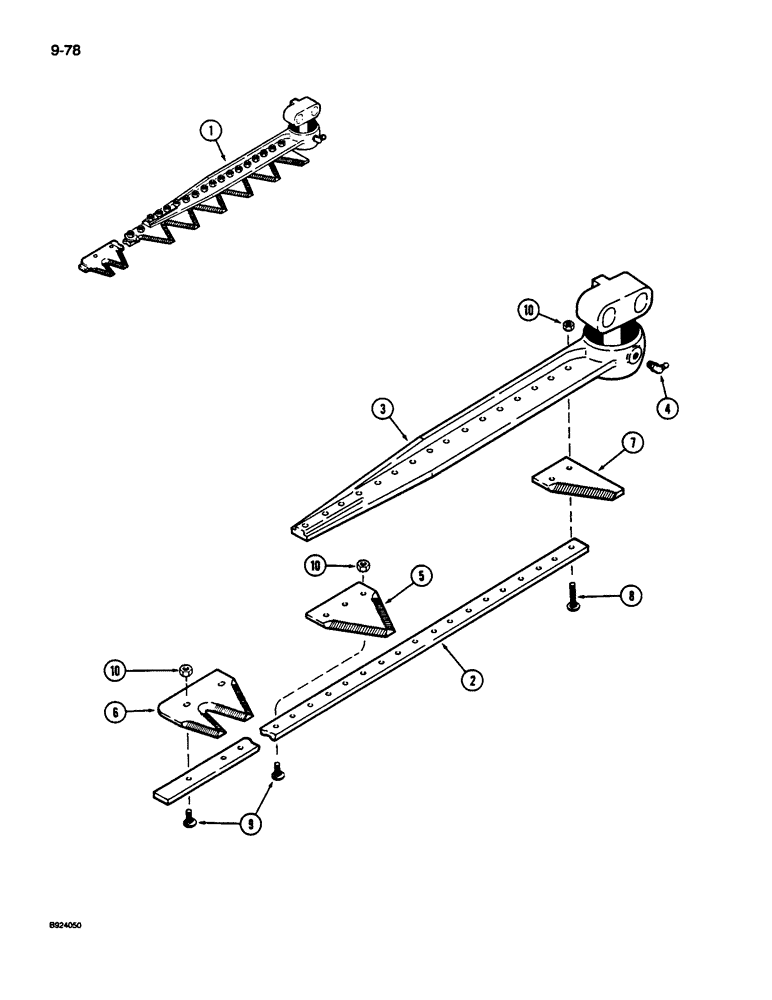

Запчасти Case IH 1010 (9-078) - KNIFE ASSEMBLY, 3 INCH - BOLTED, COLUMBUS AUTO (58) - ATTACHMENTS/HEADERS

1

1307281C96

KNIFE ASSY

KNIFE ASSEMBLY - 15.0 foot (replaces 1307281C93)

1шт.

When replacing a riveted knife assembly with a bolted knife assembly, use only knife hold-down clips specified for use with bolted knife sections.

1шт.

1

1307282C96

KNIFE ASSY

KNIFE ASSEMBLY - 17.5 foot (replaces 1307282C93)

1шт.

When replacing a riveted knife assembly with a bolted knife assembly, use only knife hold-down clips specified for use with bolted knife sections.

1шт.

1

1307283C96

KNIFE ASSY

KNIFE ASSEMBLY - 20.0 foot (replaces 1307283C93)

1шт.

When replacing a riveted knife assembly with a bolted knife assembly, use only knife hold-down clips specified for use with bolted knife sections.

1шт.

1

1307284C96

KNIFE ASSY

KNIFE ASSEMBLY - 22.5 foot (replaces 1307284C93)

1шт.

When replacing a riveted knife assembly with a bolted knife assembly, use only knife hold-down clips specified for use with bolted knife sections.

1шт.

1

1307285C96

KNIFE ASSY

KNIFE ASSEMBLY - 25.0 foot (replaces 1307285C93)

1шт.

When replacing a riveted knife assembly with a bolted knife assembly, use only knife hold-down clips specified for use with bolted knife sections.

1шт.

1

1307286C96

KNIFE ASSY

KNIFE ASSEMBLY - 30.0 foot (replaces 1307286C93)

1шт.

When replacing a riveted knife assembly with a bolted knife assembly, use only knife hold-down clips specified for use with bolted knife sections.

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1307297C92

KNIFE HEAD

HEAD ASSEMBLY - knife, no longer available, order 1316161C93 head on Figure 9-74

1шт.

4

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

5

826720C2

KNIFE SECTION

SECTION - knife, 3 inch overserrated

1шт.

6

148200C1

KNIFE SECTION

SECTION - knife, 3 inch, right end

1шт.

7

1316030C1

KNIFE SECTION

SECTION - knife, 3 inch, plain half

1шт.

8

1979166C1

BOLT

- truss head ribbed neck, No. 12-24 x 1-1/8 inch

16шт.

9

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

SCREW - truss head ribbed neck, No. 12-24 x 5/8 inch

1шт.

10

1954816C1

LOCK NUT

NUT - hex lock, No. 12-24

1шт.
