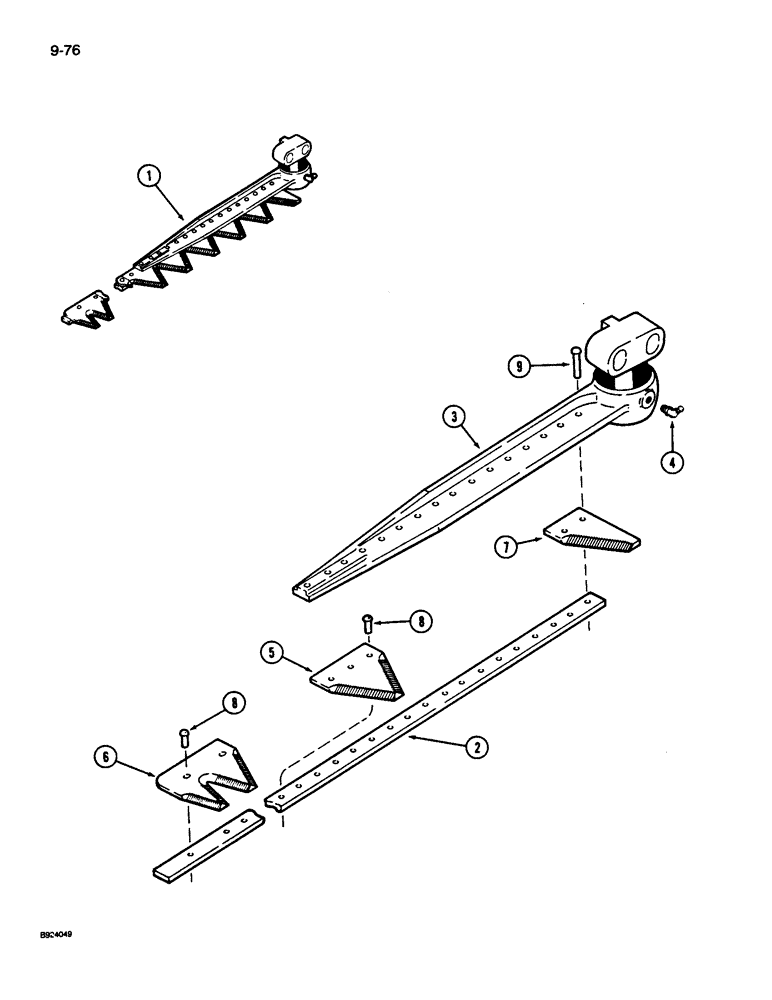

Запчасти Case IH 1010 (9-076) - KNIFE ASSEMBLY, 3 INCH - RIVETED, COLUMBUS AUTO (58) - ATTACHMENTS/HEADERS

1

1307281C92

KNIFE ASSY

KNIFE ASSEMBLY - 15.0 foot, used with rivets, no longer available, order 1307281C96 knife and 1307280C3 clips on page 9-73, items 1A and 20

1шт.

1

1307282C92

KNIFE ASSY

KNIFE ASSEMBLY - 17.5 foot, used with rivets, no longer available, order 1307282C96 knife and 1307280C3 clips on page 9-73, items 1A and 20

1шт.

1

1307283C92

KNIFE ASSY

KNIFE ASSEMBLY - 20.0 foot, used with rivets, no longer available, order 1307283C96 knife and 1307280C3 clips on page 9-73, items 1A and 20

1шт.

1

1307284C92

KNIFE ASSY

KNIFE ASSEMBLY - 22.5 foot, used with rivets, no longer available, order 1307284C96 knife and 1307280C3 clips on page 9-73, items 1A and 20

1шт.

1

1307285C92

KNIFE ASSY

KNIFE ASSEMBLY - 25.0 foot, used with rivets, no longer available, order 1307285C96 knife and 1307280C3 clips on page 9-73, items 1A and 20

1шт.

1

1307286C92

KNIFE ASSY

KNIFE ASSEMBLY - 30.0 foot, used with rivets, no longer available, order 1307286C96 knife and 1307280C3 clips on page 9-73, items 1A and 20

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1307297C91

CYLINDER HEAD

HEAD ASSEMBLY - used with item 1 knife, no longer available

1шт.

order 1316161C93 head, item 3A on page 9-73

1шт.

4

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

5

826720C2

KNIFE SECTION

SECTION - over-serrated

1шт.

6

148200C1

KNIFE SECTION

SECTION - right end

1шт.

7

1316030C1

KNIFE SECTION

SECTION - plain half

1шт.

8

991059R91

RIVET

- oval head, No. 6 x 5/8 inch (2 lb box), item 1 knife, if used

1шт.

9

2195

RIVET

- oval head, No. 5-1/2 x 1-1/8 inch (1 lb box), item 1 knife, if used

1шт.
