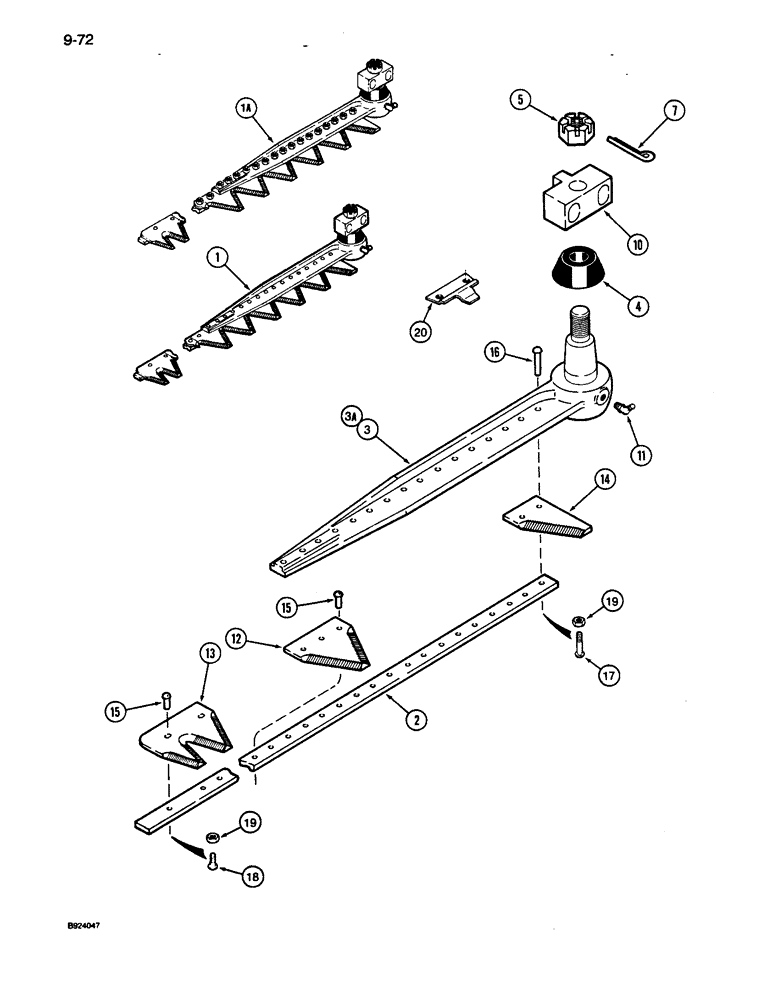

Запчасти Case IH 1010 (9-072) - KNIFE ASSEMBLY, 3 INCH - RIVETED, TRW (58) - ATTACHMENTS/HEADERS

1

1307281C92

KNIFE ASSY

KNIFE ASSEMBLY - 15.0 foot, used with rivets, no longer available, order 1307281C96 knife, item 1A and item 20 clip

1шт.

See page 1-5 for clip quantities.

1шт.

1

1307282C92

KNIFE ASSY

KNIFE ASSEMBLY - 17.5 foot, used with rivets, no longer available, order 1307282C96 knife, item 1A and item 20 clip

1шт.

See page 1-5 for clip quantities.

1шт.

1

1307283C92

KNIFE ASSY

KNIFE ASSEMBLY - 20.0 foot, used with rivets, no longer available, order 1307283C96 knife, item 1A and item 20 clip

1шт.

See page 1-5 for clip quantities.

1шт.

1

1307284C92

KNIFE ASSY

KNIFE ASSEMBLY - 22.5 foot, used with rivets, no longer available, order 1307284C96 knife, item 1A and item 20 clip

1шт.

See page 1-5 for clip quantities.

1шт.

1

1307285C92

KNIFE ASSY

KNIFE ASSEMBLY - 25.0 foot, used with rivets, no longer available, order 1307285C96 knife, item 1A and item 20 clip

1шт.

See page 1-5 for clip quantities.

1шт.

1

1307286C92

KNIFE ASSY

KNIFE ASSEMBLY - 30.0 foot, used with rivets, no longer available, order 1307286C96 knife, item 1A and item 20 clip

1шт.

See page 1-5 for clip quantities.

1шт.

1a

1307281C96

KNIFE ASSY

KNIFE ASSEMBLY - 15.0 foot, used with bolts and nuts

1шт.

1a

1307282C96

KNIFE ASSY

KNIFE ASSEMBLY - 17.5 foot, used with bolts and nuts

1шт.

1a

1307283C96

KNIFE ASSY

KNIFE ASSEMBLY - 20.0 foot, used with bolts and nuts

1шт.

1a

1307284C96

KNIFE ASSY

KNIFE ASSEMBLY - 22.5 foot, used with bolts and nuts

1шт.

1a

1307285C96

KNIFE ASSY

KNIFE ASSEMBLY - 25.0 foot, used with bolts and nuts

1шт.

1a

1307286C96

KNIFE ASSY

KNIFE ASSEMBLY - 30.0 foot, used with bolts and nuts

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1316161C91

KNIFE HEAD

HEAD ASSEMBLY - used with item 1 knife

1шт.

3a

1316161C93

KNIFE HEAD

HEAD ASSEMBLY - used with item 1A knife

1шт.

4

1345491C1

DUST CAP

COVER - dust

1шт.

5

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

7

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

10

1313797C1

BLOCK

BOSS - knife head

1шт.

11

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

12

826720C2

KNIFE SECTION

SECTION - over serrated

1шт.

13

148200C1

KNIFE SECTION

SECTION - right end

1шт.

14

1316030C1

KNIFE SECTION

SECTION - plain half

1шт.

15

991059R91

RIVET

- oval head, No. 6 x 5/8, inch (2 lb box), item 1 knife, if used

1шт.

16

2195

RIVET

- oval head, No. 5-1/2 x 1-1/8 inch (1 lb box), item 1 knife, if used

1шт.

17

1979166C1

BOLT

- truss head ribbed neck, No. 12-24 x 1-1/8 inch, item 1A knife, if used

16шт.

18

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

SCREW - truss head ribbed neck, No. 12-24 x 5/8 inch, item 1A knife, if used

1шт.

19

1954816C1

LOCK NUT

NUT - hex lock, No. 12-24, item 1A knife, if used

1шт.

20

1307280C3

KNIFE CLIP

CLIP - knife hold down, if used, see Note A for clip quantities

1шт.
