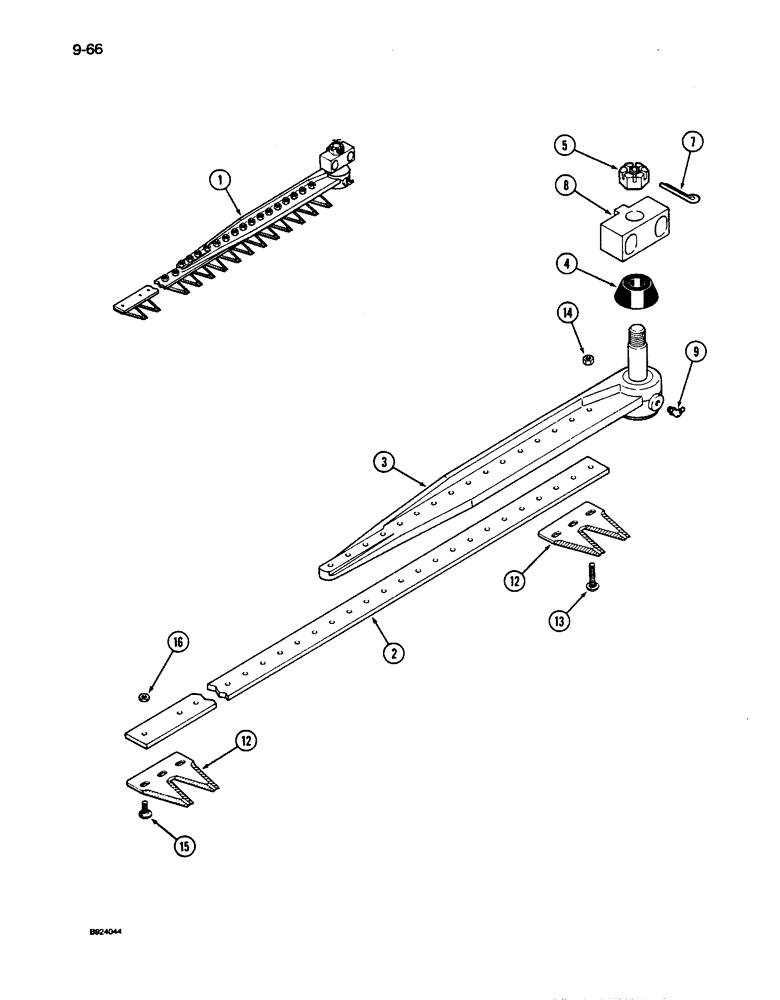

Запчасти Case IH 1010 (9-066) - KNIFE ASSEMBLY, 1.5 INCH - BOLTED, TRW (58) - ATTACHMENTS/HEADERS

1

1970502C3

KNIFE ASSY

KNIFE ASSEMBLY - 15.0 foot (See Note A)(replaces 1970502C1)

1шт.

1

1970504C3

KNIFE ASSY

KNIFE ASSEMBLY - 17.5 foot (See Note A)(replaces 1970504C1)

1шт.

1

1970400C1

KNIFE ASSY

KNIFE ASSEMBLY - 20.0 foot (See Note A)

1шт.

1

1970442C1

KNIFE ASSY

KNIFE ASSEMBLY - 22.5 foot (See Note A)

1шт.

1

1970402C1

KNIFE ASSY

KNIFE ASSEMBLY - 25.0 foot (See Note A)

1шт.

1

1970404C3

KNIFE ASSY

KNIFE ASSEMBLY - 30.0 foot (See Note A)(replaces 1970404C1)

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1313795C92

KNIFE HEAD

HEAD ASSEMBLY - knife

1шт.

4

1345491C1

DUST CAP

COVER - dust

1шт.

5

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

7

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

8

1313797C1

BLOCK

BOSS - knife

1шт.

9

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

12

1970390C3

KNIFE SECTION

SECTION - knife, 1-1/2 inch overserrated, bolt type (replaces 1970390C1 section)

1шт.

13

1970506C1

CARRIAGE BOLT,#12 - 24 x 1.125" , Gr 8

BOLT - round head oval neck, No. 12-24 x 1-1/8 inch, Grade 8

16шт.

14

1954816C1

LOCK NUT

NUT - hex lock, No. 12-24

16шт.

15

1970505C1

CARRIAGE BOLT,#12 - 24 x 0.532", Gr 8

BOLT - round head oval neck, No. 12-24 x 17/32 inch, Grade 8

1шт.

16

1970507C2

LOCK NUT

NUT - hex lock, No. 12-24

1шт.
