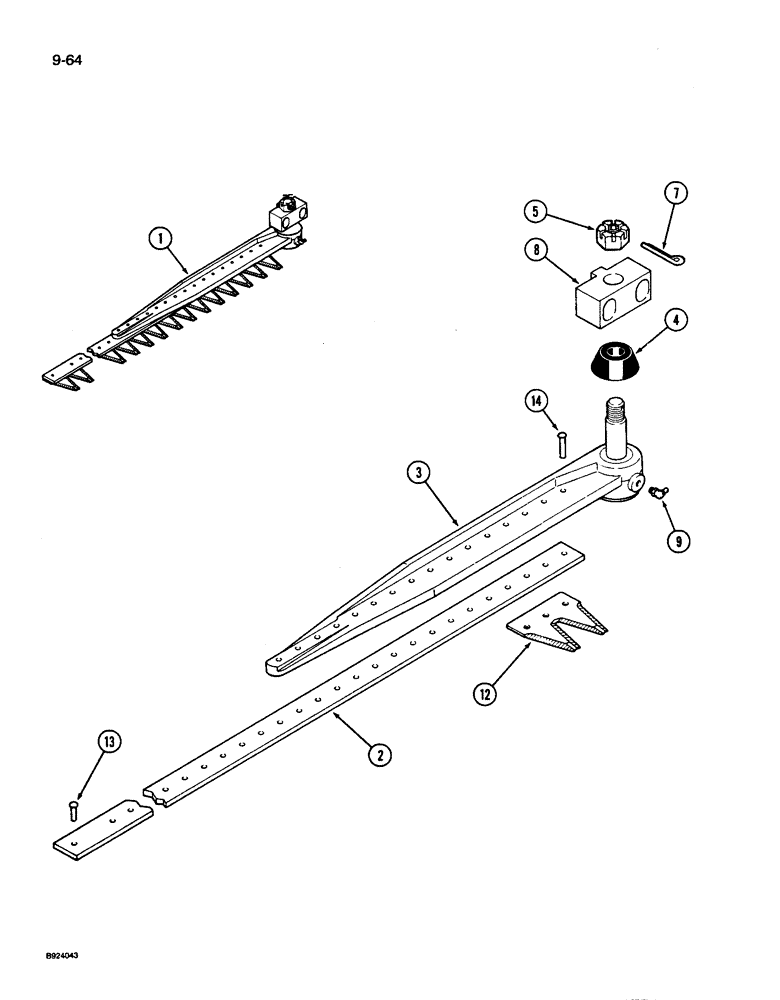

Запчасти Case IH 1010 (9-064) - KNIFE ASSEMBLY, 1.5 INCH - RIVETED, TRW (58) - ATTACHMENTS/HEADERS

1

1307165C91

KNIFE ASSY

KNIFE ASSEMBLY - 15.0 foot

1шт.

1

1307166C91

KNIFE

ASSEMBLY - 17.5 foot

1шт.

1

1307167C91

KNIFE ASSY

KNIFE ASSEMBLY - 20.0 foot

1шт.

1

1307168C91

KNIFE ASSY

KNIFE ASSEMBLY - 22.5 foot, no longer available, order 1970442C1 knife on Figure 9-66

1шт.

1

1307169C91

KNIFE ASSY

KNIFE ASSEMBLY - 25.0 foot, no longer available, order 1970402C1 knife on Figure 9-66

1шт.

1

1307170C91

KNIFE ASSY

KNIFE ASSEMBLY - 30.0 foot, no longer available, order 1970404C3 knife on Figure 9-66

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1313795C92

KNIFE HEAD

HEAD ASSEMBLY - knife

1шт.

4

1345491C1

DUST CAP

COVER - dust

1шт.

5

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

7

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

8

1313797C1

BLOCK

BOSS - knife head

1шт.

9

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

12

1305239C1

KNIFE SECTION

SECTION - over-serrated

1шт.

13

991059R91

RIVET

- oval head, No 6 x 5/8 inch (2 lb box)

1шт.

14

2195

RIVET

- oval head, No 5-1/2 x 1-1/8 inch (1 lb box)

16шт.
