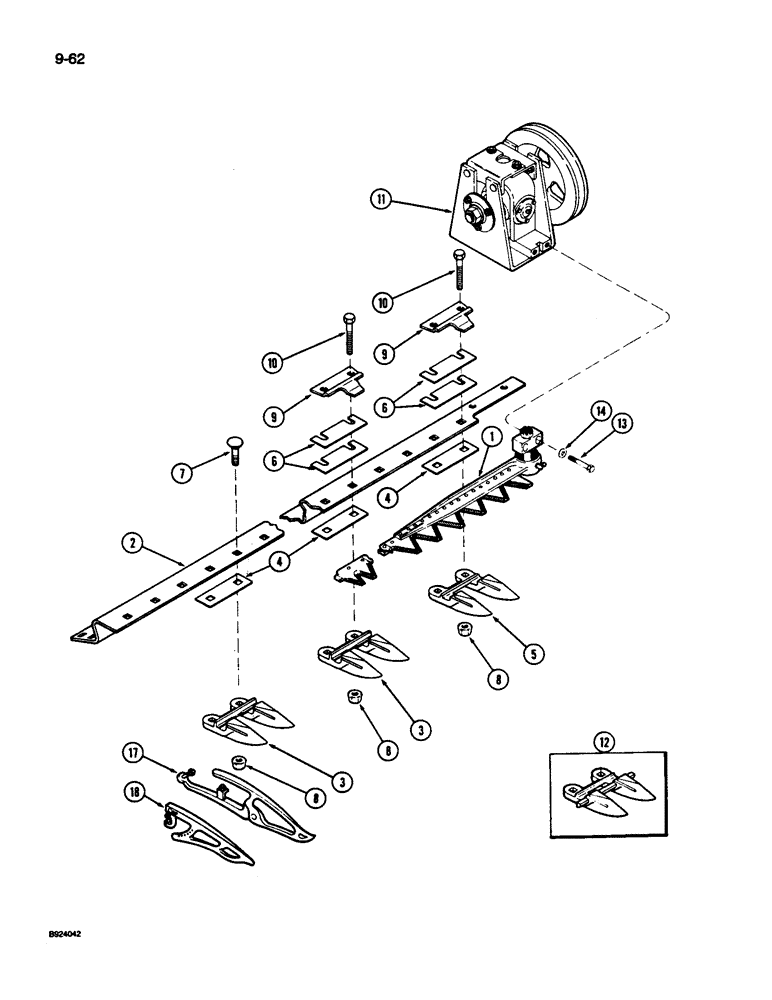

Запчасти Case IH 1010 (9-062) - KNIFE GUARDS AND CUTTER BAR, 3 INCH (58) - ATTACHMENTS/HEADERS

1

REF

INSTRUCTION

KNIFE ASSEMBLY - 3 inch (See Figure 9-72 through 9-78)

1шт.

2

1307124C1

BAR

- cutter (15.0 foot)

1шт.

2

1307125C1

BAR

- cutter (17.5 foot)

1шт.

2

1307126C1

BAR

- cutter (20.0 foot)

1шт.

2

1307127C1

BAR

- cutter (22.5 foot)

1шт.

2

1307128C1

BAR

- cutter (25.0 foot)

1шт.

2

1307129C1

BAR

- cutter (30.0 foot)

1шт.

3

1307299C1

GUARD

- double

1шт.

See application index on Page 1-5 for required quantities.

1шт.

4

126628C1

SHIM

- 0.090 inch

1шт.

5

1326787C2

GUARD

- double, left

3шт.

6

1316040C1

SHIM,38.1mm OD x 2.1mm Thk

- 0.067 inch

1шт.

7

434-724

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - round head square neck, 7/16 NC x 1-1/2 inch

1шт.

8

1313463C1

FLANGE NUT

NUT - small flange, 7/16 inch NC

1шт.

9

1307280C3

KNIFE CLIP

CLIP - knife hold down

1шт.

See application index on Page 1-5 for required quantities.

1шт.

10

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

11

REF

INSTRUCTION

BOX ASSEMBLY - knive drive (See Figure 9-82)

1шт.

12

613838R2

GUARD

- double (If equipped)

1шт.

This is a standard guard. Now there is a double heat-treated guard P/N 187350A1.

1шт.

See application index on Page 1-5 for required quantities.

1шт.

13

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

17

909346R91

GRAIN LIFTER

LIFTER - grain

1шт.

18

163417C91

GRAIN LIFTER

LIFTER - grain, heavy duty

1шт.
