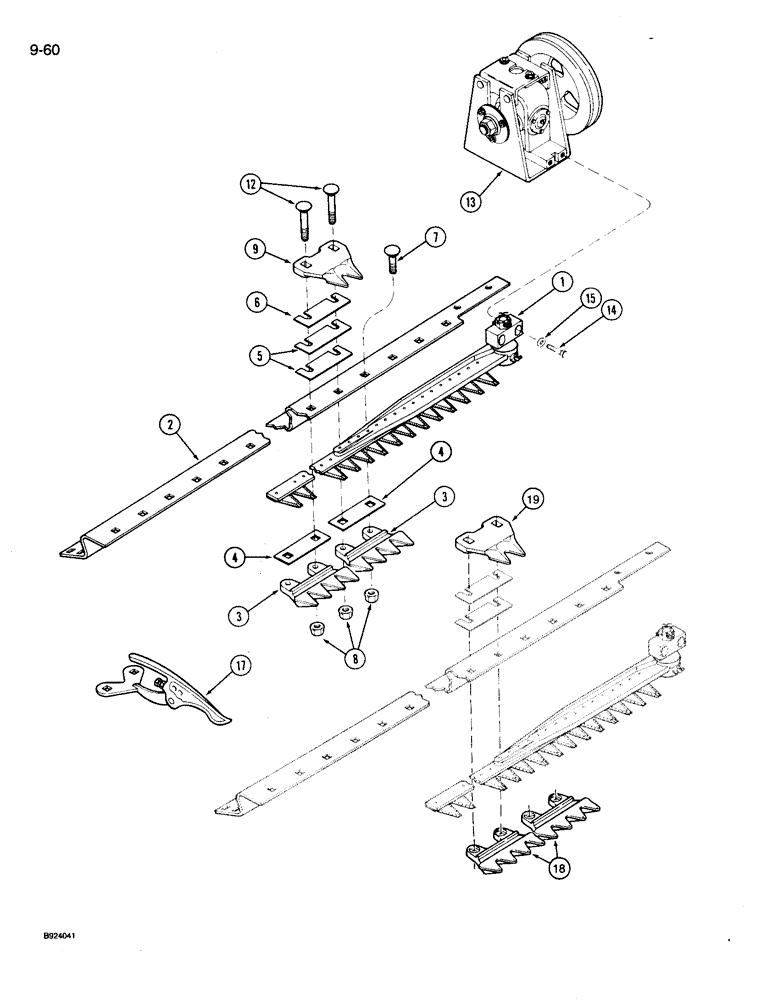

Запчасти Case IH 1010 (9-060) - KNIFE GUARDS AND CUTTER BAR, 1.5 INCH (58) - ATTACHMENTS/HEADERS

1

REF

INSTRUCTION

KNIFE ASSEMBLY - 1.5 inch (See Figure 9-645 through 9-70)

1шт.

2

1307124C1

BAR

- cutter (15.0 foot)

1шт.

2

1307125C1

BAR

- cutter (17.5 foot)

1шт.

2

1307126C1

BAR

- cutter (20.0 foot)

1шт.

2

1307127C1

BAR

- cutter (22.5 foot)

1шт.

2

1307128C1

BAR

- cutter (25.0 foot)

1шт.

2

1307129C1

BAR

- cutter (30.0 foot)

1шт.

3

1305195C1

SHIELD

GUARD - 4 point (See Note), V-shaped indents, no longer available, order 1989552C1 guard, item 18

1шт.

4

126628C1

SHIM

- 0.090 inch

1шт.

5

1316040C1

SHIM,38.1mm OD x 2.1mm Thk

- 0.067 inch

1шт.

6

1316039C1

SHIM

- 0.016 inch

1шт.

7

434-724

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - round head square neck, 7/16 NC x 1-1/2 inch

1шт.

8

1313463C1

FLANGE NUT

NUT - small flange, self-locking, 7/16 inch NC

1шт.

9

1320746C3

ANCHOR

CLIP - knife hold down (See Note), used with item 3, if used

1шт.

12

434-736

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT - round head square neck, 7/16 NC x 2-1/4 inch, if used

1шт.

13

REF

INSTRUCTION

BOX ASSEMBLY - knife drive (See Figure 9-82)

1шт.

14

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

17

1326538C91

GRAIN LIFTER

LIFTER - grain

1шт.

18

1989552C1

GUARD

- 4 point, U-shaped indents

1шт.

19

101001A1

GUARD

CLIP - knife hold down (See Note), used with item 18 guard

1шт.
