(9-054) - REEL CONTROL ATTACHMENT, HYDRAULIC REEL DRIVE, 1420E, 1440E, 1460E AND 1480E COMBINE

Запчасти Case IH 1010 (9-054) - REEL CONTROL ATTACHMENT, HYDRAULIC REEL DRIVE, 1420E, 1440E, 1460E AND 1480E COMBINE (58) - ATTACHMENTS/HEADERS

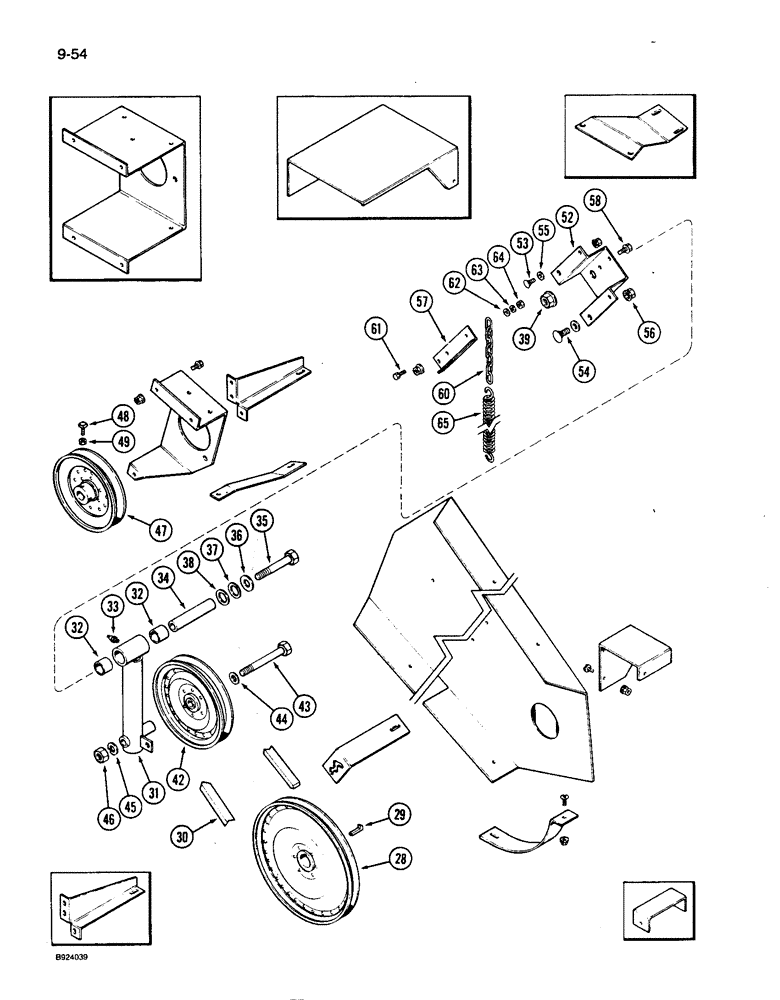

Схема запчастей Case IH 1010 - (9-054) - REEL CONTROL ATTACHMENT, HYDRAULIC REEL DRIVE, 1420E, 1440E, 1460E AND 1480E COMBINE (58) - ATTACHMENTS/HEADERS
42
32
52
48
39
56
44
29
28
49
57
38
64
31
65
60
55
43
47
62
37
34
61
58
53
63
32
45
54
36
35
33
30
46
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

28

176562C2

PULLEY

- feeder jackshaft pump drive

1шт.

29

Q1497

KEY,Gib, 3/8" Sq x 2"

- tapered, 3/8 x 2 inch

1шт.

30

197414C2

BELT,22.33 mm W x 3706.69 mm L

V-BELT , Reel drive, 1420E and 1480E combine 22.33 mm W x 3706.69 mm L

1шт.

30

197411C1

V-BELT,132" L

131.69" L - Reel drive, 1440E and 1460E combine

1шт.

31

195528C92

ARM

LEVER ASSEMBLY - tightener arm

1шт.

32

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

- tightener arm

2шт.

33

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4-28 straight

1шт.

34

198410C1

SPACER

- tightener arm

1шт.

35

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

36

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

37

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

1шт.

38

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

- flat, 1-1/32 x 1-1/2 x 3/32 inch

1шт.

39

195313C1

FLANGE NUT,Flg, USR, 5/8"-12

- flange lock, 5/8 inch NC

1шт.

42

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

- belt idler

1шт.

43

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

44

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

1шт.

45

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

46

425-1010

NUT,5/8"-11, G5

1шт.

47

193252C1

PULLEY

ASSY, pump driven, 7.5" O.D., 7/8" I.D.

1шт.

48

485-13814

SET SCREW,Sq Hd, 3/8"-16 x 7/8"

SCREW - set, square head, 3/8 NC x 7/8 inch

1шт.

49

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

52

187876C1

SUPPORT

- pivot anchor, 1420E combine

1шт.

52

195526C1

SUPPORT

- pivot anchor, 1440E and 1460E combine

1шт.

52

195527C1

SUPPORT

- pivot anchor, 1480E combine

1шт.

53

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

54

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

1шт.

55

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

56

195312C1

FLANGE NUT,Flg, USR, 1/2"-13, G8

- flange lock, 1/2 inch NC

1шт.

57

195531C1

SUPPORT

- spring anchor, 1440E, 1460E and 1480E combine

1шт.

58

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange 3/8 NC x 3/4 inch

1шт.

60

167570C1

CHAIN,203.2mm L

- reel drive idler pulley arm, 1440E, 1460E and 1480E combine

1шт.

61

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

62

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

2шт.

62

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, 1440E, 1460E and 1480E combine

2шт.

63

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1440E, 1460E and 1480E combine 1/4"

2шт.

64

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, 1440E, 1460E and 1480E combine

1шт.

65

NLS

NO LONGER SERVICED

- reel drive idler pulley arm

1шт.
