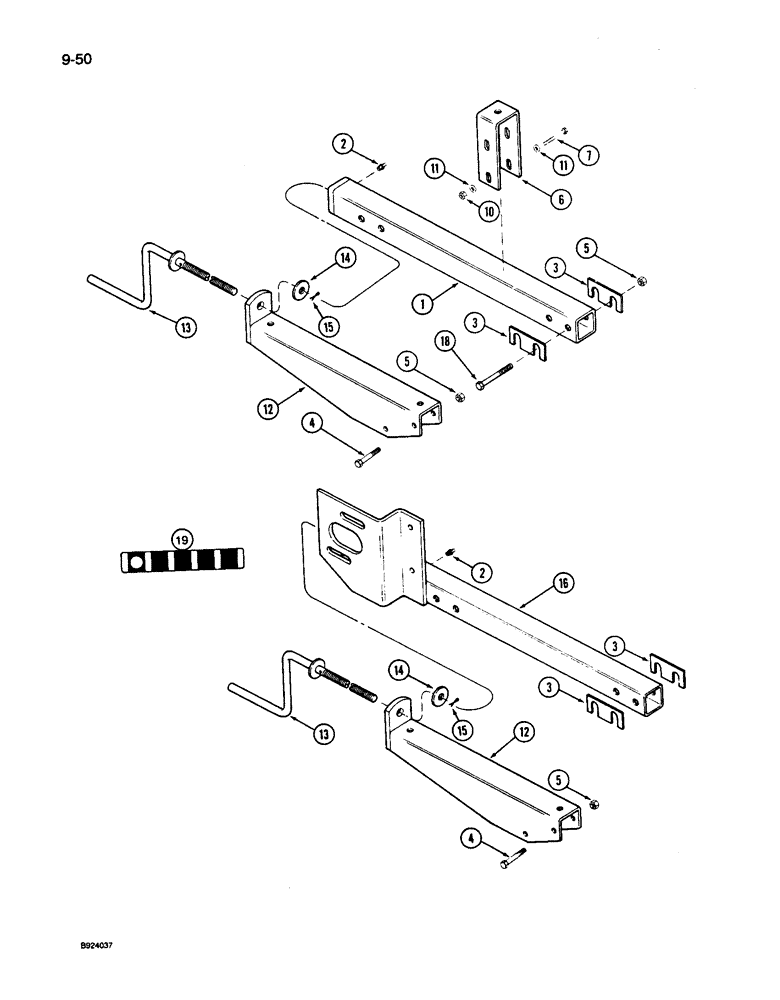

Запчасти Case IH 1010 (9-050) - REEL FORE AND AFT ADJUSTMENT, MECHANICAL (58) - ATTACHMENTS/HEADERS

1

1308360C1

SUPPORT

ASSEMBLY - reel, left

1шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING - grease, 1/4-28 taper drive thread (If equipped)

2шт.

3

1316478C1

BAR

- reel support

4шт.

4

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

4шт.

5

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

6шт.

6

1308355C1

YOKE

- reel support

1шт.

7

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

10

188472C1

FLANGE NUT,Flg, 1/4"-20

NUT - hex prevailing torque lock

2шт.

11

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

12

1316313C1

SUPPORT

ASSEMBLY - reel adjustment

2шт.

13

1308364C1

CRANK

ASSEMBLY - reel adjustment

2шт.

14

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

2шт.

15

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

16

REF

INSTRUCTION

SUPPORT ASSEMBLY - reel drive (See Figure 9-40)

1шт.

18

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

19

1320807C1

DECAL

- adjustment

2шт.
