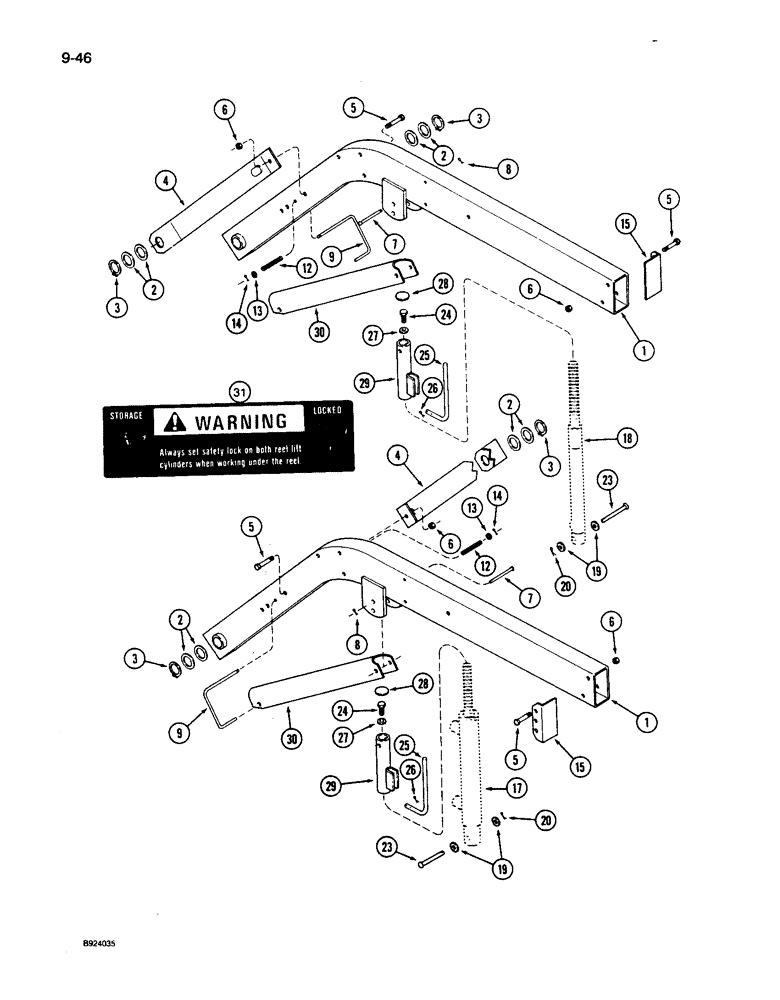

Запчасти Case IH 1010 (9-046) - REEL SUPPORT ARMS AND LIFT CYLINDER (58) - ATTACHMENTS/HEADERS

1

1308352C2

ARM

ASSEMBLY - support

2шт.

REF # 1 - p/n 1308352C2 S-5007 SERV BULLETIN. HEADER REEL LIFT ARM PIVOT INTERFERENCE SUSPECT ON S/N 501 TO 546.

1шт.

2

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

10шт.

3

152450R1

SNAP RING,#125, Ext

RING - external retaining, 1.156 inch

4шт.

4

1307173C1

SUPPORT

- arm

2шт.

5

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

4шт.

6

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

4шт.

7

23171R1

SPLIT PIN/SAFETY PIN

PIN - headed, 1/2 x 3 inch

2шт.

8

432-1216

COTTER PIN,3/16" x 1"

2шт.

9

1320928C1

ROD

- safety stand support

2шт.

12

M296

SPRING

2шт.

13

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

14

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

15

1305175C2

SUPPORT

BRACKET - reflector

2шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - master (See Figure 8-18 or 8-22)

1шт.

18

REF

INSTRUCTION

CYLINDER ASSEMBLY - slave (See Figure 8-20 or 8-24)

1шт.

19

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch

1шт.

20

432-1216

COTTER PIN,3/16" x 1"

2шт.

23

468286R1

HEADED PIN,12.7mm OD x 92.08mm L

PIN - headed, 1/2 x 2-3/16 inch

2шт.

24

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch

2шт.

25

1320927C1

ROD

- cylinder adjusting

2шт.

26

480523R1

HAIR PIN COTTER

quick attachable

2шт.

27

396-11066

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

28

1316193C1

PLUG

- button

2шт.

29

1320926C1

TUBE

ASSEMBLY - reel arm adjusting, 1 1/4" (See Note A)

2шт.

29

1316947C1

TUBE

ASSEMBLY - reel arm adlusting, 1" (See Note B)

2шт.

30

1326569C91

SUPPORT

ASSEMBLY - lift cylinder safety (With decal) (See Note B)

2шт.

30

1326052C91

SUPPORT

ASSEMBLY - lift cylinder safety (With decal) (See Note A)

2шт.

31

1316994C1

DECAL

- Warning, Always set safety lock on both reel lift cylinders, also shown on Figure 9-144, item 10

1шт.
