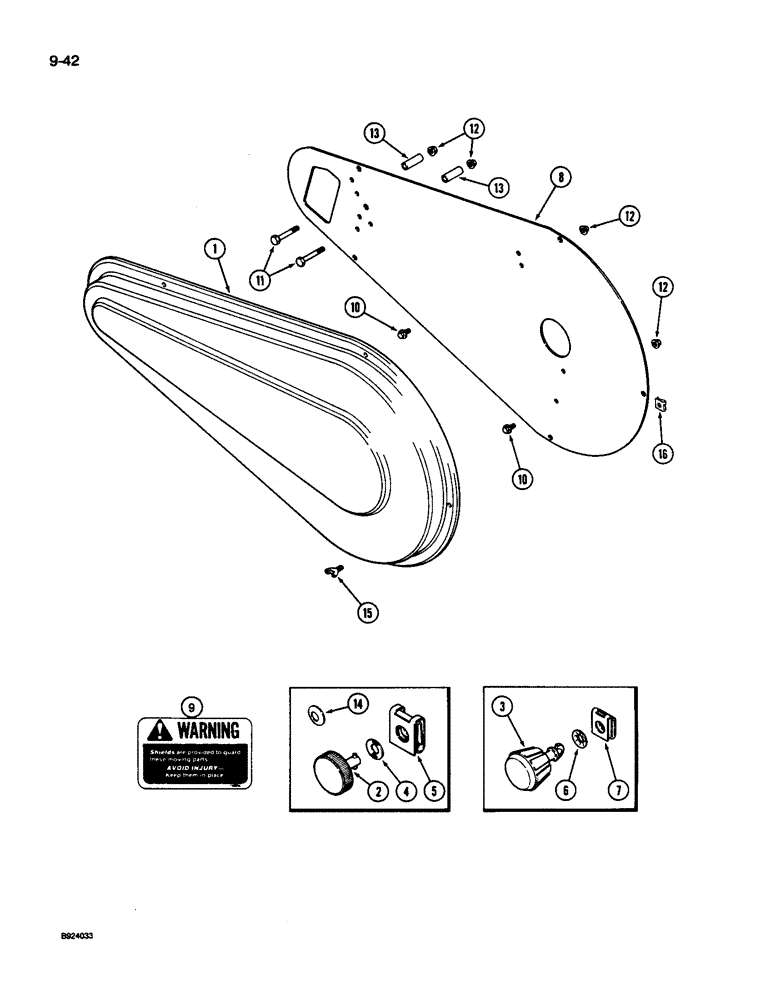

Запчасти Case IH 1010 (9-042) - REEL DRIVE SHIELD AND SUPPORTS (58) - ATTACHMENTS/HEADERS

1

1320413C1

SHIELD

- outer, reel drive

1шт.

2

1326332C1

STUD

KNOB - shield fastener (If equipped)

5шт.

3

1326599C1

KNOB

- shield fastener (If equipped)

5шт.

4

1316777C1

LOCKING RING

WASHER - shield (If equipped)

5шт.

5

1326331C1

NUT

RECEPTACLE - shield fastener (If equipped)

5шт.

6

1326600C1

SPECIAL WASHER

WASHER - shield fastener (If equipped)

5шт.

7

1326601C1

NUT

- shield fastener (If equipped)

5шт.

8

1316708C91

SHIELD

- inner, reel drive, includes decal, also shown on page 9-145, item 4

1шт.

9

ZA740950

DECAL

- Warning, shields are provided to guard these moving parts

1шт.

10

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- flanged hex, 3/8 NC x 3/4 inch

2шт.

11

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

2шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex, 3/8 inch NC

4шт.

13

221338H1

SPACER,10.3mm ID x 15.88mm OD x 50.8mm L

- 5/8 x 2 inch

2шт.

14

1326779C1

BELLEVILLE WASHER

- knob, pressure (If equipped)

5шт.

15

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

- thumb, 5/16 inch NC

5шт.

16

488837C1

SPRING NUT

- speed, 5/16 inch

5шт.
