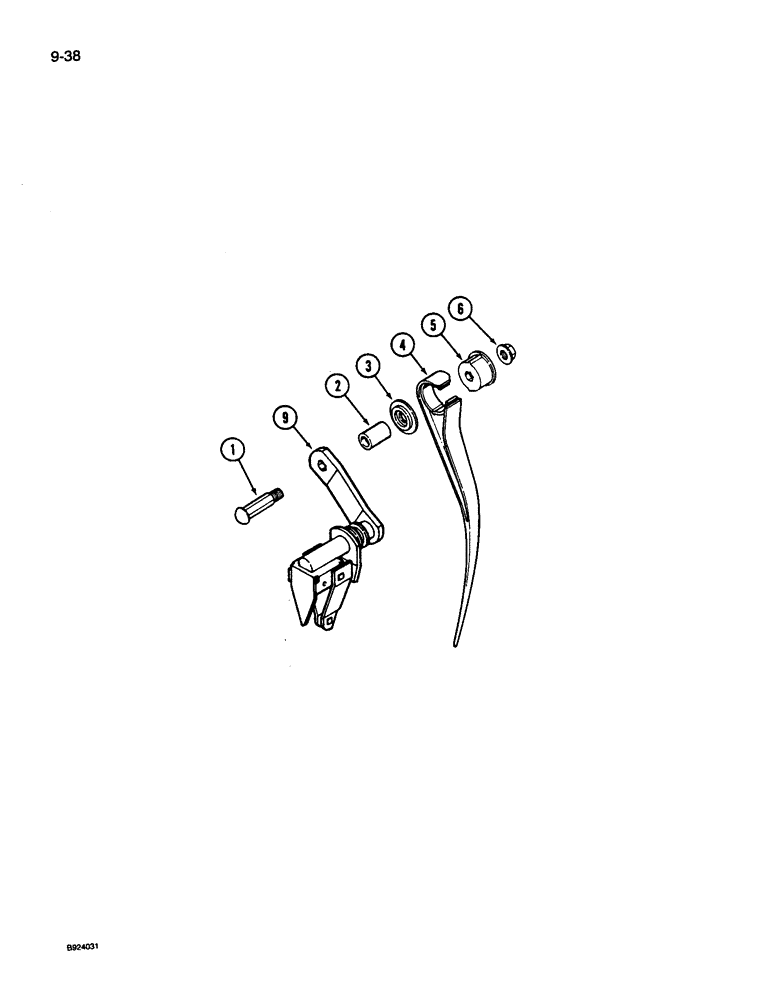

Запчасти Case IH 1010 (9-038) - AUXILIARY PICKUP TINE, 6 BAT REEL, PLASTIC TINES, HART CARTER (58) - ATTACHMENTS/HEADERS

1970589C1

REEL TINE

TINE ASSEMBLY - auxiliary pickup

1шт.

1

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

- round head hex shank, 1/2 NF x 2-1/2 inch

12шт.

2

598246R1

SPACER

- 9/16 ID x 1-1/4 inch

12шт.

3

1970591C1

RETAINER

- auxiliary tine

12шт.

4

1970590C1

TINE

- plastic, auxiliary

12шт.

5

1970592C1

SUPPORT

- auxiliary tine

12шт.

6

827386C1

FLANGE NUT

NUT - hex flange lock, 1/2 inch NF

12шт.

7

REF

INSTRUCTION

BRACKET - pivot, left (Shown) (See Figure 9-38)

6шт.

9

REF

INSTRUCTION

BRACKET - pivot, right (See Figure 9-38)

6шт.
