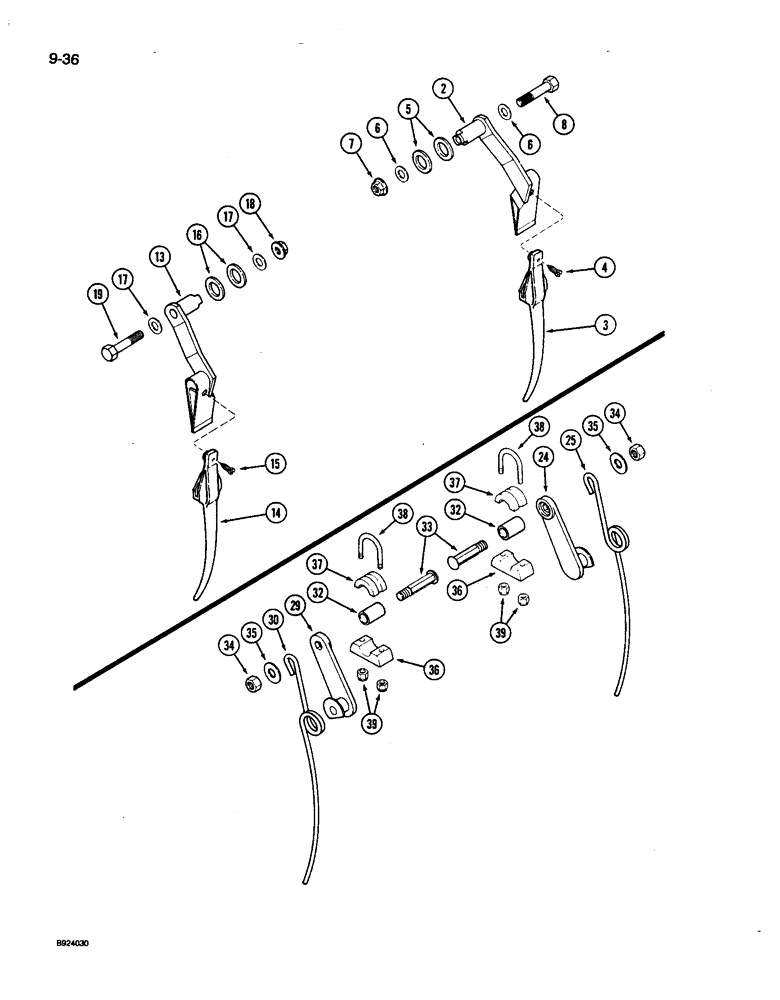

Запчасти Case IH 1010 (9-036) - AUXILIARY PICKUP TINE, 6 BAT REEL WITH PLASTIC TINES, J.E. LOVE (58) - ATTACHMENTS/HEADERS

1316199C91

KIT

- auxiliary pickup tine, left

6шт.

2

NSS

NOT SOLD SEPARAT

SUPPORT ASSEMBLY - left

1шт.

3

NSS

NOT SOLD SEPARAT

TINE - pickup

1шт.

Part of tine and screw kit P/N 1979845C1

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - hex slotted tapping

1шт.

Part of tine and screw kit P/N 1979845C1

1шт.

5

495-81055

WASHER,29/32" x 1 3/8" x .134"

- flat, 29/32 x 1-3/8 x 1/8 inch

2шт.

6

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

7

1313463C1

FLANGE NUT

NUT - hex small flange, 7/16 inch NC

1шт.

8

114-326

BOLT,Hex, 7/16" - 20 x 2-1/2", Gr 5

hex, 7/16 NF x 2-1/2 inch

1шт.

1316200C91

KIT

- auxiliary pickup tine, right

6шт.

13

NSS

NOT SOLD SEPARAT

SUPPORT ASSEMBLY - right

1шт.

14

NSS

NOT SOLD SEPARAT

TINE - pickup

1шт.

Part of tine and screw kit P/N 1979845C1

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - hex slotted tapping

1шт.

Part of tine and screw kit P/N 1979845C1

1шт.

16

495-81055

WASHER,29/32" x 1 3/8" x .134"

- flat, 29/32 x 1-3/8 x 1/8 inch

2шт.

17

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

18

1313463C1

FLANGE NUT

NUT - hex small flange, 7/16 inch NC

1шт.

19

114-326

BOLT,Hex, 7/16" - 20 x 2-1/2", Gr 5

- 7/16 NF x 2-1/2 inch

1шт.

1979845C1

KIT

- tine and screw, package of 10, Include: Ref. 3, 4, 14 and 15

1шт.

167605C91

TINE

ASSEMBLY - auxiliary pickup, left 6 BAT REEL WITH STEEL ( HART CARTER)

6шт.

24

592627R21

STRAP

ASSEMBLY - finger 6 BAT REEL WITH STEEL TINES ( HART CARTER)

1шт.

25

167652C1

TINE,Coiled, 1 Prong, 437mm L

- left 6 BAT REEL WITH STEEL ( HART CARTER)

1шт.

167606C91

TINE

ASSEMBLY - auxiliary pickup, right 6 BAT REEL WITH STEEL ( HART CARTER)

6шт.

29

592627R21

STRAP

ASSEMBLY - finger 6 BAT REEL WITH STEEL TINES ( HART CARTER)

1шт.

30

167651C1

TORSION SPRING

- right 6 BAT REEL WITH STEEL ( HART CARTER)

1шт.

32

598246R1

SPACER

BUSHING - 19/32 x 13/16 x 1-1/4 inch 6 BAT REEL WITH STEEL TINES ( HART CARTER)

12шт.

32

1316568C1

SPACER

BUSHING - tubing 6 BAT REEL WITH STEEL TINES ( HART CARTER)

12шт.

Use with 52 inch reel.

1шт.

33

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

- round head hex shank 6 BAT REEL WITH STEEL TINES ( HART CARTER)

12шт.

33

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6 Bat Reel with Steel Tines (Hart Carter) Hex, 1/2"-13 x 2", G5

12шт.

Use with 52 inch reel.

1шт.

34

9411648

LOCK NUT,1/2"-20, GC

NUT - prevailing torque lock, 1/2 inch NF 6 BAT REEL WITH STEEL TINES ( HART CARTER)

12шт.

35

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch 6 BAT REEL WITH STEEL TINES ( HART CARTER)

12шт.

35

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch 6 BAT REEL WITH STEEL TINES ( HART CARTER)

12шт.

Use with 52 inch reel.

1шт.

36

598234R1

BASE

- bearing 6 BAT REEL WITH STEEL TINES ( HART CARTER)

36шт.

Use with 52 inch reel.

1шт.

37

598235R1

BEARING CAP,1.025"

- bearing 6 BAT REEL WITH STEEL TINES ( HART CARTER)

36шт.

Use with 52 inch reel.

1шт.

38

598236R1

U-BOLT,U, 1/4" - 20

- bearing, 1/4 x 2 inch 6 BAT REEL WITH STEEL TINES ( HART CARTER)

36шт.

Use with 52 inch reel.

1шт.

39

26110R1

LOCK NUT,1/4"-20, GC

NUT - hex lock, 1/4 inch NC, Grade 8 6 BAT REEL WITH STEEL TINES ( HART CARTER)

72шт.

Use with 52 inch reel.

1шт.
