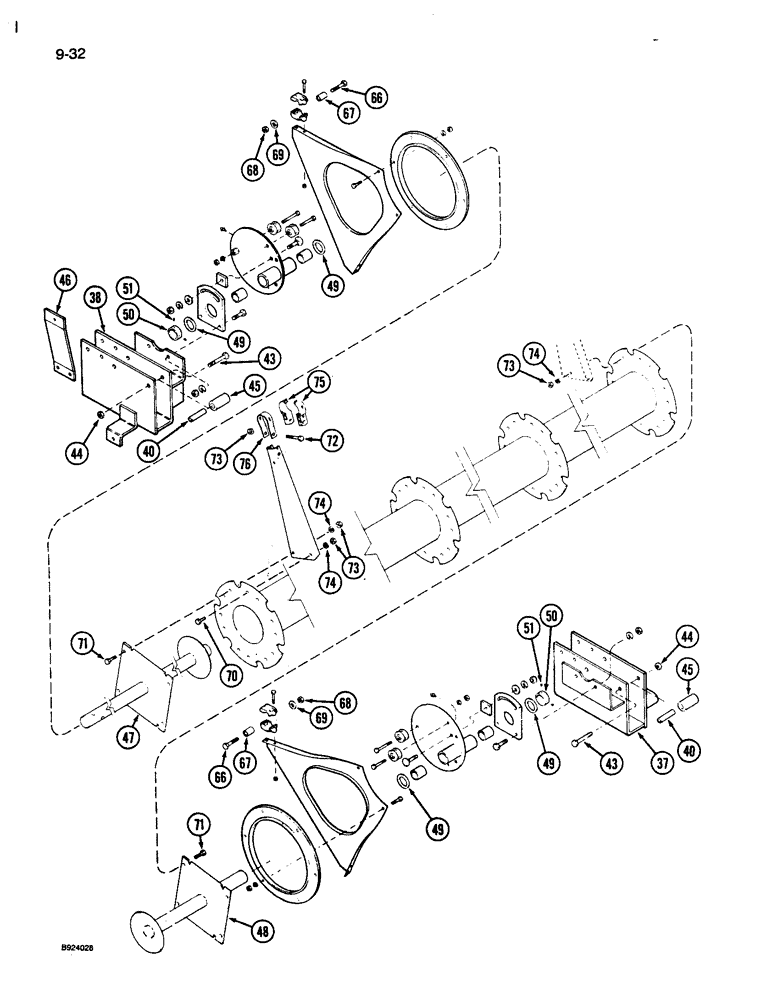

Запчасти Case IH 1010 (9-032) - 6 BAT REEL, DOUBLE ECCENTRIC, PLASTIC TINES, 20.0, 22.5, 30.0 FOOT HEADER, HART CARTER (58) - ATTACHMENTS/HEADERS

37

1326611C1

SUPPORT

- eccentric adjusting, left

1шт.

38

1326612C1

SUPPORT

- eccentric adjusting, right

1шт.

40

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

43

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

44

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque lock, 1/2 inch NC

4шт.

45

1316328C1

SHIFTER ROLLER

BUSHING - reel support

4шт.

46

1316465C1

BRACKET

- reel shield

1шт.

47

1989427C1

SHAFT

- driving end (20.0 foot)

1шт.

47

1989428C1

SHAFT

- driving end( 22.5, 25.0 and 30.0 foot)

1шт.

48

1989424C1

SHAFT

- driven end (20.0 foot)

1шт.

48

1989425C1

SHAFT

- driven end (22.5, 25.0 and 30.0 foot)

1шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/23 x 2-1/4 x 7/64 inch

4шт.

50

180400C91

COLLAR

- with set screw

2шт.

51

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

SCREW - set, hex socket headless cup point, 3/8 NF x 5/16 inch

4шт.

66

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

12шт.

67

1316568C1

SPACER

BUSHING - reel support

12шт.

68

9413967

LOCK NUT,1/2"-13, GB

NUT - hex lock, 1/2 inch NC

12шт.

69

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 3/64 inch

12шт.

70

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

71

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

8шт.

72

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

73

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, Grade 10

1шт.

74

892-11010

LOCK WASHER,M10

1шт.

75

1347084C1

CLAMP,50.8 mm ID x 25.4 mm

BEARING - reel arm

1шт.

76

1347085C1

STRAP

- bearing

1шт.
